600PLUS with ALTIBN coating - Economy Series
Product Number：P-SE
█Feature: ①Speed Tiger End Mills Type: Square, Ball Nose, Corner Radius, Miniature, Long Flute, Long Neck, Long Shank, Taper Flute, Pencil Neck, Finishing, Roughing...②HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide that is very tough, resists wear and offers high cutting performance ③HIGH-QUALITY - Flutes ground by a world-class ISO-9001 Factory; Great performance at a competitive price
█Application: GENERAL APPLICATION CUTTER - Speed Tiger 600PLUS carbide tools excel at working carbon steels (~HB225), alloy steels (HB225~325), pre-hardened steels (up to HRC45), hardened Steels (HRC40~45), cast iron.
-
Features

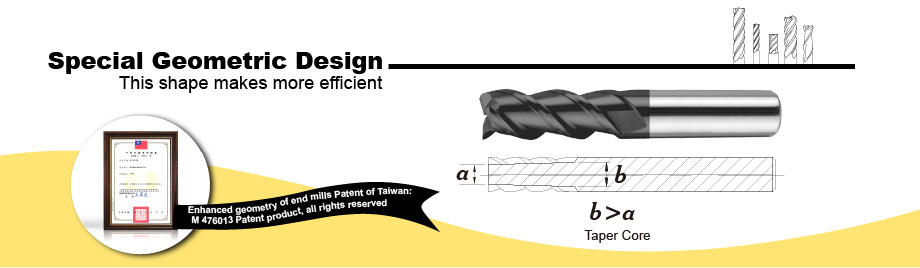

Special Geometric Design - This shape makes more efficient (Taper Core)
Enhanced geometry of end mills Patent of Taiwan: M 476013 Patent product, all rights reserved

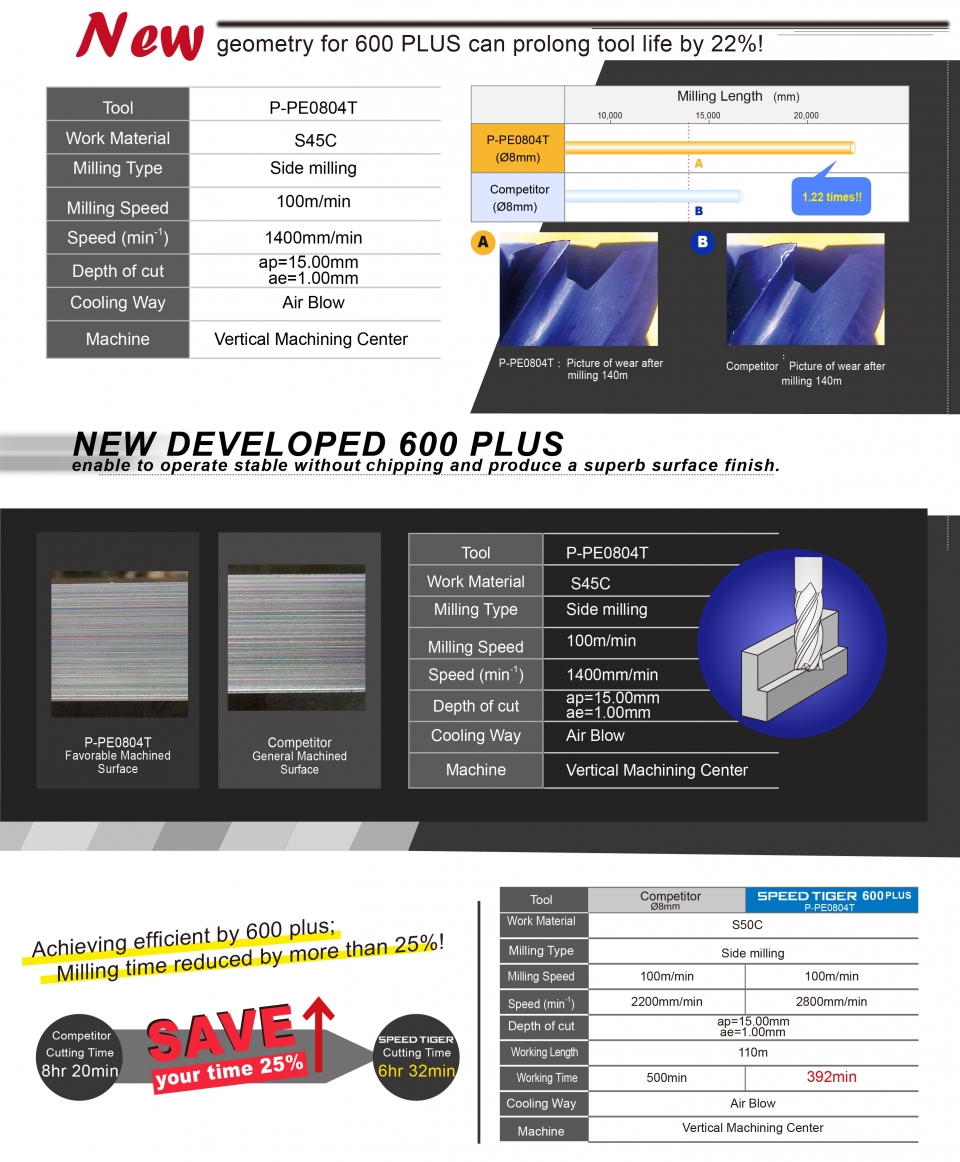

- New geometry for 600 Plus can prolong tool life by 22% !
- The new developed 600 Plus enable to operate stable without chipping and produce a superb surface finish.
- Achieving efficient by 600 Plus | Milling time reduced by more than 25%!
-
ALTIBN Coating
Coating Structural Analysis-SEM
Normal Temperature Mechanical Analysis
In normal temperature mechanical analysis,the performance of AlTiBN is superior to AlTiN in hardness, wear rate and coating roughness.Hardness (Hv) Impact of Diameter Lc2-Lc1 Wear Rate Roughness (µm) AlTiN 3672 305(um) 8.28N 6.49x10-6 0.233 AlTiBN 4088 280.9(um) 17.6N 5.11x10-6 0.166
The Oxidation Wear of 700°C
Fiction Coefficient Wear Distance Wear rate TiN 0.5662 316.3 6.4x10-6 TiBN 0.5664 281.2 5.69x10-6 AlTiN 0.6402 281.4 4.97x10-6 Multi-TiN 0.686 277.4 4.82x10-6 ALTIBN 0.618 281.8 4.66x10-6 Mult-ALTiN 0.7014 290.1 5.5x10-6
Tool Life Comparison and Cutting Edges
Milling Type Side Milling Feed Rate 1082mm/min Work Piece S45C Depth of Cut ap=20 ae=1.2 Tool Size 10mm x 30 x 75L Coolant Way Air Rotation Speed 3183 rpm CNC Machine CNC YCM FV102A -
Type Mode Flutes Diameter Photo Dimension Cutting Condition Miniature Square P-MIE 2 0.2mm~3mm

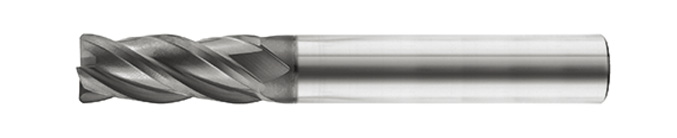

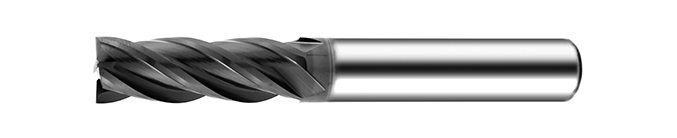

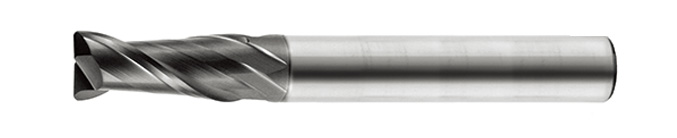

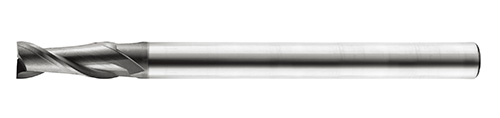

Download Square (35°) P-SSE,P-MSE,P-SE 2 / 4 1mm~20mm
2Flutes-Download

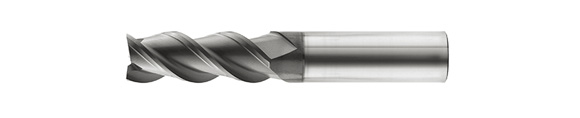

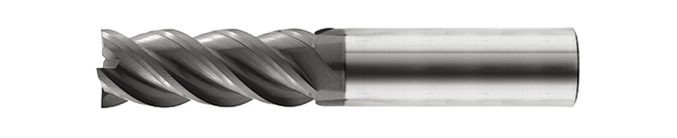

4Flutes-DownloadDownload Square (45°) P-MPE,P-PE 3 / 4 1mm~20mm
3Flutes-Download

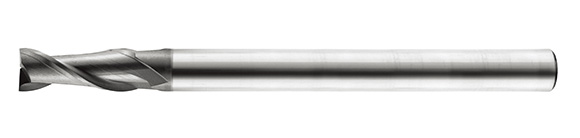

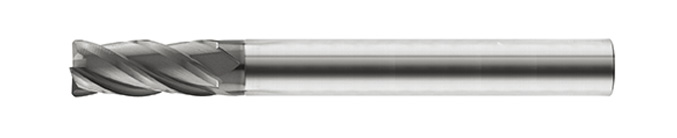

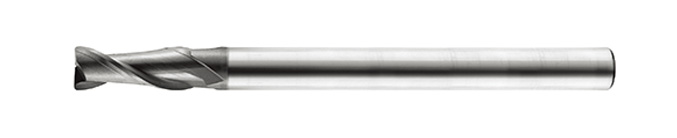

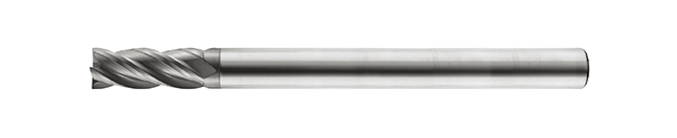

4Flutes-DownloadDownload Long Shank Square P-SLE, P-MLE 2/4 6mm~12mm
2Flutes-Download

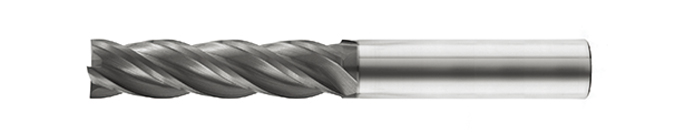

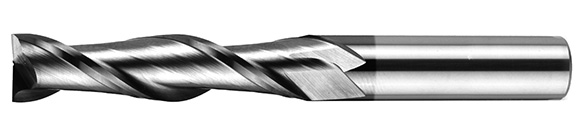

4Flutes-DownloadDownload Long Flute Square P-LET 2/4 1mm~20mm
2Flutes-Download

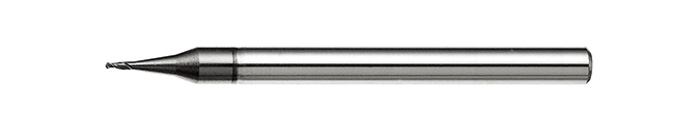

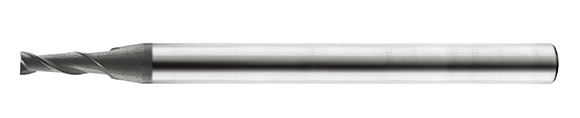

4Flutes-DownloadDownload Long Neck Square P-LNT 2 0.5mm~4mm

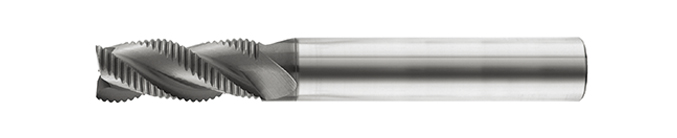

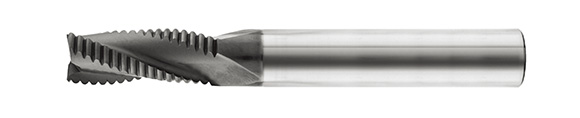

Download Download Roughing Square P-NTA 3/4 4mm~20mm
3Flutes-Download

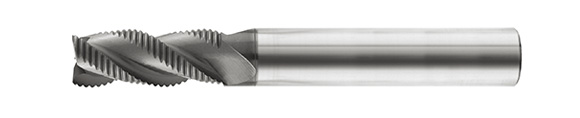

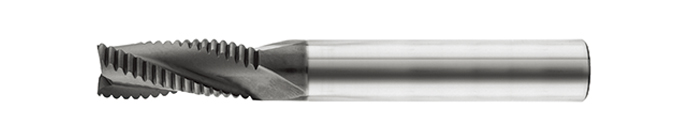

4Flutes-DownloadDownload Roughing Square P-XTA 3/4 4mm~20mm
3Flutes-Download

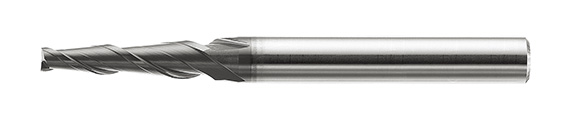

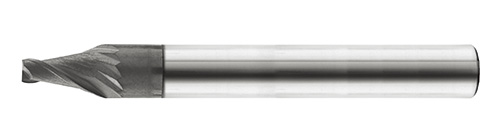

4Flutes-DownloadDownload Taper Square P-TTA 2 0.5mm~10mm
Download Download Taper Long Flute Square P-LTTA 2 1mm~6mm
Download Download Miniature Ball Nose P-MIB 2 0.15R~3R

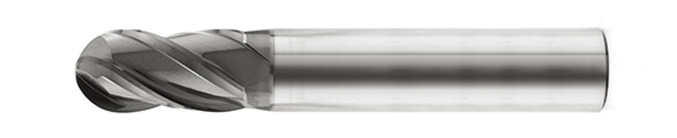

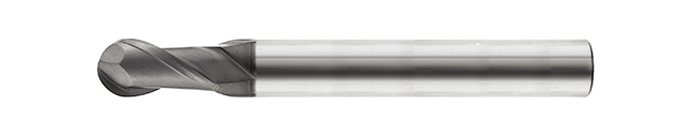

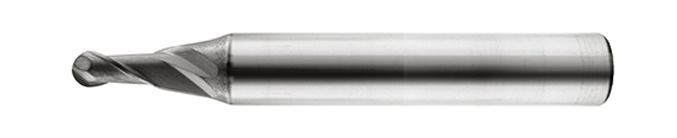

Download Download Ball Nose P-SSB,P-MSB,P-SB 2 /4 0.5R~10R
2Flutes-Download

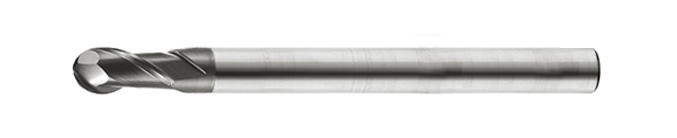

4Flutes-DownloadDownload Long Shank Ball Nose P-SL,P-MLB,P-LLB,P-XLB 2 0.5R~8R

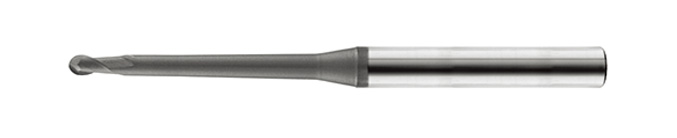

Download Download Long Neck Ball Nose P-LNBT 2 0.25R~2R
Download Download Pencil Neck Ball Nose P-PBTA 2 0.5R~4R

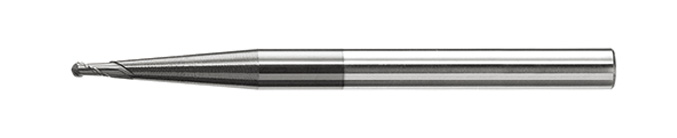

Download Download Taper Ball Nose P-TBTA 2 0.5R~1.5R
Download Download Corner Radius P-RTA 2 /4 1mm~12mm
2Flutes-Download
4Flutes-DownloadDownload Long Shank Corner Radius P-LRTA 2 /4 3mm~12mm
2Flutes-Download
4Flutes-DownloadDownload -
-
