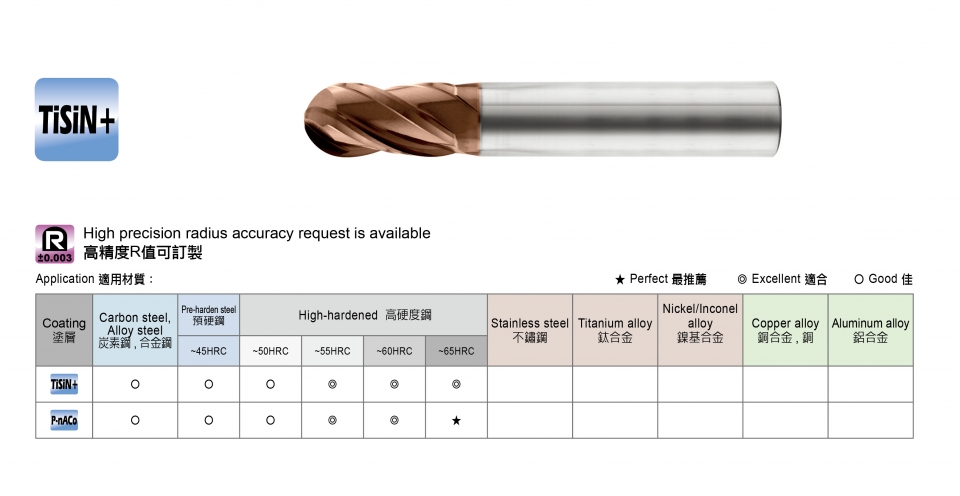

High Precision Radius Accuracy Ball Nose End Mill - 4 Flutes - P-SFUBT
Product Number：P-SFUBT
█Features: ①High Performance for High Hardness Exotic Materials ②Unequal flute spacing and unequal lead design have excellent and long effect of anti-vibration during milling. ③Super Ultra Fine Micro Grain Carbide raw material with the most suitable flute geometry ensure to improve chip disposal and rigidity. ④It's much easier to have finishing procedure on Hardened steel compare to general endmills. █Application: ~HRC65/ Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel,Welding Steel
-
200 PLUS Nano End Mills Series General Application
Application: ~HRC65/ Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel,Welding Steel
Main Feature: Super Ultra Fine Micro Grain Carbide that has high toughness, coating TiSiN and wear-resisting, non-general titanium aluminium is specialized in milling on M/C high hardness at a high speed and can carry on rough machining get to detailed process directly for heat treatment mould to reduce change times, improve machine flexible rate and shorten producing time.
Features
• Unequal flute spacing and unequal lead design have excellent and long effect of anti-vibration during milling.
Characteristic：
Excellent anti-vibration effect
• Super Ultra Fine Micro Grain Carbide raw material with the most suitable flute geometry ensure to improve chip disposal and rigidity.
Long tool life
• With Super Ultra Fine Micro Grain Carbide raw material which has high temperature resistance and with P-nACo coating that can extend tool life.
• It's much easier to have finishing procedure on Hardened steel compare to general endmills.
200PLUS Ball nose & Corner radius type - surface and angle
• R angle:0~90˚ Negative angle design
• Specular surface
200PLUS square type - surface
• OD specular surface
• Cutting edge specular surface
Comparison
Series Grain Size Hardness (HRC) Coating Application 200 Nano 0.2μm ~65 TiSiN Super Hard Hardness 400 Nano 0.4μm ~60 nBS High Hardness 600 Nano 0.6μm ~50 AlTiN General Package & Shipping
Delivery :
Generally， it is 5-7 days if the goods are in stock.
It is 15-20 days if the goods are not in stock, it is according to quantity.
