600PLUS with TiSiN coating - Economy Series
Product Number：P-MIE,P-SSE/MSE/SE, P-MPE/PE, P-SLE/MLE, P-LET, P-LNT, P-NTA, P-XTA, P-TTA, P-LTTA, P-MIB, P-SSB/MSB/SB, P-SBL/MLB/LLB/X
█Feature: ①HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide that is very tough, resists wear and offers high cutting performance ②TISIN coating achieves extraordinary heat resistance and hardness because it's a new composite layer, consisting of nano-crystal material (Oxidizing temperature：1100℃, Layer hardness: HV 3600). Also achieves extraordinary performance in high-speed cutting and high efficient machining of hardened steel. ③HIGH-QUALITY - Flutes ground by a world-class ISO-9001 Factory; Great performance at a competitive price
█Application: GENERAL APPLICATION CUTTER - Speed Tiger 600PLUS carbide tools excel at working carbon steels (~HB225), alloy steels (HB225~325), pre-hardened steels (up to HRC45), hardened Steels (HRC40~45), cast iron
-
Features

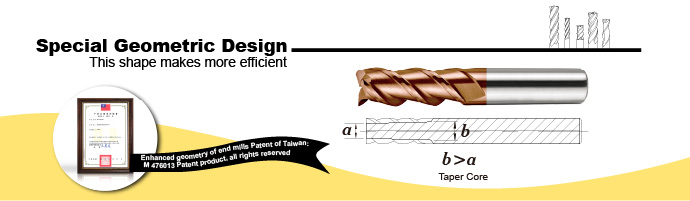

Special Geometric Design - This shape makes more efficient (Taper Core)
Enhanced geometry of end mills Patent of Taiwan: M 476013 Patent product, all rights reserved

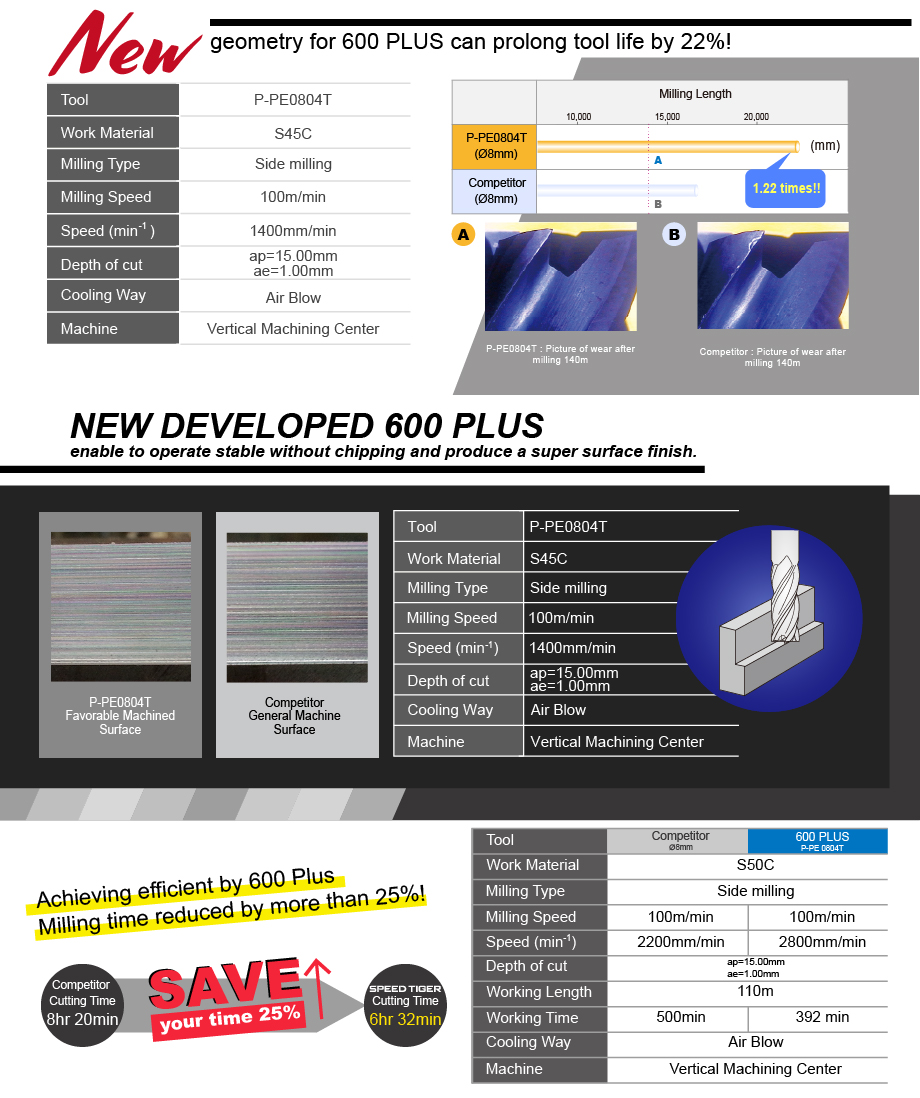

- New geometry for 600 Plus can prolong tool life by 22% !
- The new developed 600 Plus enable to operate stable without chipping and produce a superb surface finish.
- Achieving efficient by 600 Plus | Milling time reduced by more than 25%!
-
TiSiN Coating
New Nano-composite coating material achieves extraordinary heat resistance and hardness. This is attained due to the new composite layer, consisting of nano-crystal material (Oxidizing temperature：1100℃, Layer hardness：HV 3600).
Achieves extraordinary performance in high-speed cutting, and high efficient machining of hardened steel, machining efficiency is more than twice as effective as other manufacturers solid carbide end mills.
Ensuring long life and reliability in hardened steel applications HRC45~55 material examples：1.2080, 1.2344, and 1.2379, ASP Power Steels, High Speed Steels.
The coating generates less heat during cutting; therefore it is well suited to dry machining conditions.
Newly developed TiSiN Coating has excellent oxidation-resistant properties, this achieves：
High speed cutting of hard steels = High Efficiency
Improvement in tool life = Lower tooling costs The newly designed flute geometry increases rigidity, with the improved high radius accuracy producing higher tolerance, and smoother surface finish.
Direct Milling of hardened steel is now possible = Faster production times. -

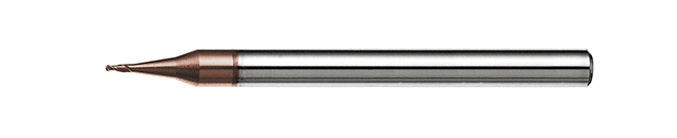

Type Mode Flutes Diameter Photo Dimension Cutting Condition Miniature Square P-MIE 2 0.2mm~3mm

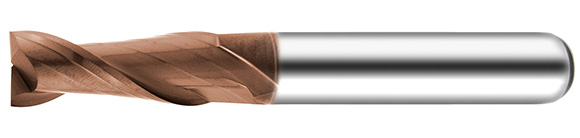

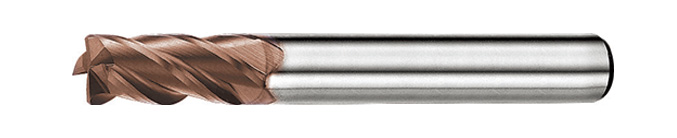

Download Square (35°) P-SSE,P-MSE,P-SE 2 / 4 1mm~20mm
2Flutes-Download

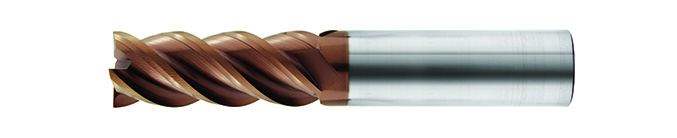

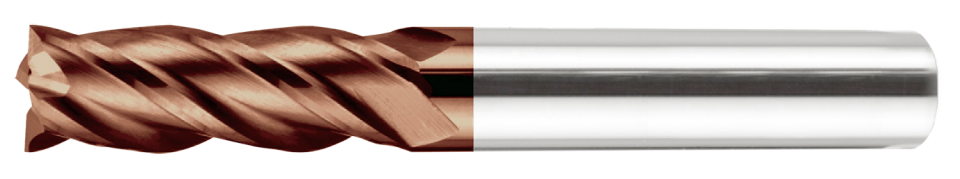

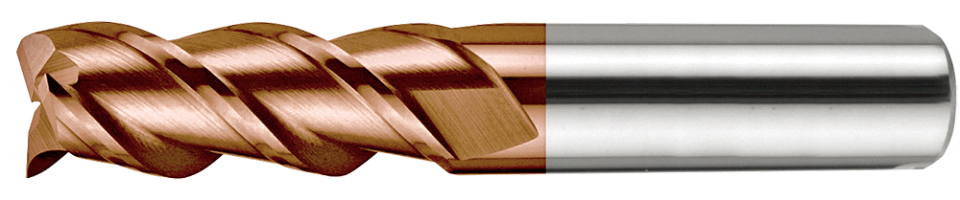

4Flutes-DownloadDownload Square (45°) P-MPE,P-PE 3 / 4 1mm~20mm
3Flutes-Download
4Flutes-DownloadDownload Long Shank Square P-SLE, P-MLE 2/4 6mm~12mm
2Flutes-Download

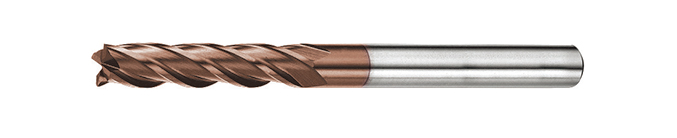

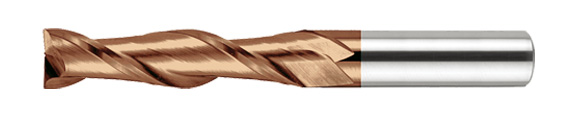

4Flutes-DownloadDownload Long Flute Square P-LET 2/4 1mm~20mm
2Flutes-Download

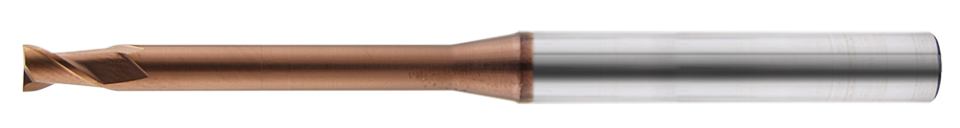

4Flutes-DownloadDownload Long Neck Square P-LNT 2 0.5mm~4mm

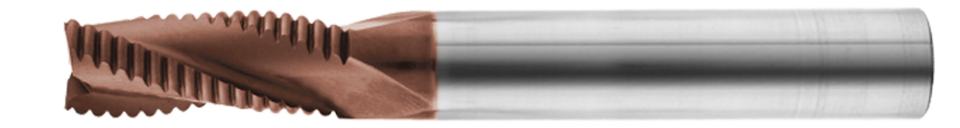

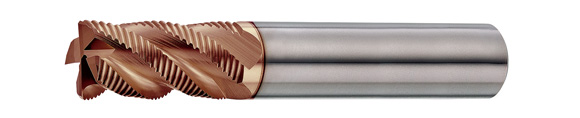

Download Download Roughing Square P-NTA 3/4 4mm~20mm
3Flutes-Download

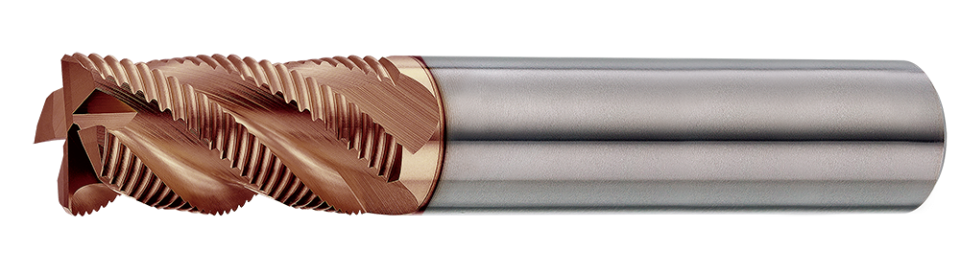

4Flutes-DownloadDownload Roughing Square P-XTA 3/4 4mm~20mm
3Flutes-Download

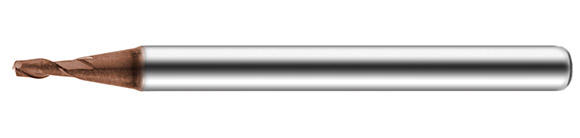

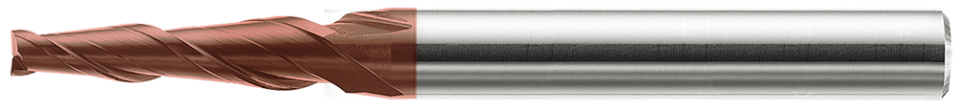

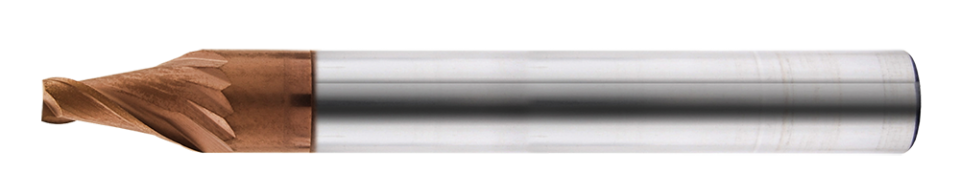

4Flutes-DownloadDownload Taper Square P-TTA 2 0.5mm~10mm
Download Download Taper Long Flute Square P-LTTA 2 1mm~6mm
Download Download Miniature Ball Nose P-MIB 2 0.15R~3R

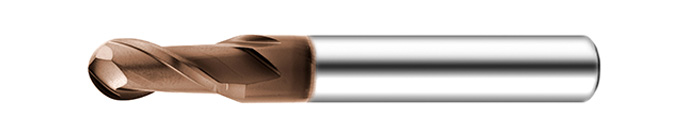

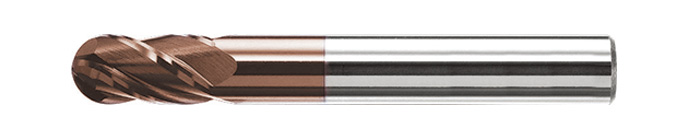

Download Download Ball Nose P-SSB,P-MSB,P-SB 2 /4 0.5R~10R
2Flutes-Download

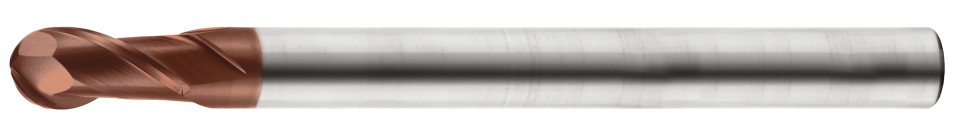

4Flutes-DownloadDownload Long Shank Ball Nose P-SL,P-MLB,P-LLB,P-XLB 2 0.5R~8R

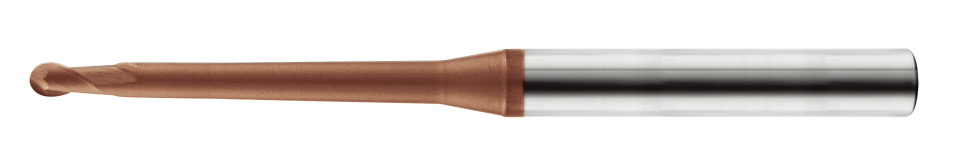

Download Download Long Neck Ball Nose P-LNBT 2 0.25R~2R

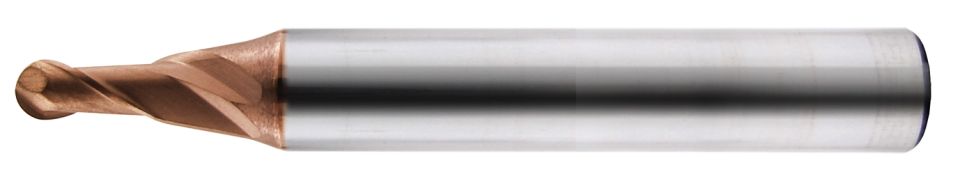

Download Download Pencil Neck Ball Nose P-PBTA 2 0.5R~4R
Download Download Taper Ball Nose P-TBTA 2 0.5R~1.5R
Download Download Corner Radius P-RTA 2 /4 1mm~12mm
2Flutes-Download
4Flutes-DownloadDownload Long Shank Corner Radius P-LRTA 2 /4 3mm~12mm
2Flutes-Download
4Flutes-DownloadDownload -
-
