PRODUCTS
FHP+ Series - Heavy Duty
Product Number：FHPC, FHPMC, FHPLC, CRFHPC Heavy Duty Plus End Mills Series
█Features: ①The unique tool design reduces vibration at high load applications.②The tool produces short and long chips simultaneously. This chip mixture is evacuated more easily than each individual chip type an excellent solution in slotting and cavity milling applications.③A single tool replaces the roughing and finishing endmills, dramatically reducing cycle time and increasing productivity.④Excellent performance in machining titanium, Inconel, stainless steel and high temperature alloys. █Application: ~HRC60/ Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel
-
Features
FHP+ Series - Heavy Duty Plus End Mills Series
Application: ~HRC60/ Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel

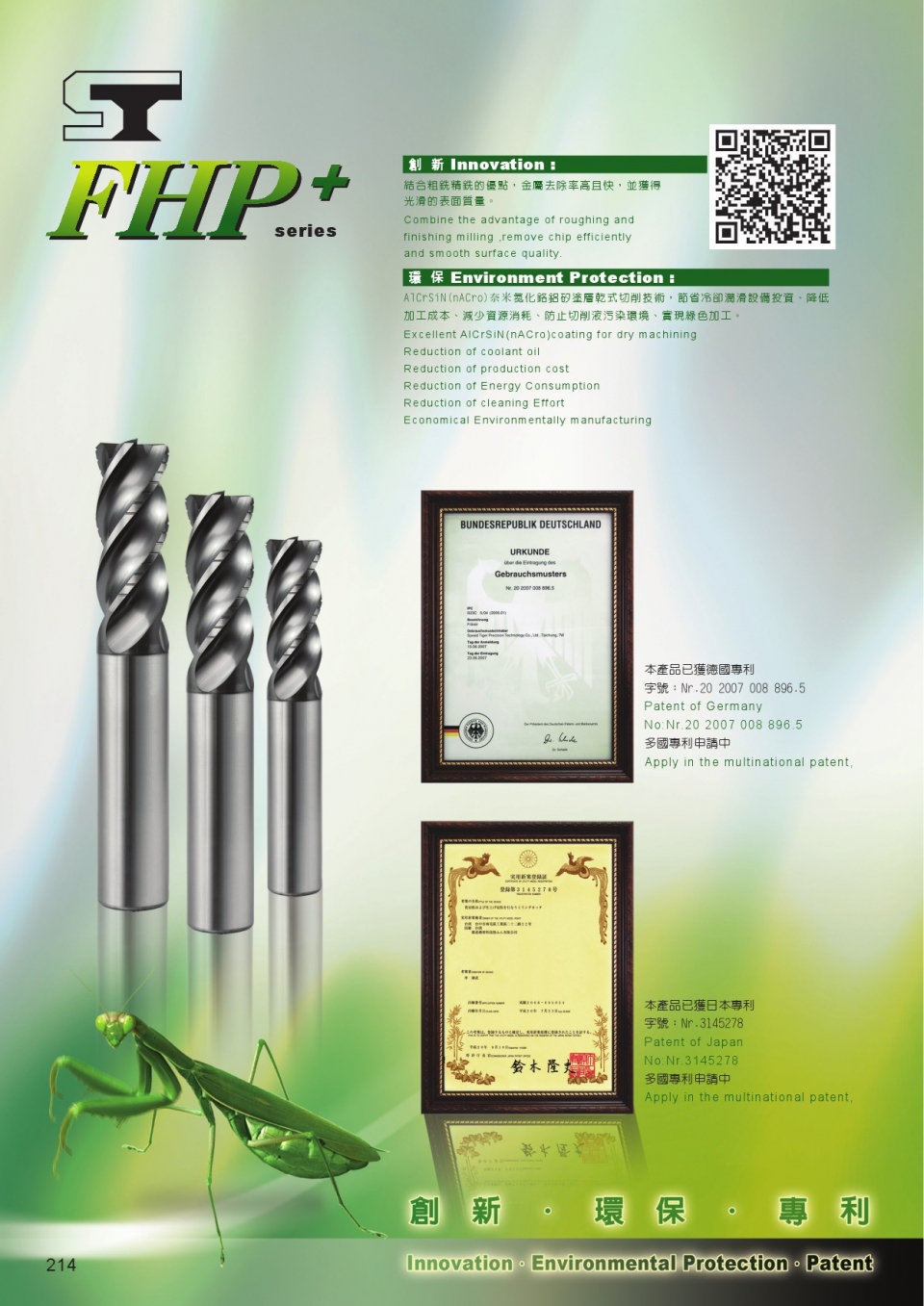

Innovation :
Combine the advantage of roughing and finishing milling , remove chip efficiently and smooth surface quality.
Environment Protection :- Excellent AlCrSiN(nACro) coating for dry machining
- Reduction of coolant oil
- Reduction of production cost
- Reduction of Energy Consumption
- Reduction of cleaning Effort
- Economical Environmentally manufacturing

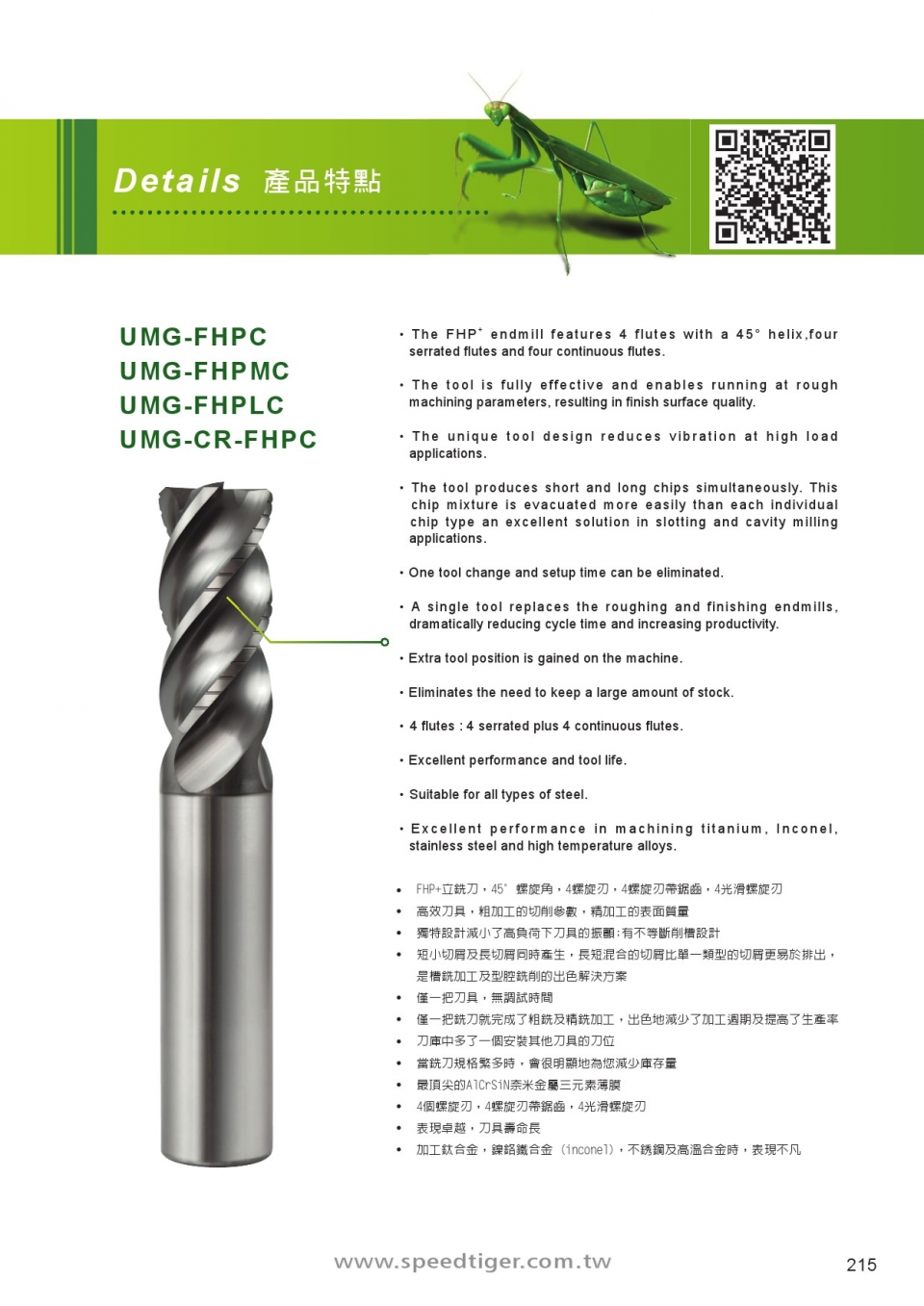

PRODUCT DETAILS ：
UMG-FHPC
UMG-FHPMC
UMG-FHPLC
UMG-CR-FHPC- The tool produces short and long chips simultaneously. This chip mixture is evacuated more easily than each individual chip type an excellent solution in slotting and cavity milling applications.

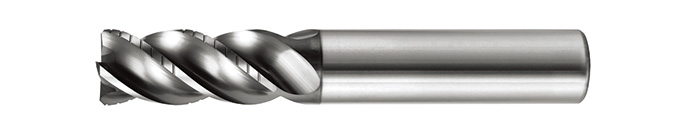

- The FHP+ endmill features 4 flutes with a 45° helix,four serrated flutes and four continuous flutes.
- A single tool replaces the roughing and finishing endmills, dramatically reducing cycle time and increasing productivity.
- The tool is fully effective and enables running at rough machining parameters, resulting in finish surface quality.
- The unique tool design reduces vibration at high load applications.
- One tool change and setup time can be eliminated.
- Excellent performance in machining titanium, Inconel, stainless steel and high temperature alloys
- Eliminates the need to keep a large amount of stock.
- 4 flutes : 4 serrated plus 4 continuous flutes.
- Extra tool position is gained on the machine.
- Excellent performance and tool life.
Anti-Vibration Design- Unequal Helix Angle
- Unequal Flute Spacing
-
-
-
