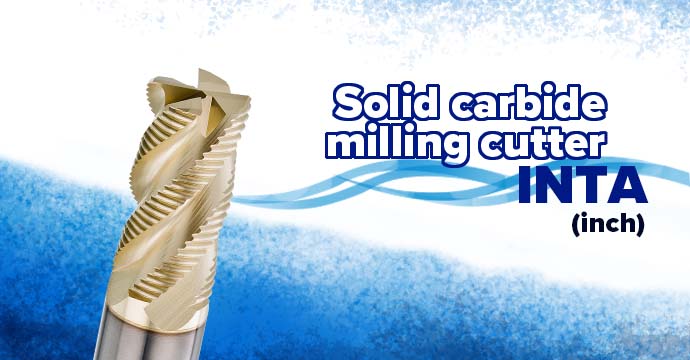

INTA Roughing End Mill - 4 Flutes

Product Number:INTA
█Features: ①HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide that is very tough, resists wear and offers high cutting performance. ②ZrN-A COATING - Zirconium nitride (ZrN) +Titanium aluminum boron nitride (AlTiBN) coating lubricates the end mill for stability at high temperature and superior wear resistance at high cutting speeds, offering better heat resistance than TiAlN, TiN or TiCN coatings. ③ HIGH-QUALITY - Flutes ground by a world-class ISO-9001 Factory; Great performance at a competitive price. █Application: GENERAL APPLICATION CUTTER - Speed Tiger 600 Nano carbide tools excel at working carbon steels (~HB225), alloy steels (HB225~325), pre-hardened steels (up to HRC45), hardened Steels (HRC40~45), cast iron.
  • Features

    INTA_feature



    Customer Reviews
    評論_INTA

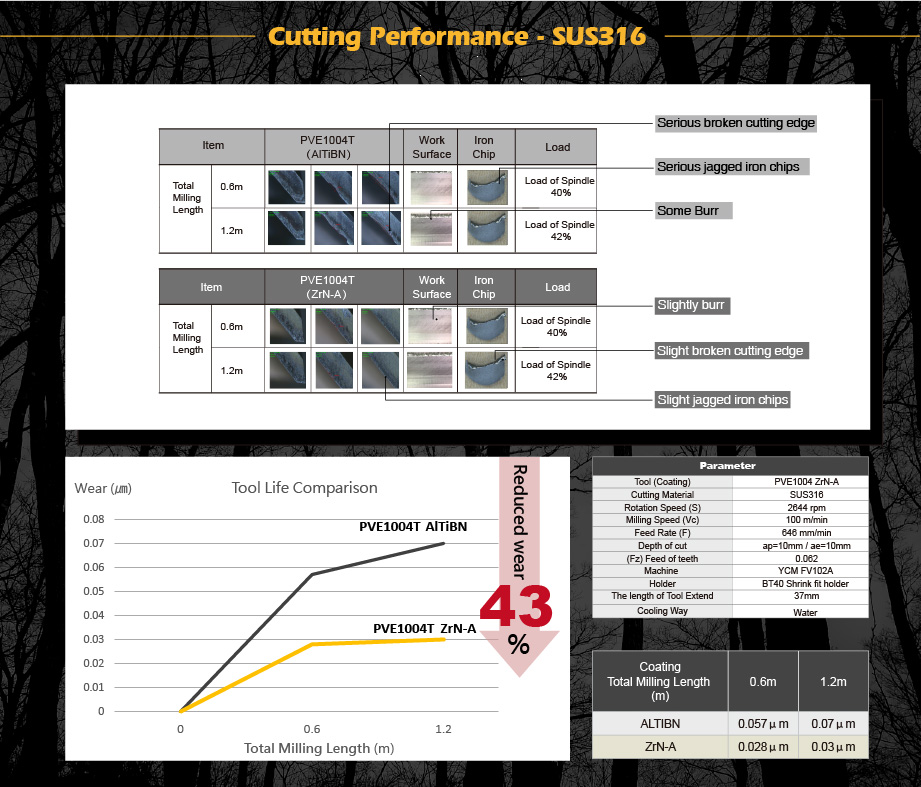

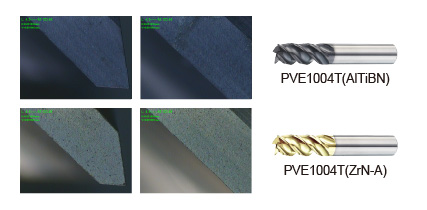

  • ZrN-A Coating


    coating 0428_ZrN-A
  • Series Catalogue Download

    MODE Diameter Flute
    Length
    Full
    Length
    Shank
    Diameter
    Flutes Specification
    Download
    INTA1/4"4 ZrN-A 1/4'' 3/4'' 2-1/2'' 1/4'' 4 Download

    Cutting
    Condition
    Download
    INTA5/16"4 ZrN-A 5/16'' 13/16'' 2-1/2'' 5/16'' 4
    INTA3/8"4 ZrN-A 3/8'' 7/8'' 2-1/2'' 3/8'' 4
    INTA1/2"4 ZrN-A 1/2'' 1'' 3'' 1/2'' 4
    INTA5/8"4 ZrN-A 5/8'' 1-1/4'' 3-1/2'' 5/8'' 4
