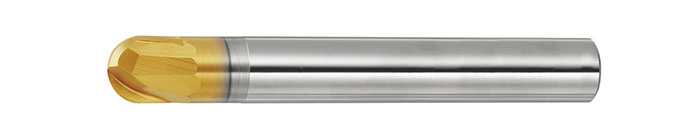

KTG Ball Nose End Mill - 2 Flutes

SH - Super High Hardness & Super High Speed Cutting End Mills Series
Application:  ~HRC60/ Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel

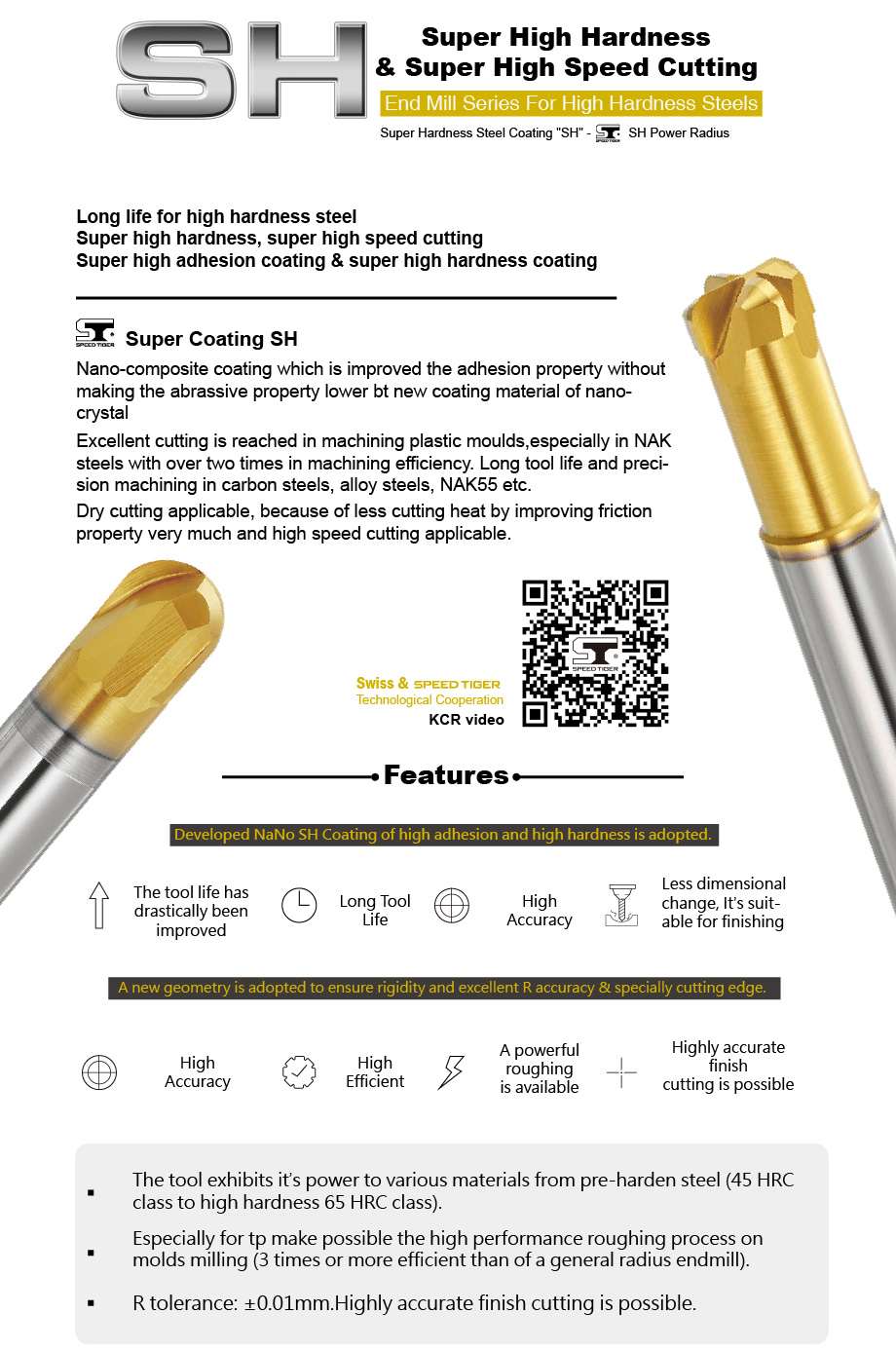

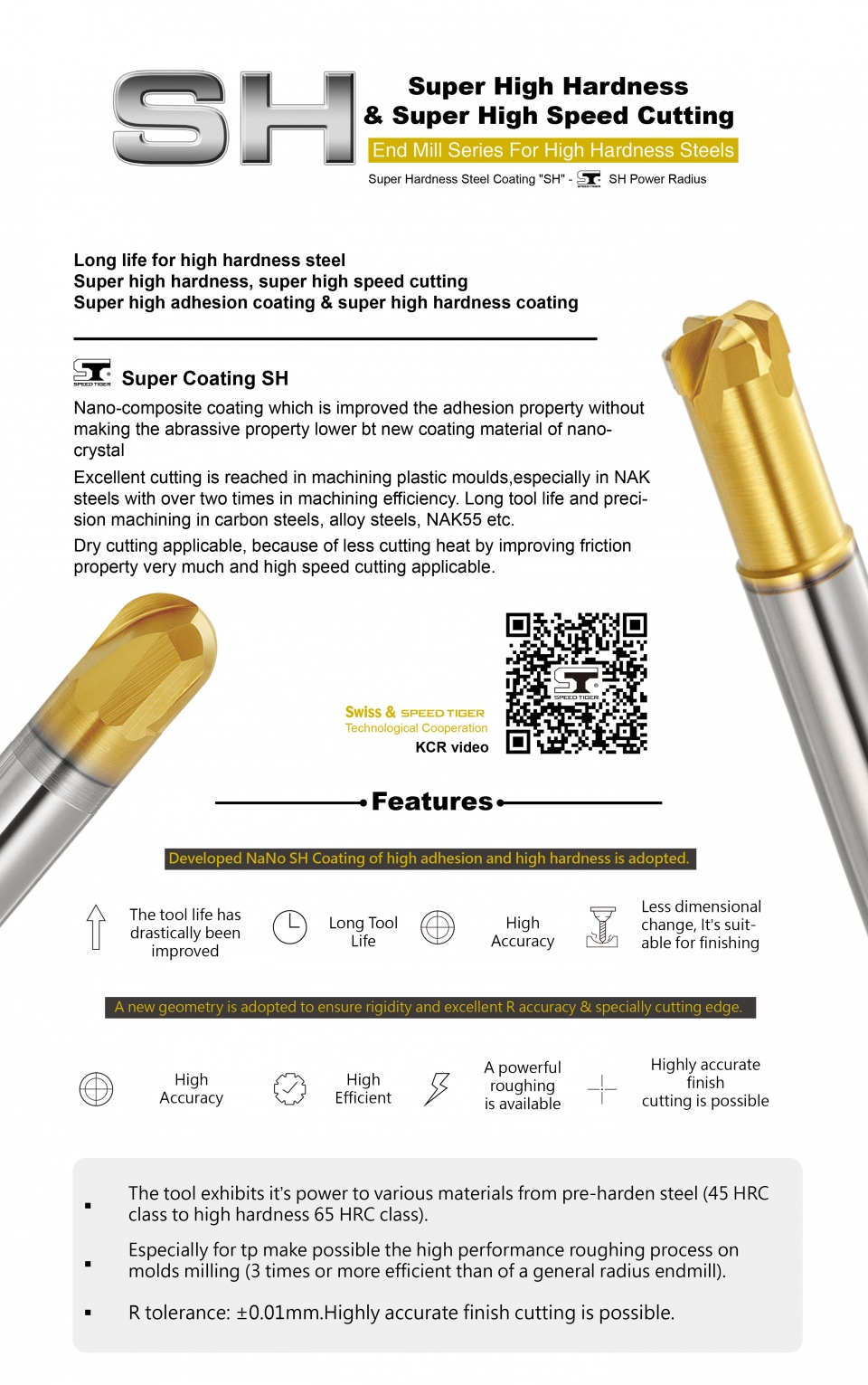

Features

• Long life for high hardness steel
• Super high hardness, super high speed cutting
• Super high adhesion coating & super high hardness coating

Super Coating SH
Nano-composite coating which is improved the adhesion property without making the abrassive property lower bt new coating material of nano-
crystal

Excellent cutting is reached in machining plastic moulds,especially in NAK steels with over two times in machining efficiency. Long tool life and precision machining in carbon steels, alloy steels, NAK55 etc.

Dry cutting applicable, because of less cutting heat by improving friction property very much and high speed cutting applicable.

Features

Developed NaNo SH Coating of high adhesion and high hardness is adopted.

• The tool life has drastically been improved
• Long Tool Life
• High Accuracy
• Less dimensional change, It’s suitable for finishing

A new geometry is adopted to ensure rigidity and excellent R accuracy & specially cutting edge.

• High Accuracy
• High Efficient
• A powerful roughing is available
• Highly accurate finish cutting is possible

1. The tool exhibits it's power to various materials from pre-harden steel (45 HRC class to high hardness 65 HRC class).
2. Especially for tp make possible the high performance roughing process on molds milling (3 times or more efficient than of a general radius endmill).
3. R tolerance: ±0.01mm.Highly accurate finish cutting is possible.

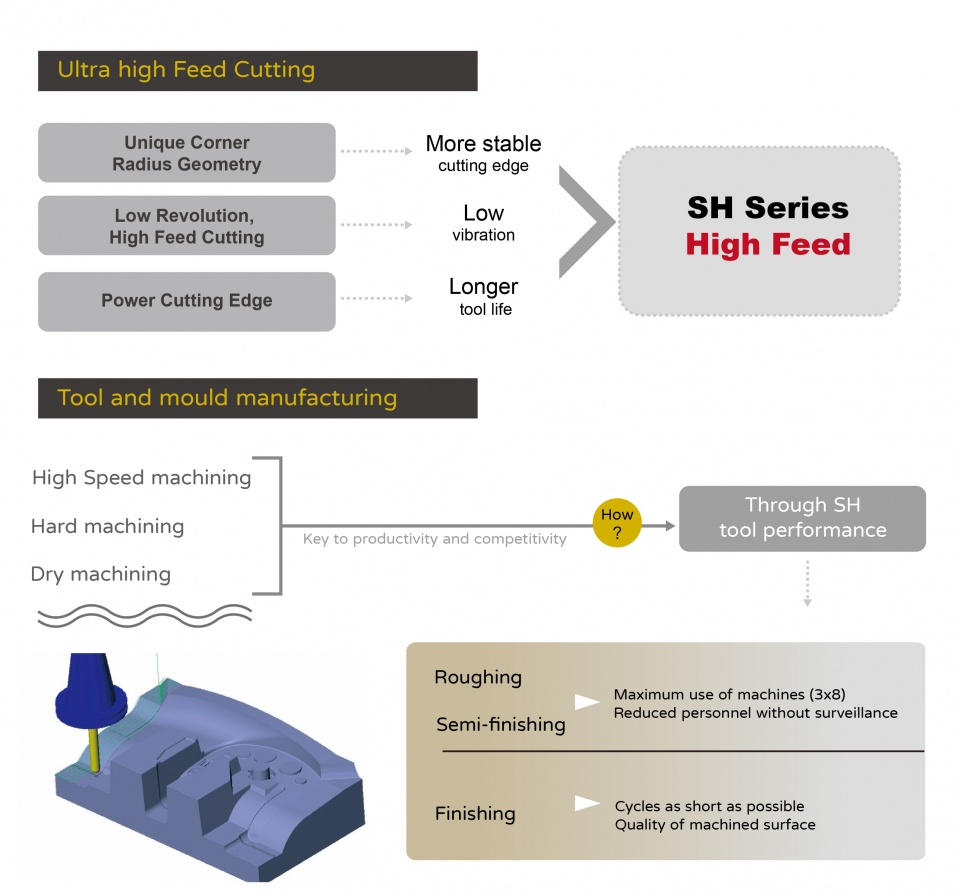

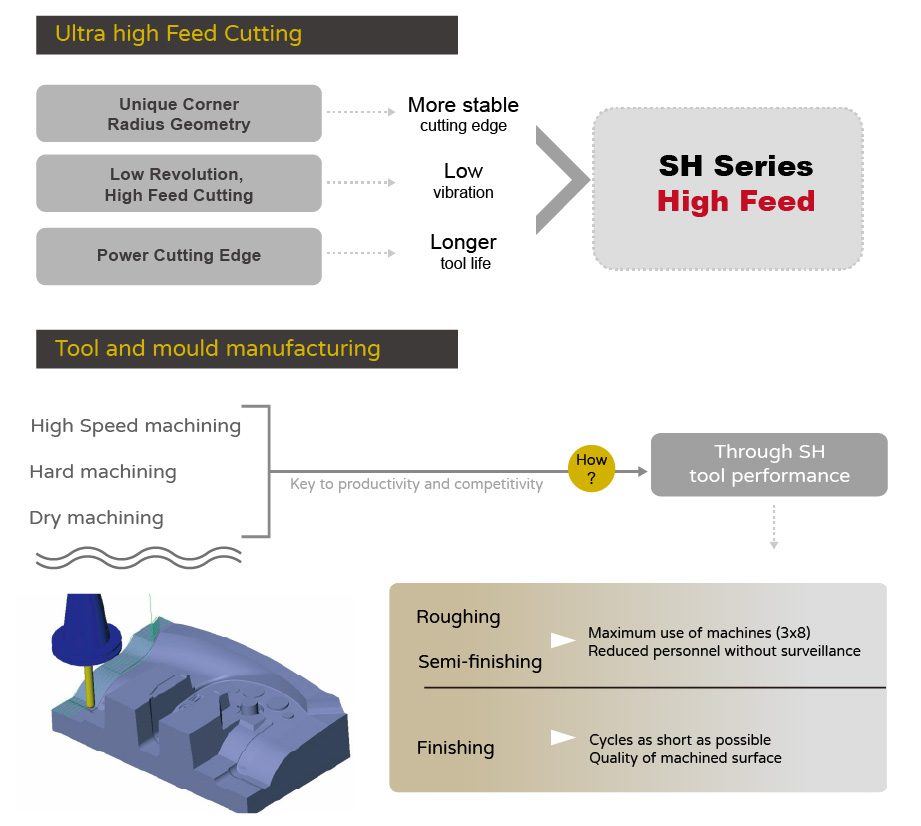

Ultra high feed cutting

• Unique corner radius geometry -> More stable cutting edge
• Low Revolution, High Feed Cutting -> Low vibration
• Power Cutting Edge -> Longer tool life

Tool and mould manufacturing
Through SH tool performance :

• High Speed machining
• Hard machining
• Dry machining

Roughing / Semi-finishing
Maximum use of machines (3x8)
Reduced personnel without surveillance

Finishing
Cycles as short as possible
Quality of machined surface



SH Coating

Coating	Material System	Application	Typical Thickness (µm)	Hardness （HV）	Oxidation Temp. (°C)	Coefficient of Friction	Color
AlTiN SH	Multilayer Nano	High speed machining, High Hardness	2~4	3600	1200	0.34	Golden
AlTiN SS	Multilayer Nano	High speed machining, dry or wet cutting, soft steel	2~4	3300	900	0.30	Silver

Why do we coat “Super Hard Altin”? We called SH Altin!

Spec. Download
Cutting Condition Download
Series Introduction Download
