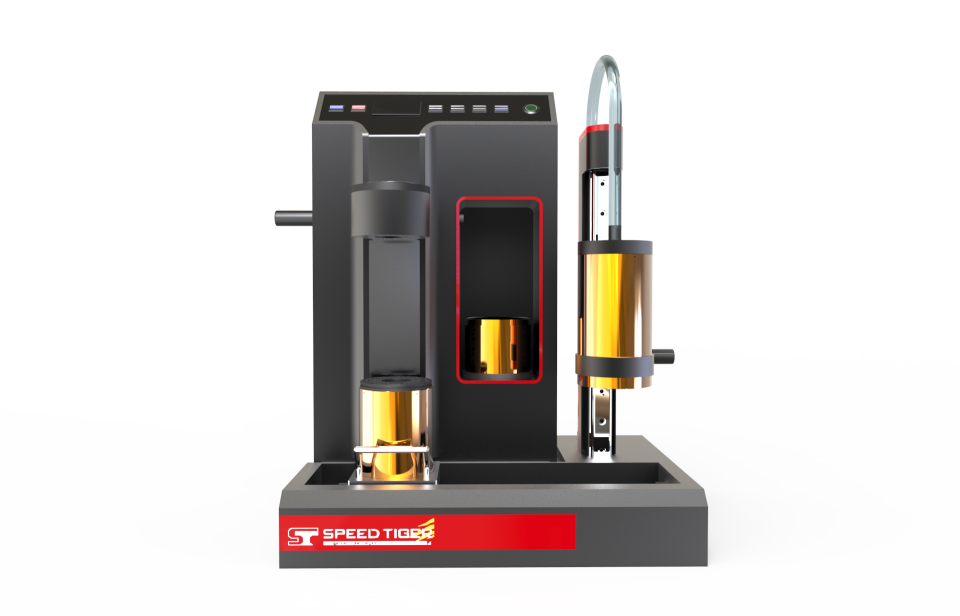

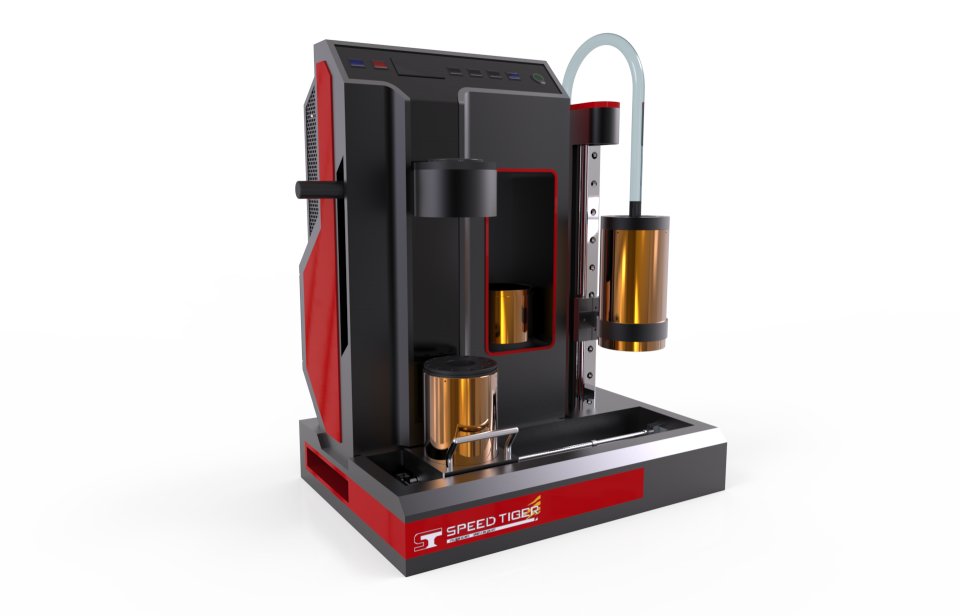

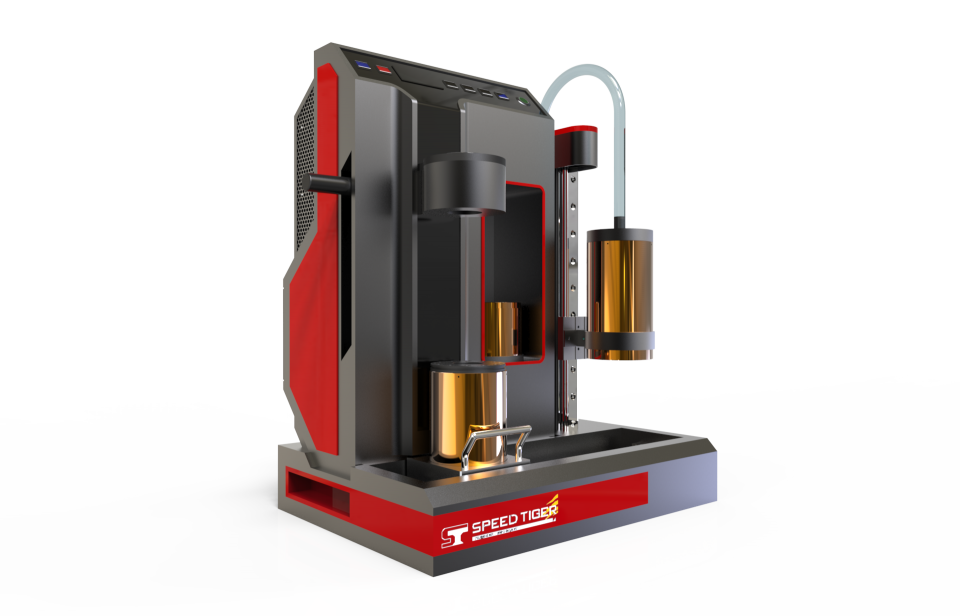

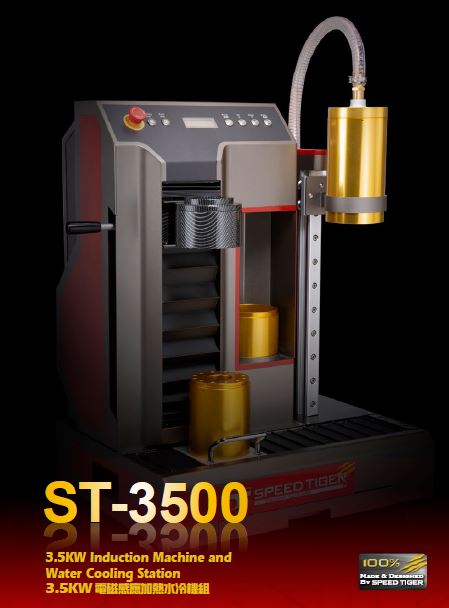

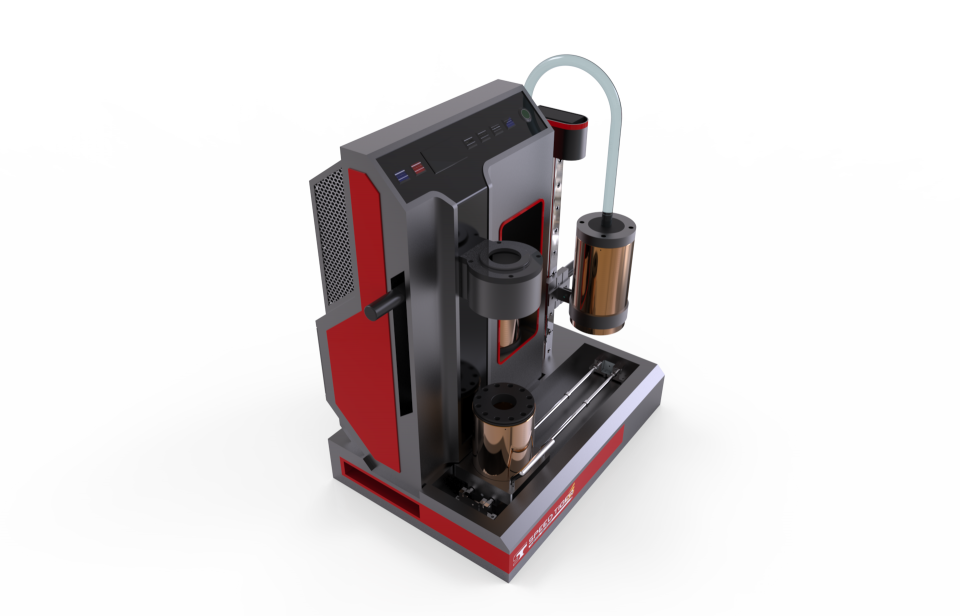

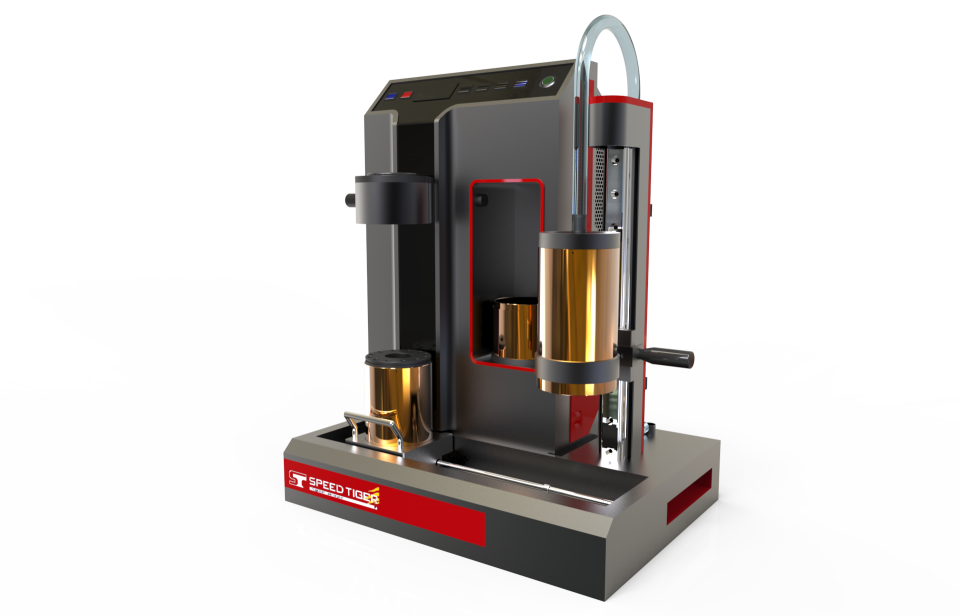

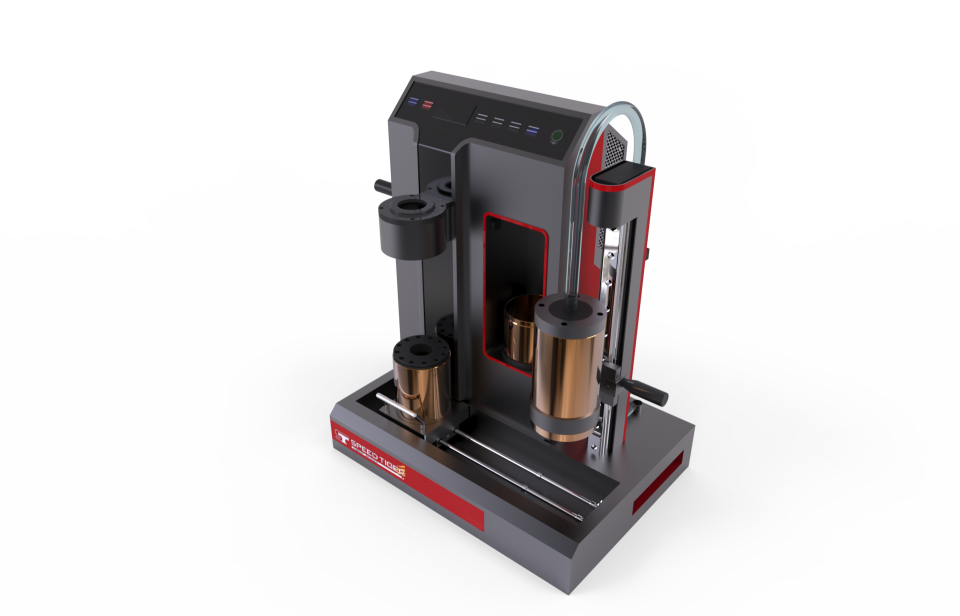

3.5KW Induction Machine and Water Cooling Station

Product Number:ST-3500
Features: ①Generate an alternating electromagnetic field by using 3.5 KW high-frequency thermal coil. Refer to the heating timesheet, it's easy to load and unload tools just need to set the diameter and heating seconds.②Prolong holder life by using low-powered heating and water cooling. ③By water-cooling with coolant, can clean most of the carbon deposits and prevent the chuck become rusty. ④Use with Speed Tiger Shrink Fit Chucks and Power Tips Series, will show the maximum performance and economic benefits of the shrinking system. ⑤Combine 2 functions in 1 machine: Operate heating and cooling process at one machine, i.e. no need to remove the base. Operating time within 1 minute and use friendly.
  • 3.5 KW Induction Machine and Water Cooling Station
    100% MADE & DESIGNED BY SPEED TIGER
    1.

    Features
    1. Generate an alternating electromagnetic field by using 3.5 KW high-frequency thermal coil. Refer to the heating timesheet, it's easy to load and unload tools just need to set the diameter and heating seconds.
    2. Prolong holder life by using low-powered heating and water cooling.
    3. By water-cooling with coolant, can clean most of the carbon deposits and prevent the chuck become rusty.
    4. Use with Speed Tiger Shrink Fit Chucks and Power Tips Series, will show the maximum performance and economic benefits of the shrinking system.
    5. Combine 2 functions in 1 machine: Operate heating and cooling process at one machine, i.e. no need to remove the base. Operating time within 1 minute and use friendly.

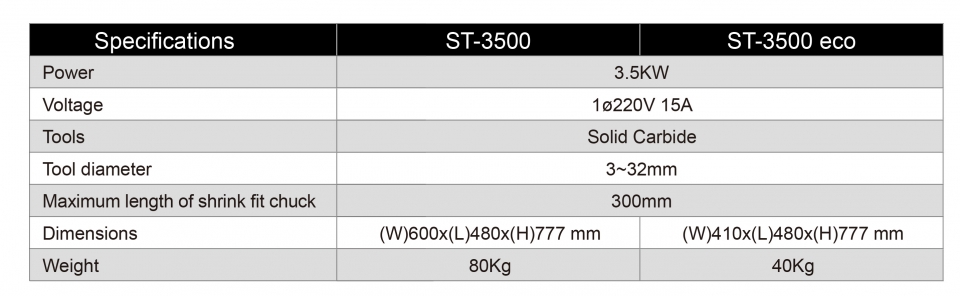

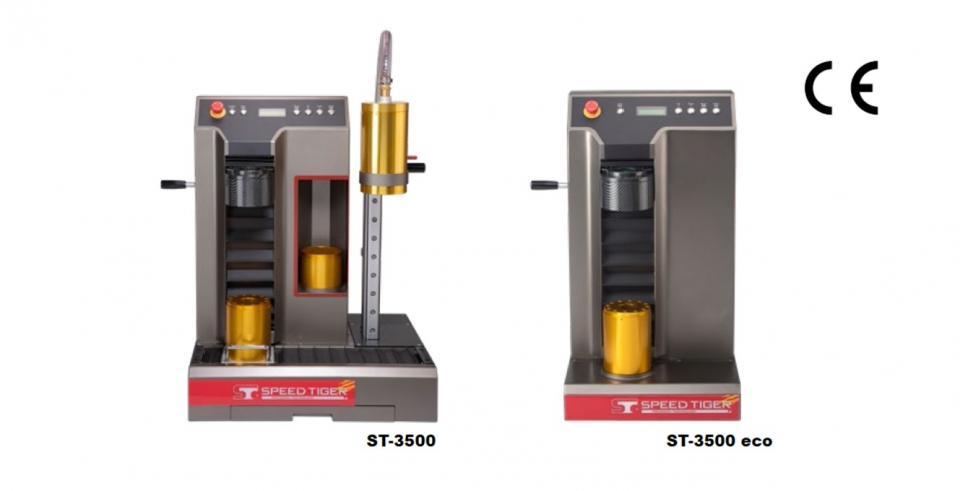

    Specifications ST-3500 ST-3500 eco
    Power 3.5KW
    Voltage 1Ø220V 15A
    Tools Solid Carbide
    Tool diameter 3~32mm
    Maximum length of shrink fit chuck 300mm
    Dimensions (W)600x(L)480x(H)777mm (W)410x(L)480x(H)777mm
    Weight 80KG 40KG

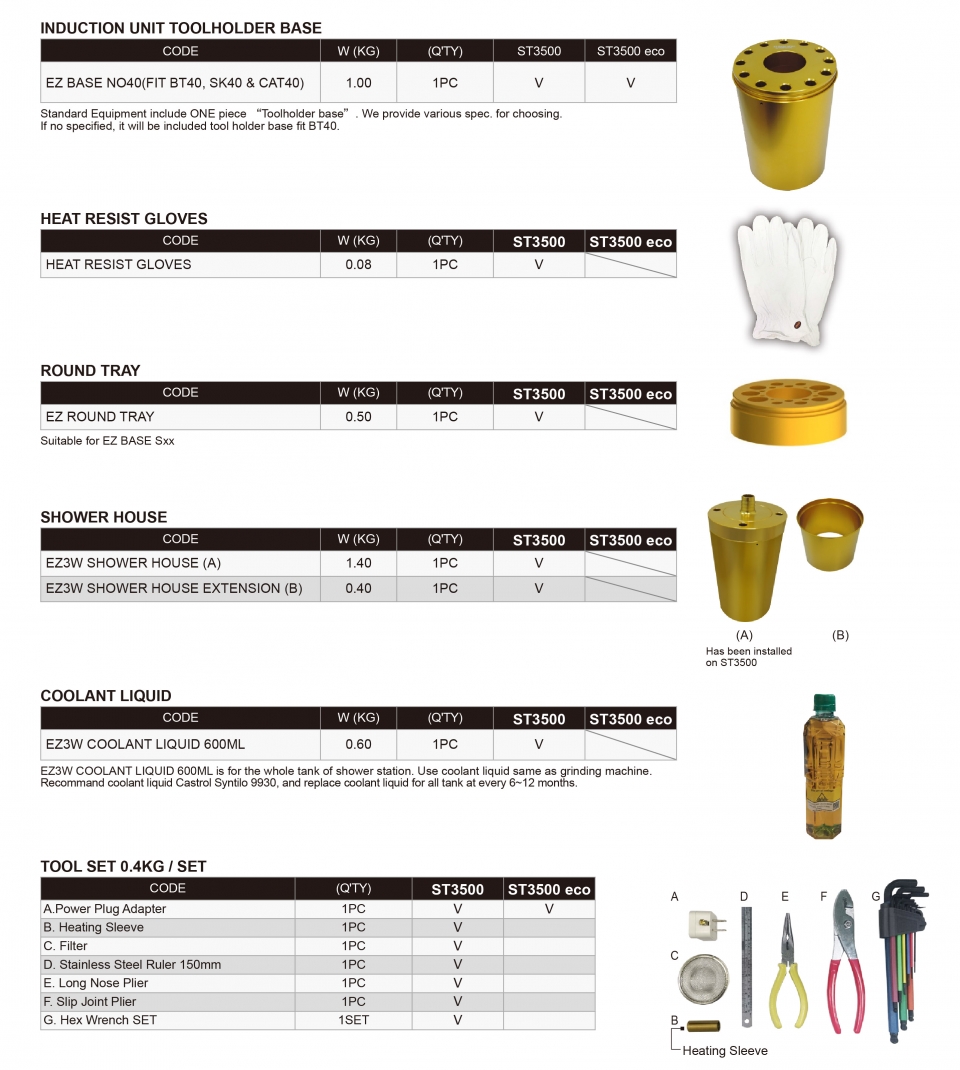

    Standard Accessories
    燒結機規格等_零件

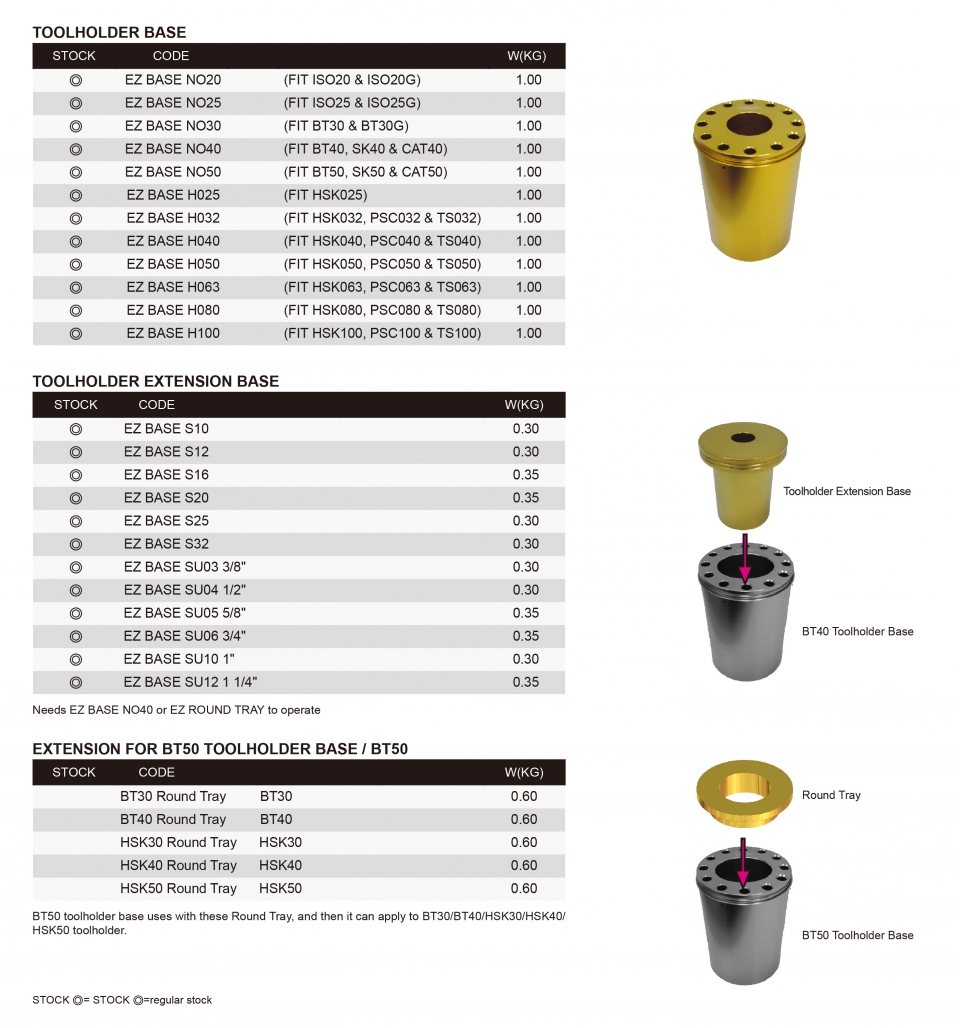

    Optional Accessories
    燒結機規格等_零件2
    Operation Manual Download
