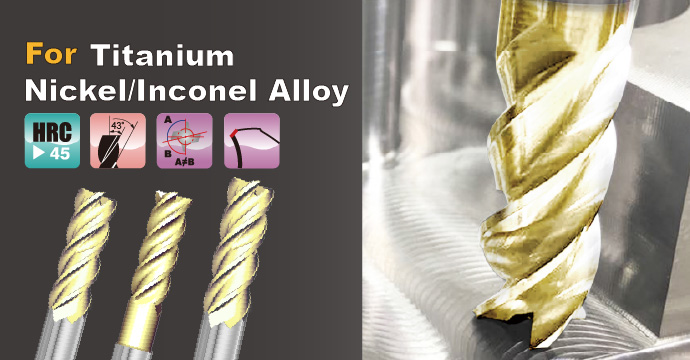

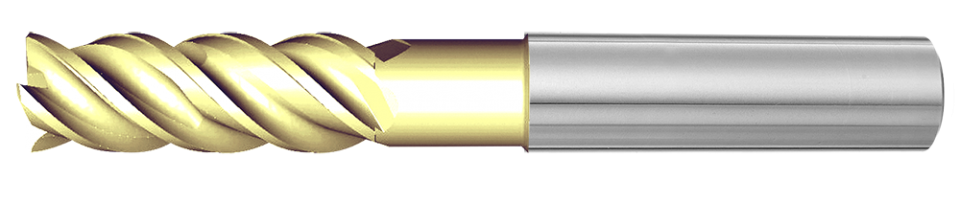

Inconel Alloy Series

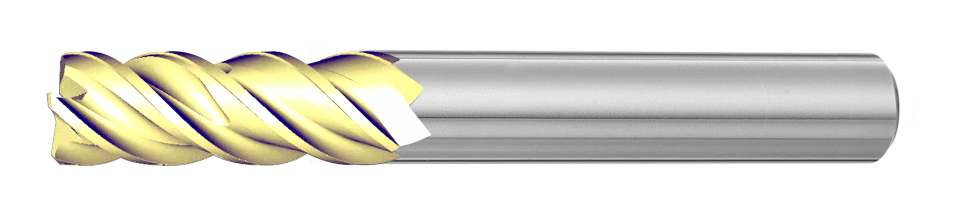

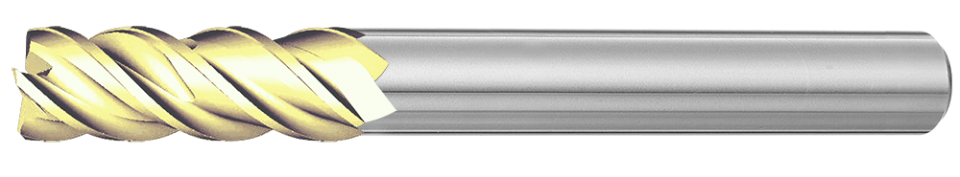

Product Number：PVE1T, PLVE1T, PVR1T
█Features: ①UNEQUAL FLUTE SPACING AND HELIX DESIGN - Anti-Vibration, Improves Chip Disposal, Prevents Burr, Excellent Surface. ②HIGH PERFORMANCE FOR HARD MATERIALS - Micro Grain Carbide that is very tough, resists wear, and is good for cutting. ③ZrN-A COATING - Zirconium nitride (ZrN) +Titanium aluminum boron nitride (AlTiBN) coating lubricates the end mill for stability at high temperature and superior wear resistance at high cutting speeds, offering better heat resistance than TiAlN, TiN or TiCN coatings. ④HIGH QUALITY - Flutes ground by a world-class ISO-9001 Factory; Great performance at a competitive price. █Application: Nickel alloy / Inconel Alloy.
-
Features

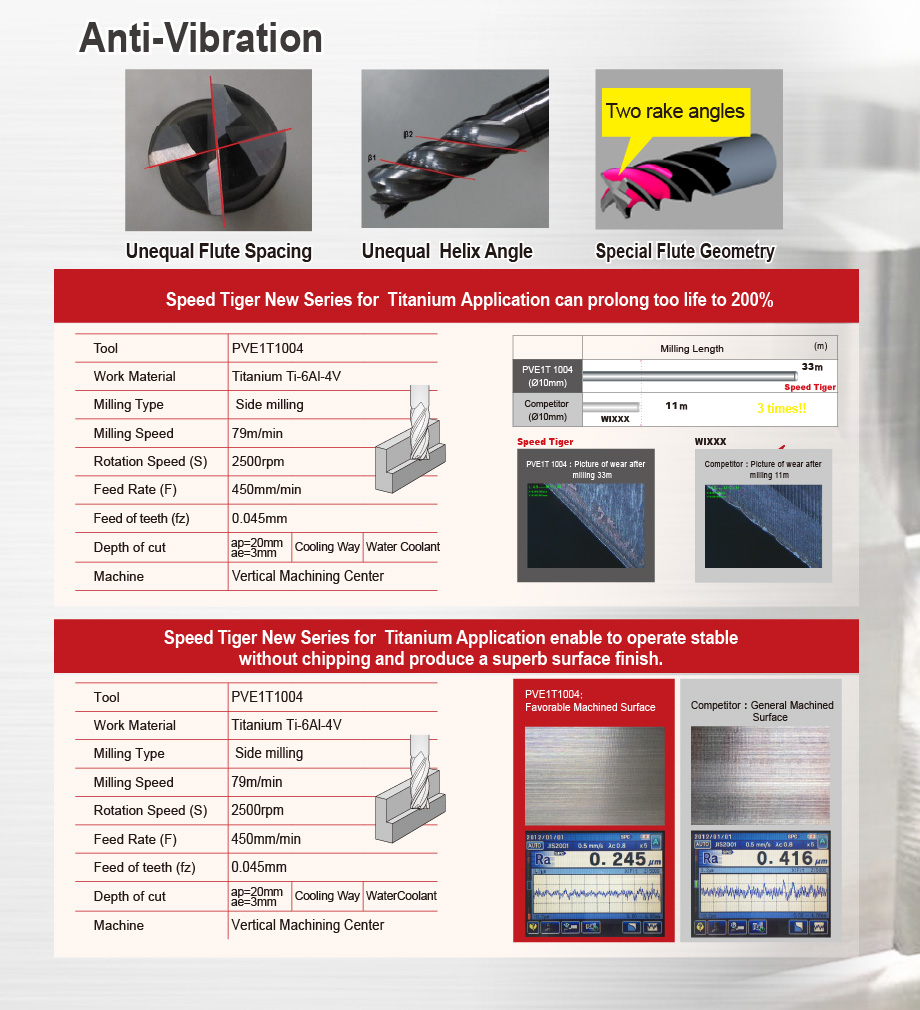

Anti-vibration- Unequal Flute Spacing
- Unequal Helix Angle
- Special Flute Geometry
-
ZrN-A Coating
Block resistance- Suitable for High Speed machining with both dry and wet cutting way.
- Hardness 2800~3000 HV
- Coefficient of friction: 0.3
- Oxidation Temp: 800~900°C
- High performance coating(Light golden)
Measured comparison-SUS316
Before the tool is used
Parameter Tool(Coating) PVE 1004 ZrN-A Cutting Material SUS316 Rotation Speed (S) 2644 rpm Milling Speed (Vc) 100 m/min Feed Rate (F) 646 mm/min Depth of cut ap=10mm / ae=10mm (Fz) Feed of teeth 0.062 Machine YCM FV102A Holder BT40 Shrink fit holder The length of Tool Extend 37mm Cooling Way Water
Parameter Tool(Coating) PVE 1004 ZrN-A Cutting Material SUS316 Rotation Speed (S) 2644 rpm Milling Speed (Vc) 100 m/min Feed Rate (F) 646 mm/min Depth of cut ap=10mm / ae=10mm (Fz) Feed of teeth 0.062 Machine YCM FV102A Holder BT40 Shrink fit holder The length of Tool Extend 37mm Cooling Way Water

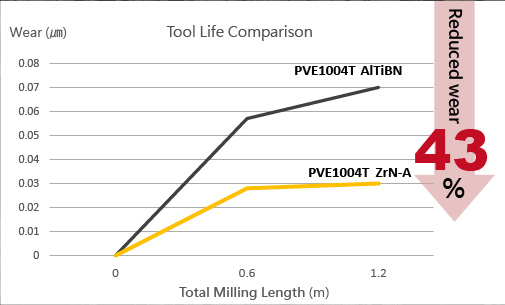

Coating Total Milling Length (m) 0.6m 1.2m ALTIBN 0.057µm 0.07µm ZrN-A 0.0µm 0.03µm
nACRo Coating

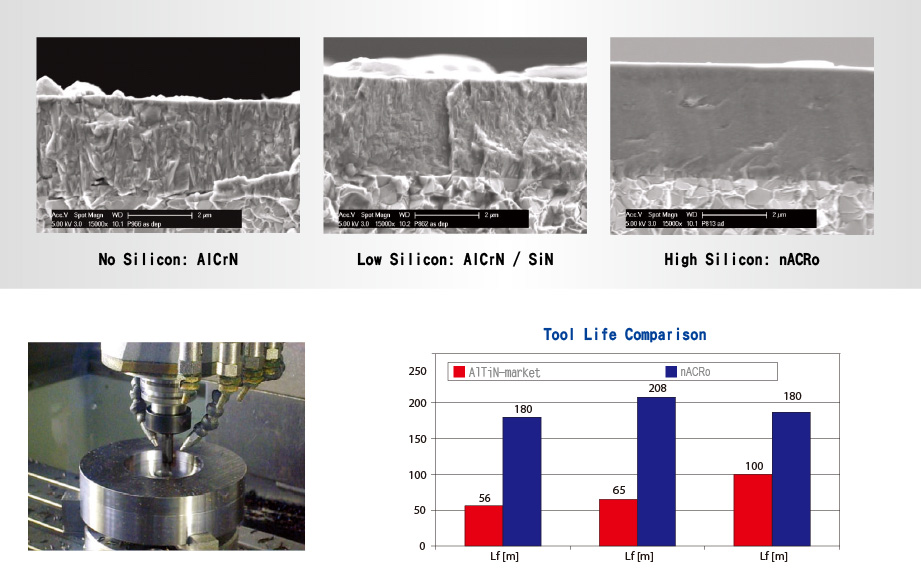

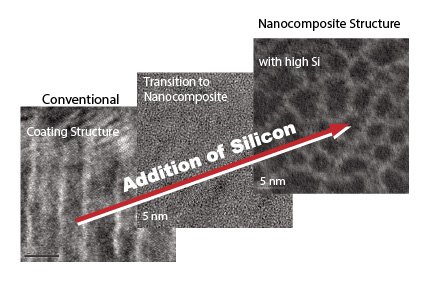

nACRo Nanocomposite coating processBy deposition very different kinds of materials,the components (like Ti, Cr, Al in the first group,and Si in the other) are not mixed completely, and 2 phases are created. The nanocrystallineTiAlN- or AlCrN-grains become embedded in theamorphous SiN-matrix and the nano-composite structure develops.
Silicon increases the thoughness and decreases the internal residual stress of the coating. The increasing of the hardness is generated by the structure only, the SiN matrix enwraps the hard grains and avoids growing of their size.- Contain Si membrane, oxidation start temperature : 1,100℃.
- Nano grade coating, better surface finish
- Extremely high nano hardness, extremely high adhesion.
- Better protection for tools, reduction of production cost.
Carbide End Mills Ø10mm, z=4, steel 34CrNiMo6 (30 HRC), Coolant: Air; Minimum lubrication
- Tested tools: 2x4 - Source: Carmex, Maalot, ISR -
-
