SNC Carbide Drill For Stainless Steel 5xD 8xD
Product Number：5SNC, 8SNC - 5xD & 8xD Carbide Drill For Stainless Steel - With Coolant Hole , Size Range: 3mm~14mm / 3mm~12mm , Point A
█Features: ①Dissymmetrical irregular margins: Achieves smooth surface of drilling, allow high precision straight cutting and Anti-vibration ②Unequal Flute Spacing - Anti-vibration and the chip removals are improved. ③Improved the margin top position, to advance the drilling precision. █Application: Stainless steel
-
►3SN ►5SN ►5SNC ►8SNC
♦Size Range: Ø3-16mm // Ø3-14mm
♦Point Angle: 135º
Features

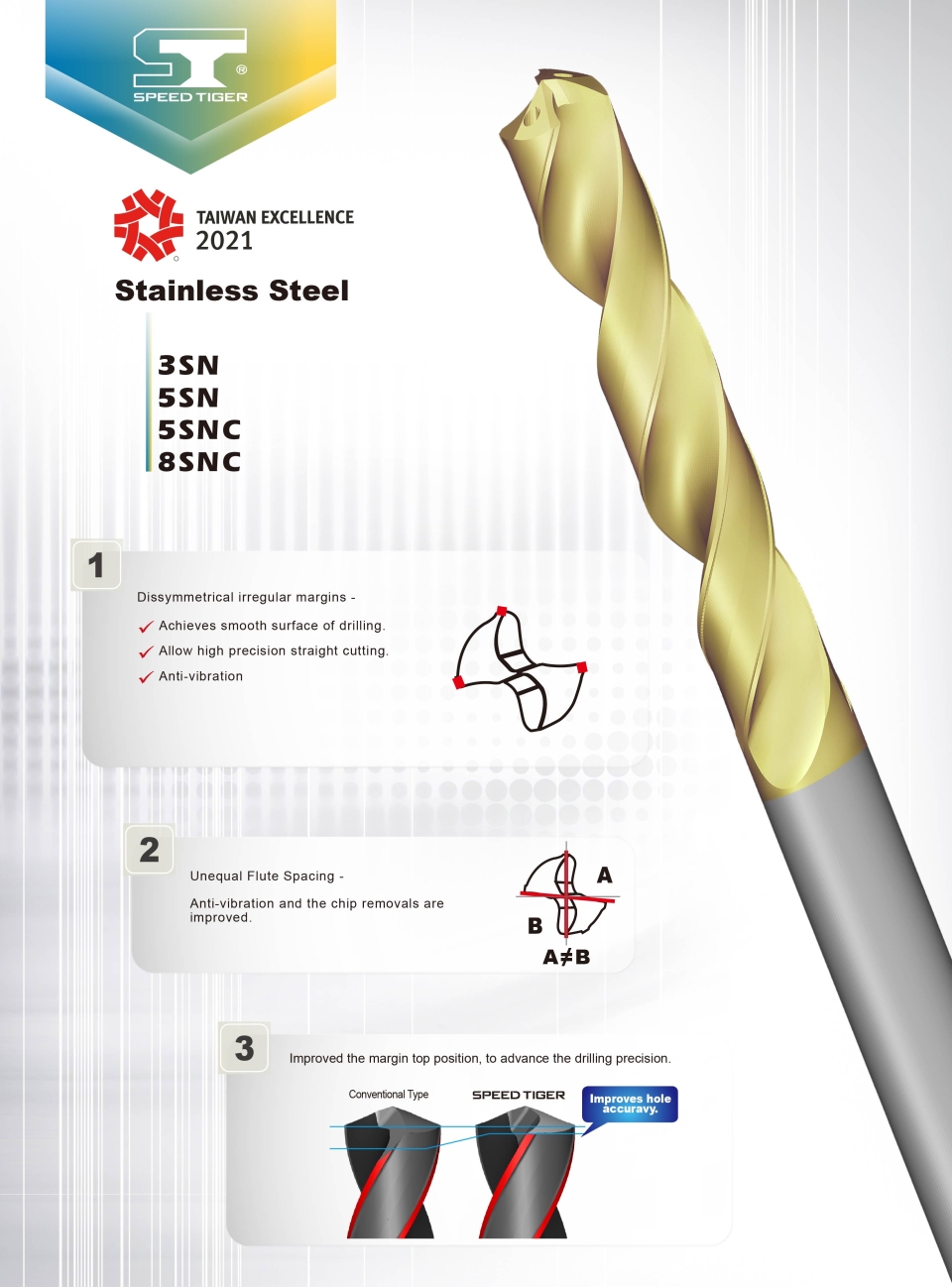

1. Dissymmetrical irregular margins
- Achieves smooth surface of drilling.
- Allow high precision straight cutting.
- Anti-vibration
2. Unequal Flute Spacing - Anti-vibration and the chip removals are improved.
3. Improved the margin top position, to advance the drilling precision.

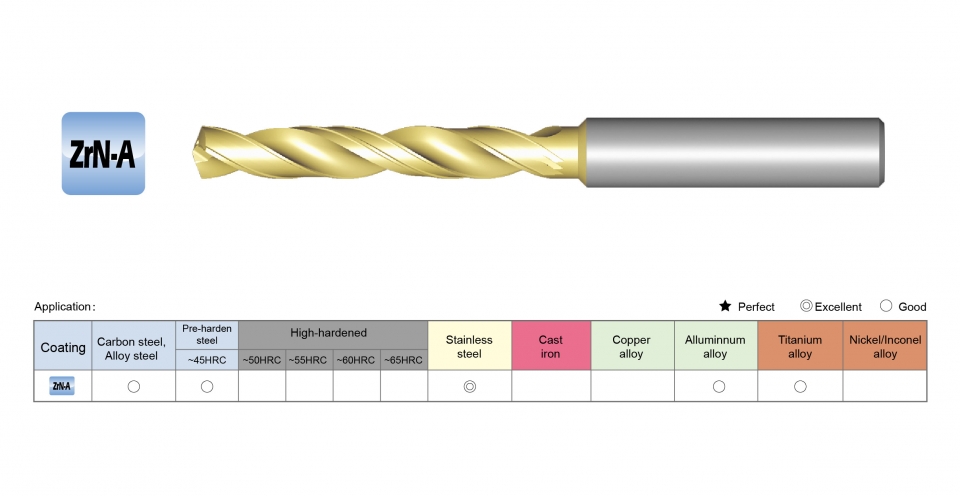

Application
◎ Excellent ○ GoodITEM Carbon steel,
Alloy steelPre-harden steel
~45HRHigh-hardened
~50HRCStainless steel Cast iron Cooper alloy Aluminum alloy Titanium alloy Nickel/
Inconel alloy3SN/5SN ○ ○ ◎ ○ ○ ○

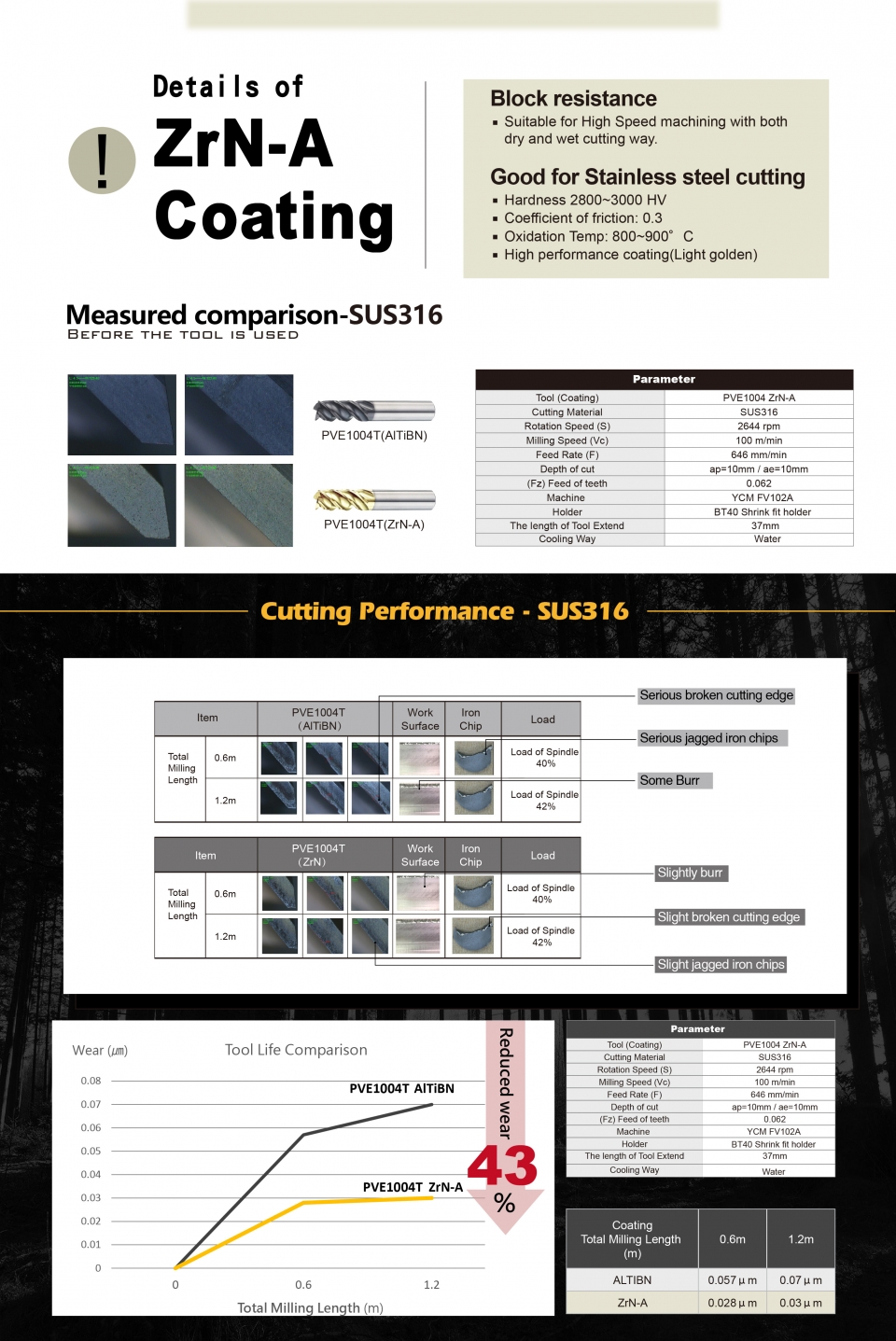

PVD Coating (ZrN-A)
Package & Shipping
Delivery :
Generally, it is 5-7 days if the goods are in stock.
It is 15-20 days if the goods are not in stock, it is according to quantity.
https://www.speedtigertools.com/inquiry/
The Guide to Buying Carbide Drill Bits, Choose the right one for your job! -
►3SN & 5SN- without coolant hole

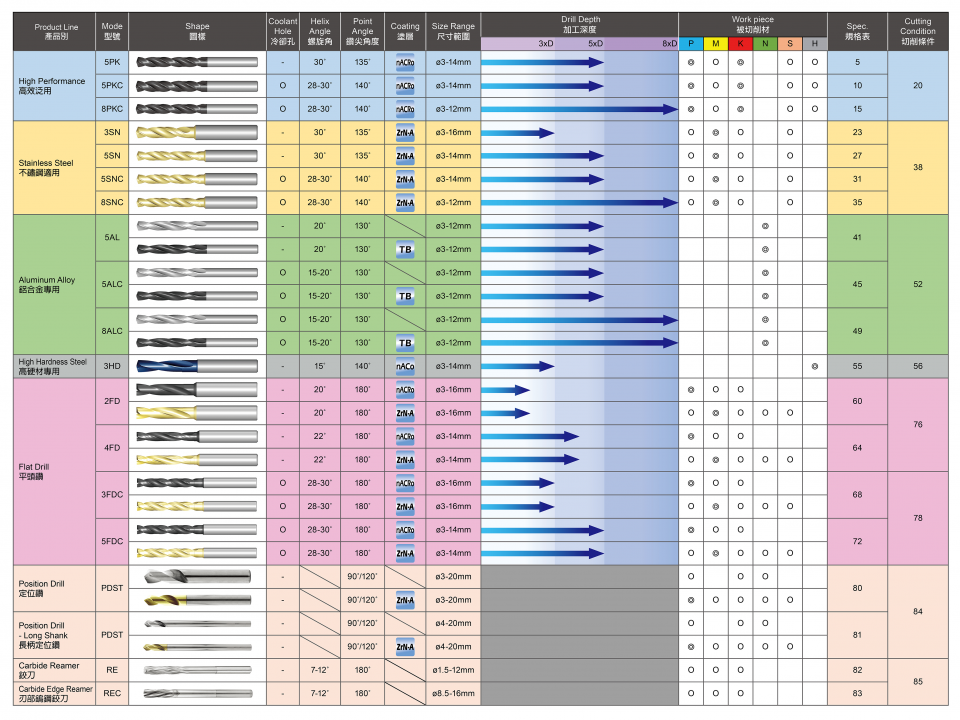

Application Mode Photo Coolant Hole Helix Angle Point Angle Coating Diameter Spec. Cutting Condition Stainless Steel 3SN
X 30° 135° ZrN-A 3.0mm~16.0mm Download Download Stainless Steel 5SN
X 30° 135° ZrN-A 3.0mm~14.0mm Download Stainless Steel 5SNC
O 28~30° 140° ZrN-A 3.0mm~14.0mm Download Stainless Steel 8SNC
O 28~30° 140° ZrN-A 3.0mm~12.0mm Download -
-
