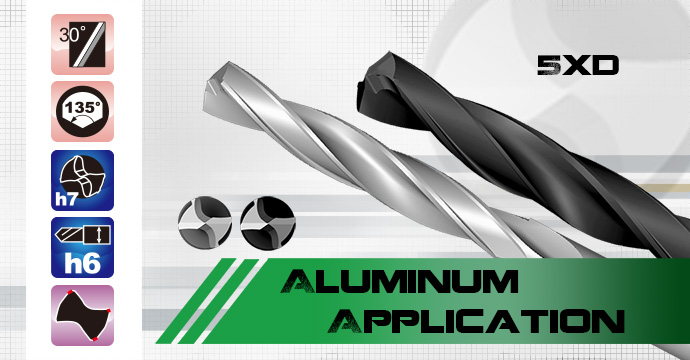

AL Carbide Drill For Aluminum Application 5xD
Product Number：5AL - 5xD Carbide Drill For Aluminum Alloy - Without Coolant Hole , Size Range: 3mm~12mm , Point Angle: 130°
█Features: ①Double margin- the second margin also has a cutting edge - Achieves smooth surface of drilling and allow high precision straight cutting. ②High rigidity design, and the room of chip removals greatly improved. ③Improved the margin top position, to advance the drilling precision. █Application: Cooper alloy, Aluminum alloy
-
►5AL ►5ALC ►8ALC
♦Size Range: Ø3-12mm
♦Point Angle: 130º
Features
1. Double margin- the second margin also has a cutting edge.
- Achieves smooth surface of drilling.
- Allow high precision straight cutting.
2. High rigidity design, and the room of chip removals greatly improved.
3. Improved the margin top position, to advance the drilling precision.

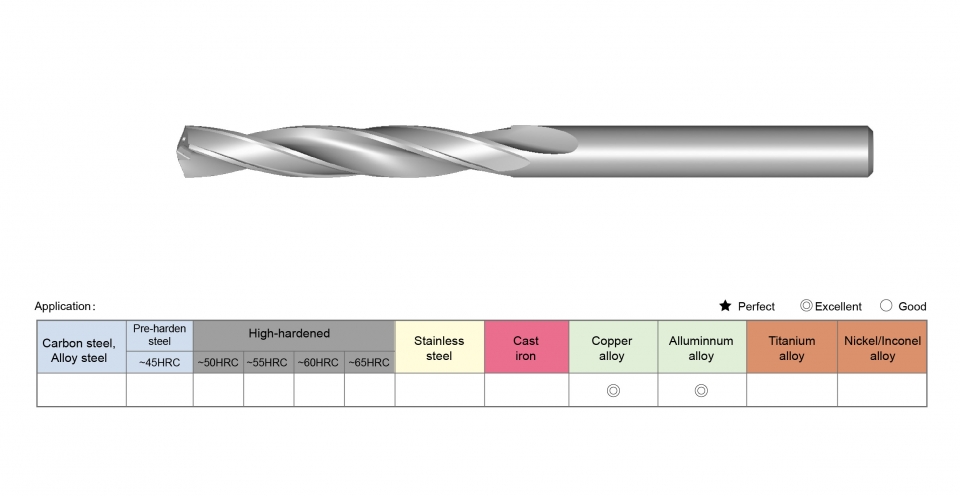

Application
◎ Excellent ○ GoodITEM Carbon steel,
Alloy steelPre-harden steel
~45HRHigh-hardened
~50HRCStainless steel Cast iron Cooper alloy Aluminum alloy Titanium alloy Nickel/
Inconel alloy5AL ◎ ◎

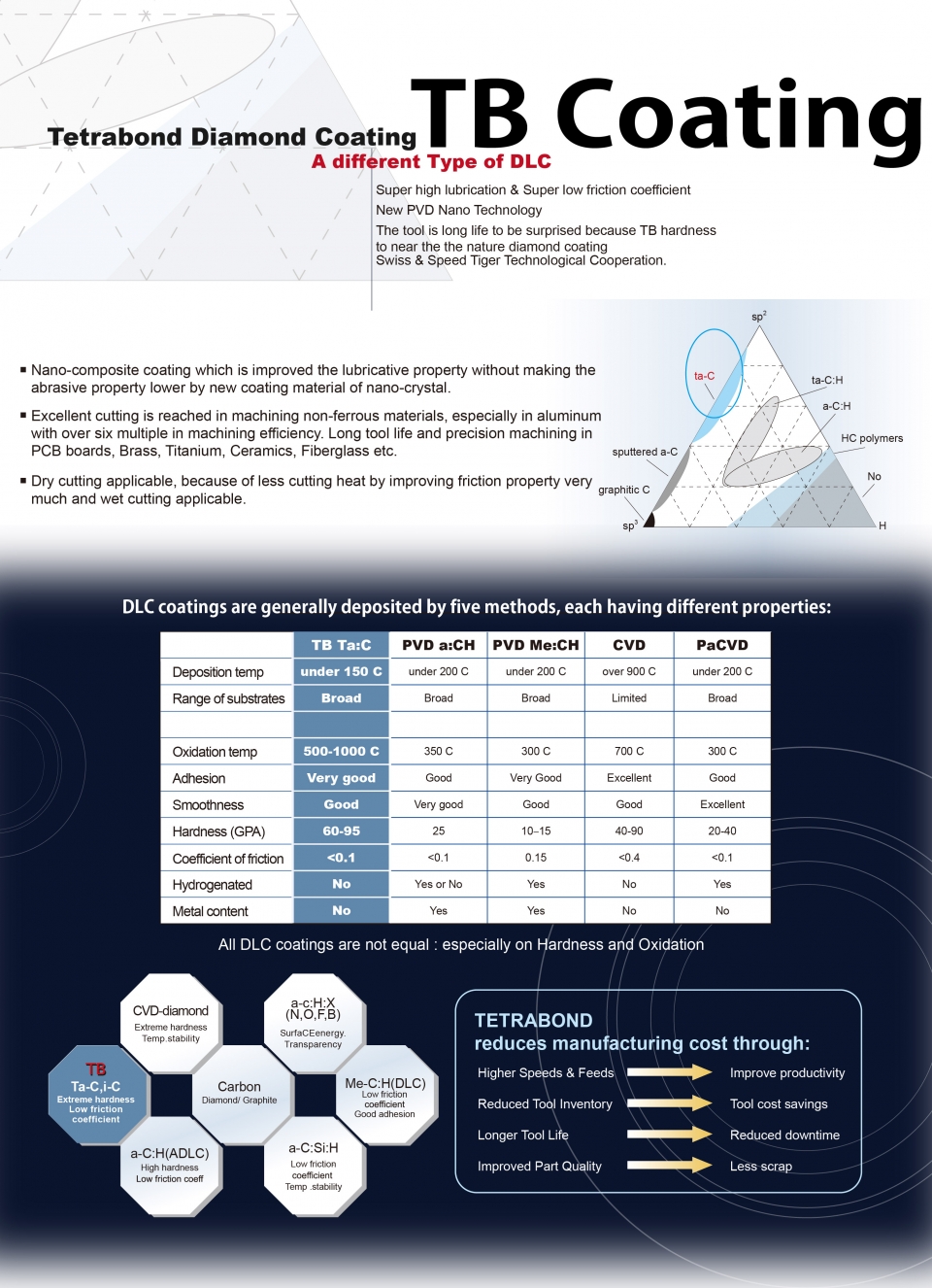

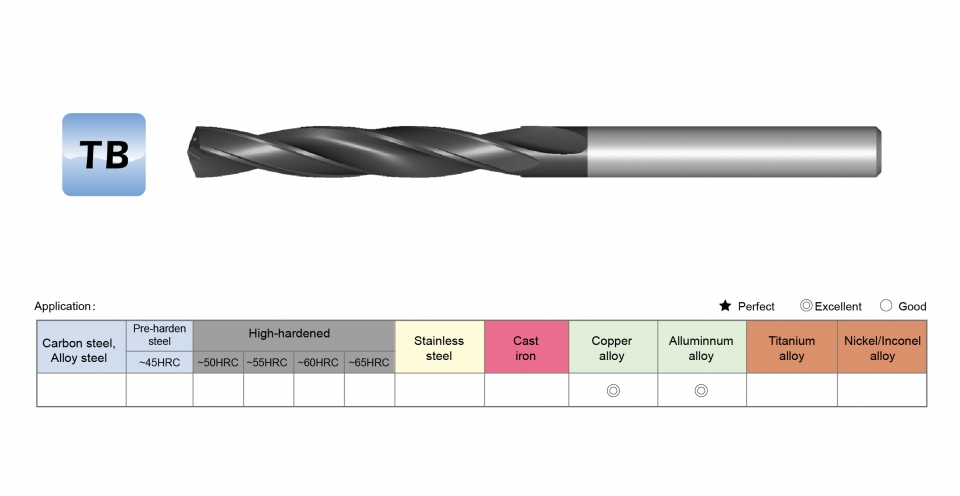

CVD Coating (TB)
Super high lubrication & Super low friction coefficientNew PVD Nano TechnologyThe tool is long life to be surprised because TB hardness to near the nature diamond coatingSwiss & Speed Tiger Technological Cooperation.
- Nano-composite coating which is improved the lubricative property without making the abrasive property lower by new coating material of nano-crystal.
- Excellent cutting is reached in machining non-ferrous materials, especially in aluminumwith over six multiple in machining efficiency. Long tool life and precision machining in PCB boards, Brass, Titanium, Ceramics, Fiberglass etc.
- Dry cutting applicable, because of less cutting heat by improving friction property very much and wet cutting applicable.
TETRABOND reduces manufacturing cost through:
Higher Speeds & Feeds ➜ Improve productivity
Reduced Tool Inventory ➜ Tool cost savings
Longer Tool Life ➜ Reduced downtime
Improved Part Quality ➜ Less scrap
TETRABOND is an excellent choice for machining non-ferrous materials such as:
High silicon content aluminium alloys
Aluminium magnesium matrix materials
Titanium 6Al4V
Epoxy resins
Fibreglass and composites
Plastic
Graphite
Brass and bronze
Ceramics
TETRABOND Advantages.- No substrate preparation required
- Suitable for HSS and carbide cutter
- Able to strip and recoat without damaging the substrate
- Thin coating maintains sharp edges
Package & Shipping
Delivery :
Generally, it is 5-7 days if the goods are in stock.
It is 15-20 days if the goods are not in stock, it is according to quantity.
https://www.speedtigertools.com/inquiry/
The Guide to Buying Carbide Drill Bits, Choose the right one for your job! -
►5AL- without coolant hole ►5ALC & 8ALC- with coolant hole
Application Mode Photo Coolant Hole Helix Angle Point Angle Coating Diameter Spec. Cutting Condition Aluminum alloy 5AL
X 20° 135° TB
Uncoated3.0mm~12.0mm Download Download Aluminum alloy 5ALC
O 15~20° 140° TB
Uncoated3.0mm~12.0mm Download Aluminum alloy 8ALC
O 15~20° 140° TB
Uncoated3.0mm~12.0mm Download -
-
