Carbide Drill Bits For High Hardness Steel

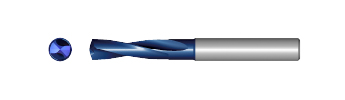

Product Number:HD - 3xD Carbide Drill For High Hardness Steel - Without Coolant Hole , Size Range: 3mm~14mm , Point Angle: 140°
█Features: ①Small helix angle ②Special geometry ③Large core thickness → Superior drilling performance for above HRC45 steel & High rigidity. █Application: Carbon steel , Alloy steel , Pre-harden steel ~45HR , High-hardened ~60HRC
  • ►HD

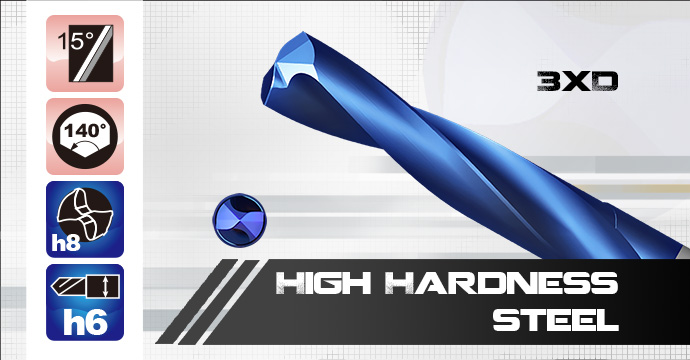

    ♦Size Range: Ø3-14mm
    ♦Point Angle: 140º

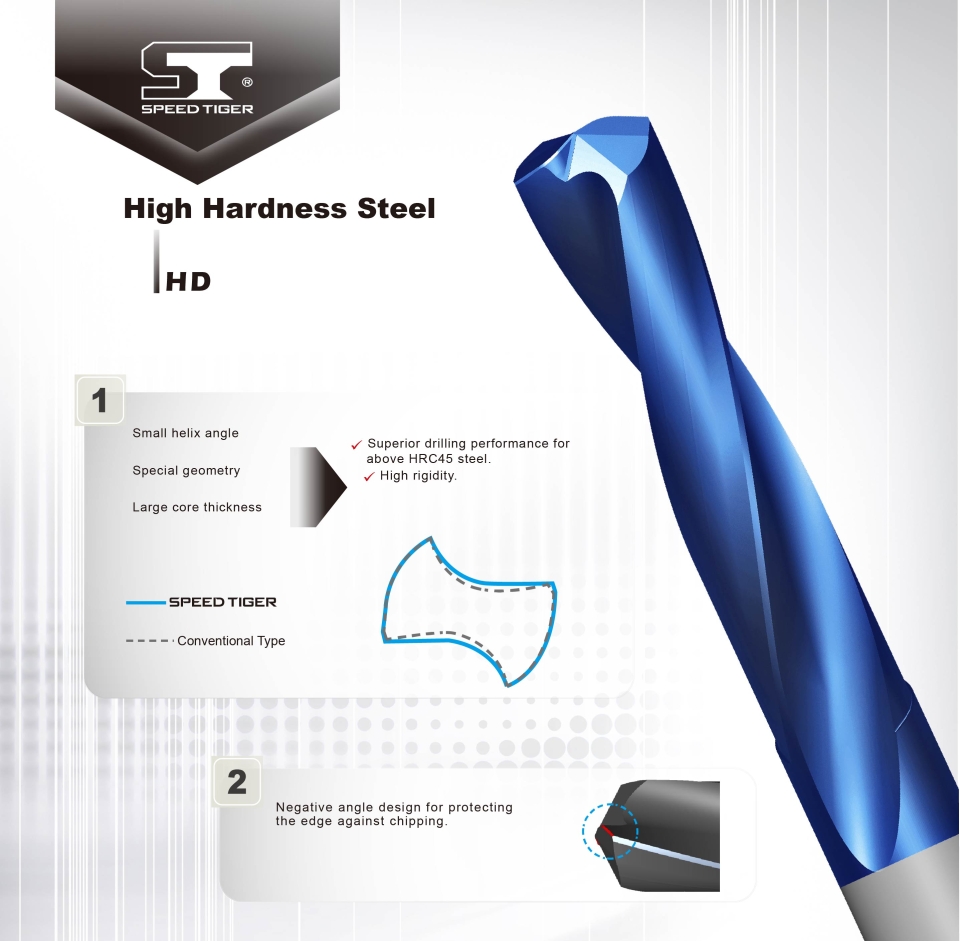

    Features

    • Small helix angle
    • Special geometry
    • Large core thickness
        → Superior drilling performance for above HRC45 steel & High rigidity.

    鑽頭_HD

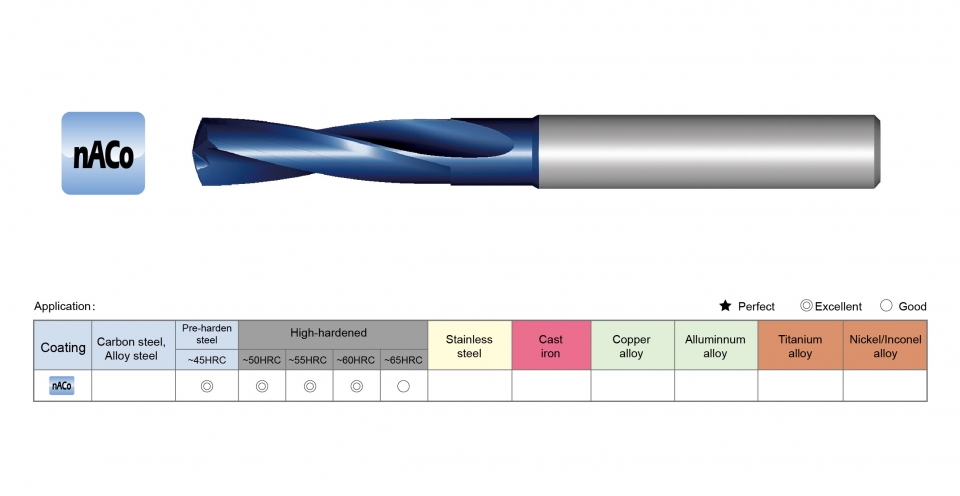

    Application



    ITEM Carbon steel,
    Alloy steel
    Pre-harden steel
    ~45HR
    High-hardened
    ~60HRC
    High-hardened
    ~65HRC
    Stainless steel Cast iron Cooper alloy Aluminum alloy Titanium alloy Nickel/
    Inconel alloy
    HD ○
     Excellent      Good

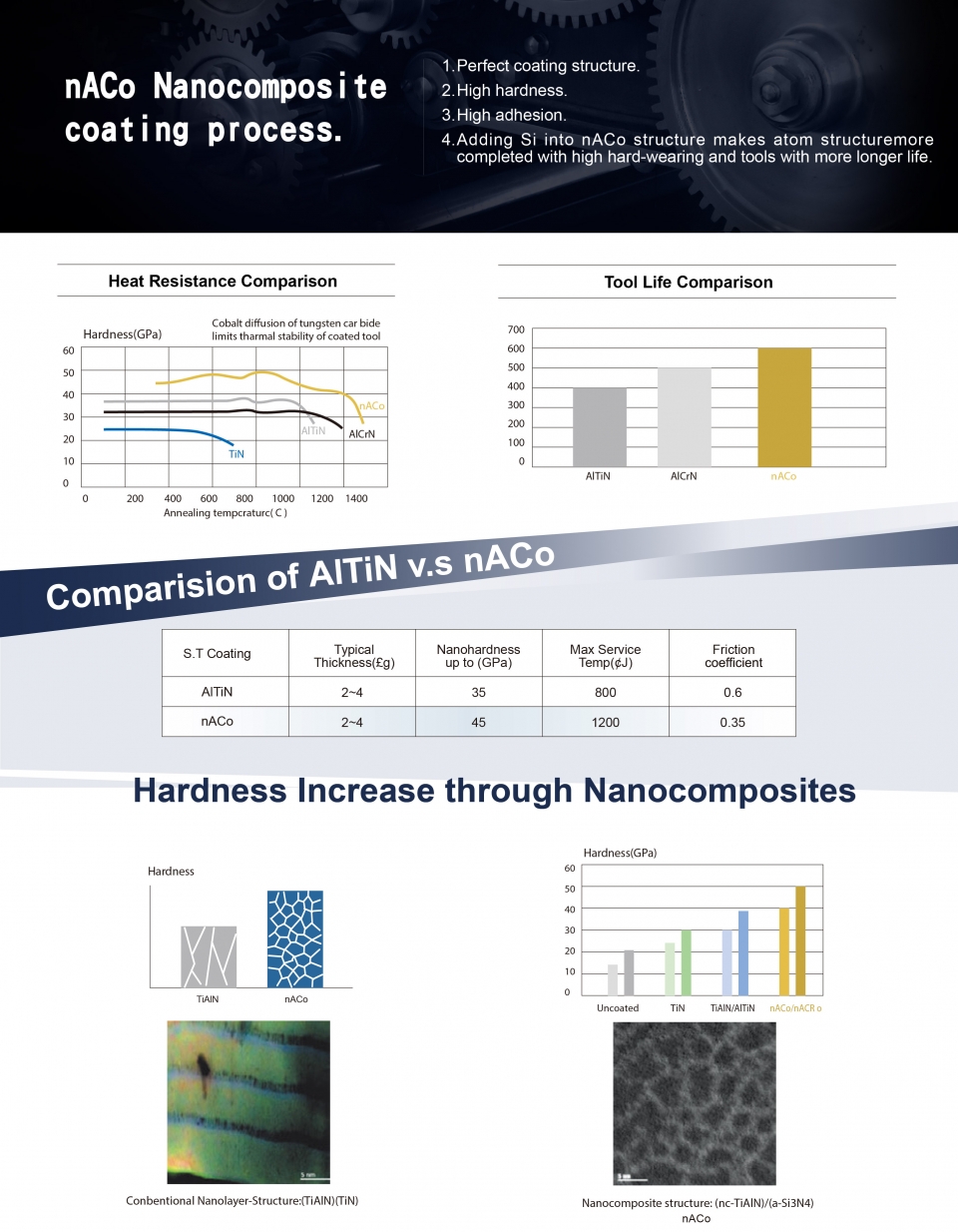

    PVD Coating (nACo)
    coating_nACo coating
    Package & Shipping


    Delivery :
    Generally, it is 5-7 days if the goods are in stock.
    It is 15-20 days if the goods are not in stock, it is according to quantity.


    包裝盒send inquiry
    https://www.speedtigertools.com/inquiry/

    learn more
    The Guide to Buying Carbide Drill Bits, Choose the right one for your job!
  • ►HD - without coolant hole

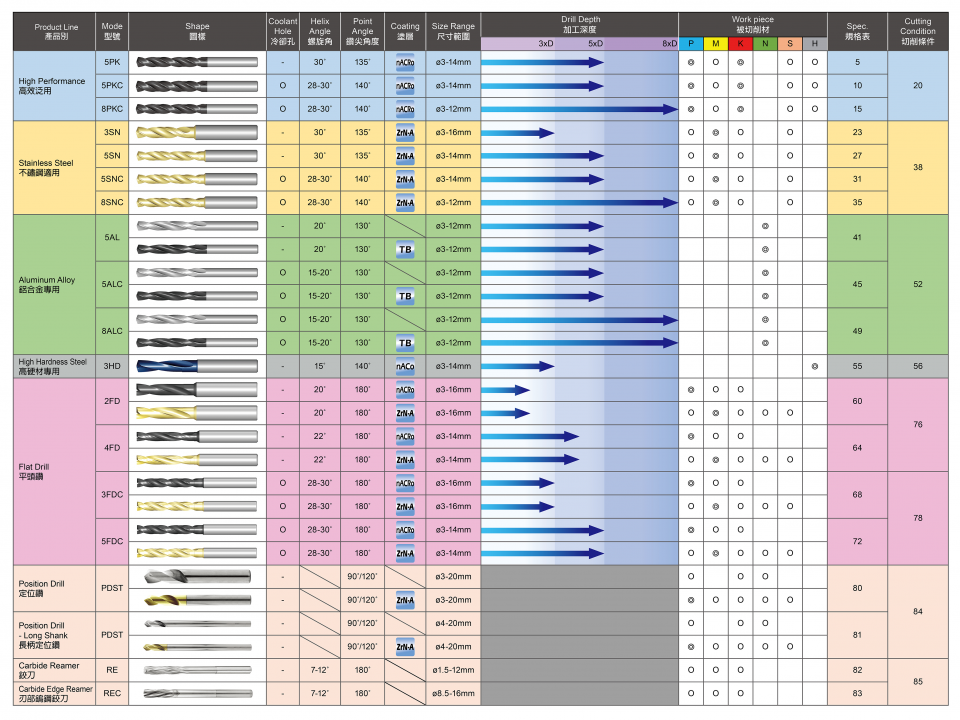

    Application Mode Photo Coolant Hole Helix Angle Point Angle Coating Diameter Spec. Cutting Condition
    High Hardness Steel HD HD-1 X 15° 140° nACo 3.0mm~14.0mm Download Download
