PRODUCTS

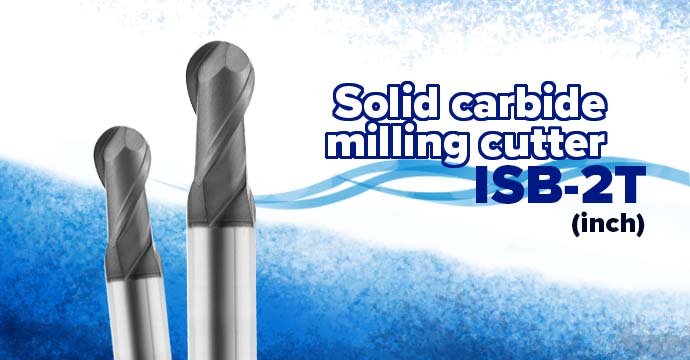

Amazon Best Seller - ISB 2FLUTES
Product Number：ISB
600Nano End Mills General Application, Diameter：1/16"~5/8", Coating：ALTIBN
-

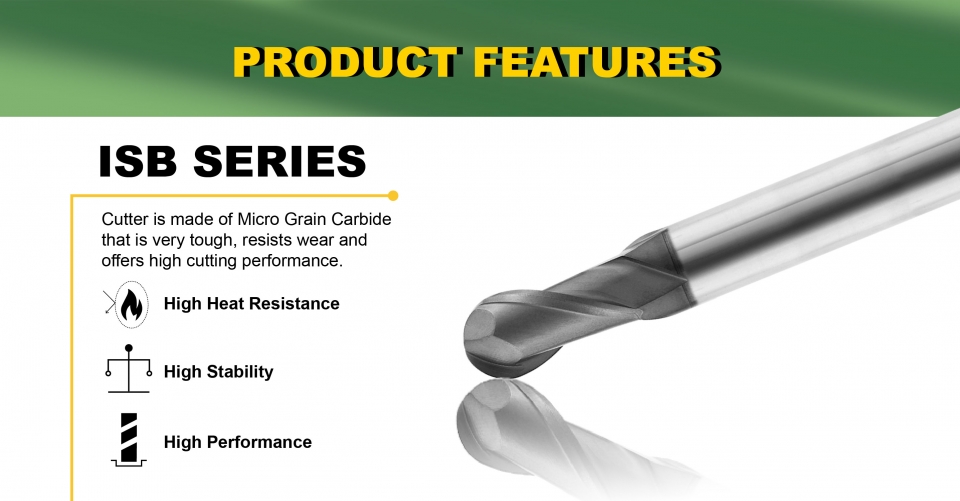

Features
Cutter is made of Micro Grain Carbide that is very tough, resists wear and offers high cutting performance.- High Heat Resistance
- High Stability
- High Performance
Customer Review
Durable and sharp. ⭐⭐⭐⭐⭐
Item Package Quantity: 5 | Size:1/8 in
''They definitely stay sharp! I have yet to break one. I have been able to utilize these bits multiple times depending on the workpiece i'm producing.''
-----Amazon Customer from United States on December 28, 2020
Perfect Product to remove machine out broken tap ⭐⭐⭐⭐⭐
Item Package Quantity: 5 | Size:1/16 in
''Product worked great! I had broken a small tap #8-40 in the hole and was able to machine out the center of the tap to allow removing it and saving the threads. Ball end mills are great for this and these were perfect for the small hole and tap.''
-----MJT from United States on July 30, 2019
No complaints. ⭐⭐⭐⭐⭐
Item Package Quantity: 5 | Size:3/16 in
''Excellent tool, great price. I purchased the 3/32 2 flute ball nosed endmill 5 pack. I use these to mill jimping on the spine of the folding knives that I make. They hold up to the abuse I put my tools through. Very happy with my purchase.''
-----Sean O from United States on July 05, 2019 -
ALTIBN Coating
Coating Structural Analysis-SEM
Normal Temperature Mechanical Analysis
In normal temperature mechanical analysis,the performance of AlTiBN is superior to AlTiN in hardness, wear rate and coating roughness.Hardness (Hv) Impact of Diameter Lc2-Lc1 Wear Rate Roughness (µm) AlTiN 3672 305(um) 8.28N 6.49x10-6 0.233 AlTiBN 4088 280.9(um) 17.6N 5.11x10-6 0.166
The Oxidation Wear of 700°C
Fiction Coefficient Wear Distance Wear rate TiN 0.5662 316.3 6.4x10-6 TiBN 0.5664 281.2 5.69x10-6 AlTiN 0.6402 281.4 4.97x10-6 Multi-TiN 0.686 277.4 4.82x10-6 ALTIBN 0.618 281.8 4.66x10-6 Mult-ALTiN 0.7014 290.1 5.5x10-6
Tool Life Comparison and Cutting Edges
Milling Type Side Milling Feed Rate 1082mm/min Work Piece S45C Depth of Cut ap=20 ae=1.2 Tool Size 10mm x 30 x 75L Coolant Way Air Rotation Speed 3183 rpm CNC Machine CNC YCM FV102A -
Series Catalogue Download
MODE Diameter Flute
LengthFull
LengthShank
DiameterFlutes Specification
DownloadISB1/16"2T 1/16'' 3/16'' 1-1/2'' 1/8'' 2 Download
Cutting
Condition
DownloadISB5/64"2T 5/64'' 3/16'' 1-1/2'' 1/8'' 2 ISB3/32"2T 3/32'' 9/32'' 1-1/2'' 1/8'' 2 ISB7/64"2T 7/64'' 3/8'' 1-1/2'' 1/8'' 2 ISB1/8"2T 1/8'' 3/8'' 1-1/2'' 1/8'' 2 ISB3/16"2T 3/16'' 5/8'' 2'' 3/16'' 2 ISB1/4"2T 1/4'' 3/4'' 2-1/2'' 1/4'' 2 ISB5/16"2T 5/16'' 13/16'' 2-1/2'' 5/16'' 2 ISB3/8"2T 3/8'' 1'' 2-1/2'' 3/8'' 2 ISB1/2"2T 1/2'' 1'' 3'' 1/2'' 2 ISB5/8"2T 5/8'' 1-1/4'' 3-1/2'' 5/8'' 2 -
-
