IG/IGR Internal Grooving / Internal Grooving Radius

Product Number：IG, IGR

█Features: ①Internal Grooving & Internal Grooving Radius ②HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide that is very tough, resists wear, and offers high cutting performance. ③HIGH-QUALITY - Flutes ground by a world-class ISO-9001 Factory █Application: Mild steels, Carbon steels, Alloy steels, Cast iron, Stainless steel, Aluminum, Copper, etc.

Add Inquiry

Specification Download Contact Us

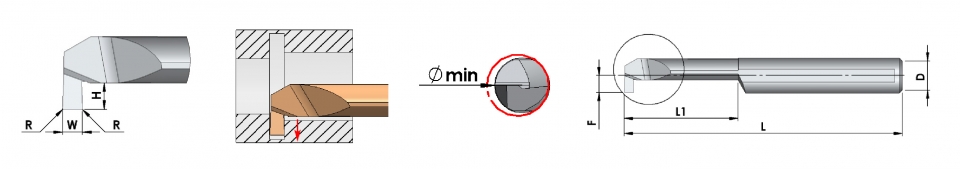

MODE	D	Ø min	F	L	L1	W	R	H
IG05-40.005-10 R/L	4	4	1.8	50	10	0.5	0.05	0.5
IG05-40.005-15 R/L	4	4	1.8	50	15	0.5	0.05	0.5
IG10-40.010-10 R/L	4	4	1.8	50	10	1.0	0.1	1.0
IG10-40.010-15 R/L	4	4	1.8	50	15	1.0	0.1	1.0
IG15-40.015-10 R/L	4	4	1.8	50	10	1.5	0.15	1.0
IG15-40.015-15 R/L	4	4	1.8	60	15	1.5	0.15	1.0
IG10-50.010-15 R/L	6	5	2.3	50	15	1.0	0.1	1.2
IG10-50.010-25 R/L	6	5	2.3	50	25	1.0	0.1	1.2
IG15-50.015-15 R/L	6	5	2.3	50	15	1.5	0.15	1.2
IG15-50.015-25 R/L	6	5	2.3	50	25	1.5	0.15	1.2
IG20-50.020-15 R/L	6	5	2.3	50	15	2.0	0.2	1.2
IG20-50.020-25 R/L	6	5	2.3	50	25	2.0	0.2	1.2
IG10-60.010-15 R/L	6	6	2.8	50	15	1.0	0.1	1.5
IG10-60.010-25 R/L	6	6	2.8	50	25	1.0	0.1	1.5
IG15-60.015-15 R/L	6	6	2.8	50	15	1.5	0.15	1.5
IG15-60.015-25 R/L	6	6	2.8	50	25	1.5	0.15	1.5
IG20.60.020-15 R/L	6	6	2.8	50	15	2.0	0.2	1.5
IG20.60.020-25 R/L	6	6	2.8	50	25	2.0	0.2	1.5
IG10-70.010-20 R/L	8	7	3.3	60	20	1.0	0.1	1.8
IG10-70.010-30 R/L	8	7	3.3	75	30	1.0	0.1	1.8
IG15-70.015-20 R/L	8	7	3.3	60	20	1.5	0.15	2.0
IG15-70.015-30 R/L	8	7	3.3	75	30	1.5	0.15	2.0
IG20-70.020-20 R/L	8	7	3.3	60	20	2.0	0.2	2.5
IG20-70.020-30 R/L	8	7	3.3	75	30	2.0	0.2	2.5
IG10-80.010-20 R/L	8	8	3.8	60	20	1.0	0.1	1.8
IG10-80.010-30 R/L	8	8	3.8	75	30	1.0	0.1	1.8
IG15-80.015-20 R/L	8	8	3.8	60	20	1.5	0.15	2.0
IG15-80.015-30 R/L	8	8	3.8	75	30	1.5	0.15	2.0
IG20-80.020-20 R/L	8	8	3.8	60	20	2.0	0.2	2.5
IG20-80.020-30 R/L	8	8	3.8	75	30	2.0	0.2	2.5

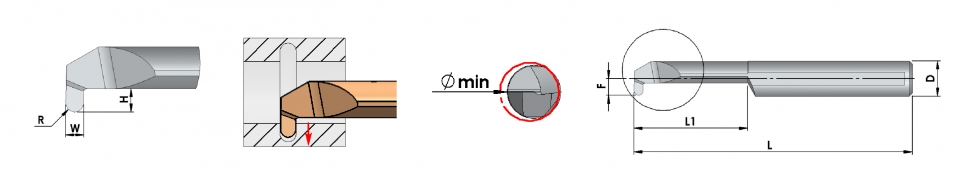

IGR10-40.050-12 R/L	4	4	1.8	50	12	1.0	0.50	1.0
IGR15-40.075-12R/L	4	4	1.8	50	12	1.5	0.75	1.0
IGR20-40.100-12 R/L	4	4	1.8	50	12	2.0	1.00	1.3
IGR10-60.050-18 R/L	6	6	2.8	50	18	1.0	0.50	1.6
IGR15-60.075-18 R/L	6	6	2.8	50	18	1.5	0.75	1.6
IGR20-60.100-18 R/L	6	6	2.8	50	18	2.0	1.00	1.6
IGR10-80.050-24 R/L	8	8	3.8	60	24	1.0	0.50	2.5
IGR15-80.075-24 R/L	8	8	3.8	60	24	1.5	0.75	2.5
IGR20-80.100-24 R/L	8	8	3.8	60	24	2.0	1.00	2.5

Specification & Cutting Condition Download
