Thread Mill Cutter ISO 2D Coolant
Product Number：TMC + Thread Dia. + Pitch + Dia. + Flutes

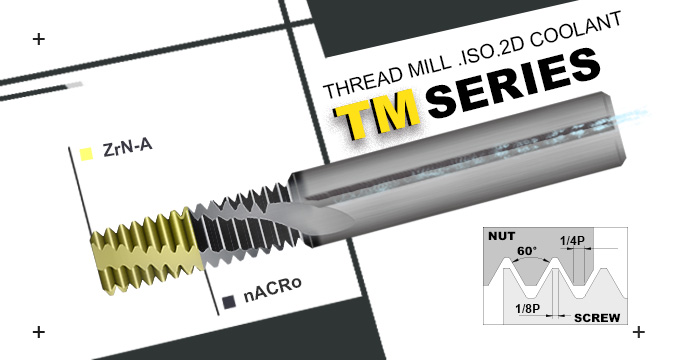

Thread Diameter: M6~M24 // Thread Length: 2 x Thread Diameter // TM - ISO R262 (DIN13) / 6H // With Coolant Hole █ Features: ①Speed Tiger solid carbide Thread Mill offers long tool life and faster cutting speeds. ②Flute design reduces thread chatter, improving product thread finish and quality. ③Available in Single Form, Multi-Form, Tri-Form, and customized. ④Two coating options: ZrN-A and nACro coating, provide good hardness and better resistance to chemical breakdown in high-heat applications.
-

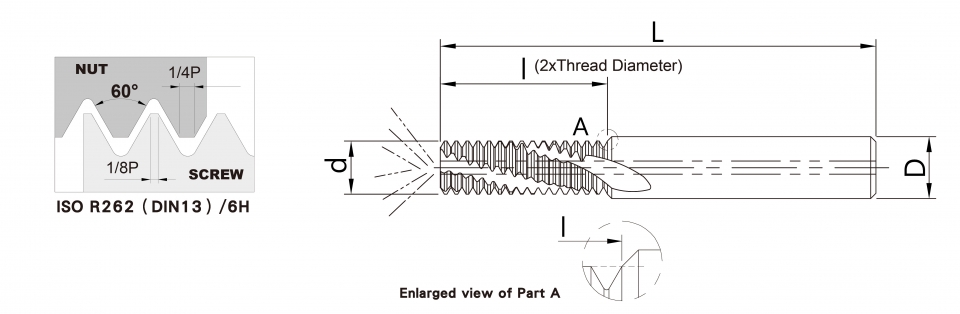

MODE Thread Diameter
(M)Pitch
(mm)Diameter
(d)Thread Length
(l)Full Length
(L)Shank Diameter
(D)No. of
flutes (Z)TMC-M0305002303 M6 1 4.5 13.5 65 6 3 TMC-M0812506004 M8 1.25 6 18.13 65 6 4 TMC-M1015007504 M10 1.5 7.5 21.75 80 8 4 TMC-M1217509504 M12 1.75 9.5 27.13 80 10 4 TMC-M1420010004 M14 2 10 31 80 10 4 TMC-M1620012005 M16 2 12 35 105 12 5 TMC-M2025016005 M20 2.5 16 43.75 105 16 5 TMC-M2430016005 M24 3 16 52.5 110 16 5 -
-
