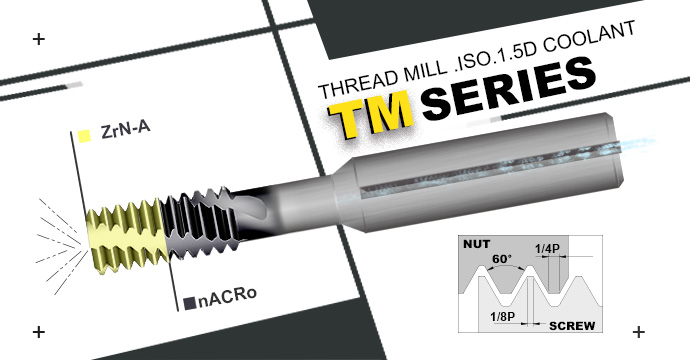

Thread Mill Cutter ISO 1.5D (Effective Length) Coolant
Product Number：TMCEL + Thread Dia. + Pitch + Dia. + Flutes
Thread Diameter: M6~M16 // Thread Length: 1.5 x Thread Diameter // TM - ISO R262 (DIN13) / 6H // with Effective Length █ Features: ①Speed Tiger solid carbide Thread Mill offers long tool life and faster cutting speeds. ②Flute design reduces thread chatter, improving product thread finish and quality. ③Two coating options: ZrN-A and nACro coating, provide good hardness and better resistance to chemical breakdown in high-heat applications.
-

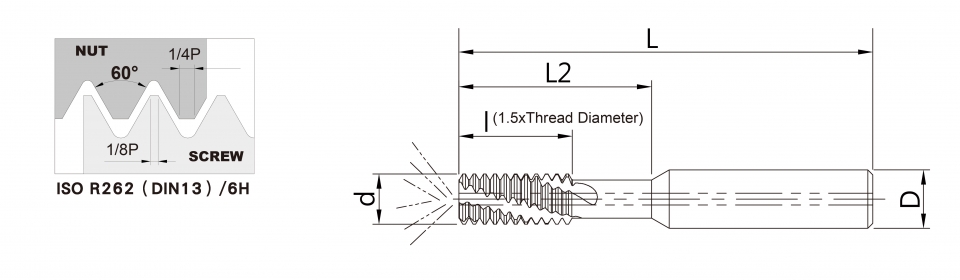

MODE Thread Diameter
(M)Pitch
(mm)Diameter
(d)Thread Length
(l)Full Length
(L)Shank Diameter
(D)No. of
flutes (Z)Effective Length
(L2)TMCEL-M0610004503 M6 1 4.5 10 65 6 3 18 TMCEL-M0812506004 M8 1.25 6 13.8 65 6 4 24 TMCEL-M1015007504 M10 1.5 7.5 16.5 80 8 4 30 TMCEL-M1217509504 M12 1.75 9.5 19.3 105 10 5 42 TMCEL-M1420010004 M14 2 10 24 105 10 5 42 TMCEL-M1620012005 M16 2 12 26 105 12 5 48 -
-
