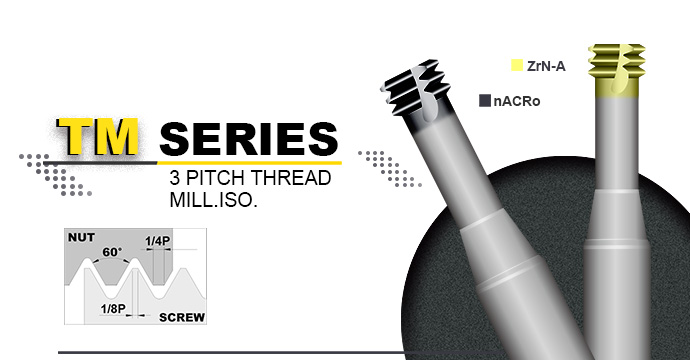

3 Pitch Thread Mill Cutter ISO
Product Number：TM3ZT + Thread Dia. + Pitch + Dia. + Flutes
Thread Diameter: M1.6~M12 // Thread Length: 1.5 ~ 5.25 mm // TM - ISO R262 (DIN13) / 6H // with Effective Length █ Features: ①Speed Tiger solid carbide Thread Mill offers long tool life and faster cutting speeds. ②Flute design reduces thread chatter, improving product thread finish and quality. ③Two coating options: ZrN-A and nACro coating, provide good hardness and better resistance to chemical breakdown in high-heat applications.
-

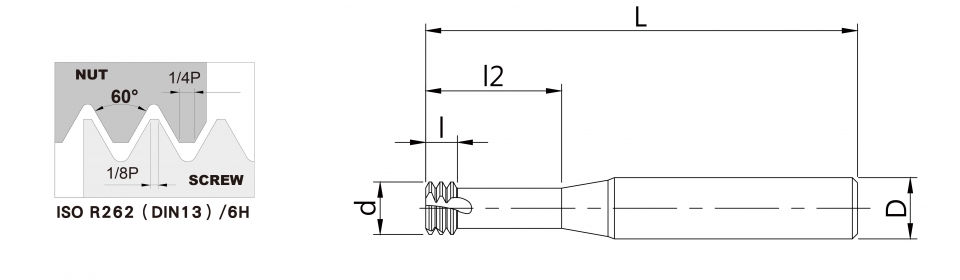

MODE Thread Diameter
(M)Pitch
(mm)Diameter
(d)Thread Length
(l)Full Length
(L)Shank Diameter
(D)No. of
flutes (Z)Effective Length
(L2)TM3ZT-M01603501203(EL3.2) M1.6 0.35 1.2 1.05 50 4 3 3.2 TM3ZT-M01603501203(EL4.8) M1.6 0.35 1.2 1.05 50 4 3 4.8 TM3ZT-M02004001523(EL4) M2 0.4 1.52 1.20 50 4 3 4.0 TM3ZT-M02004001523(EL6) M2 0.4 1.52 1.20 50 4 3 6.0 TM3ZT-M02204501603(EL4.4) M2.2 0.45 1.6 1.35 50 4 3 4.4 TM3ZT-M02204501603(EL6.6) M2.2 0.45 1.6 1.35 50 4 3 6.6 TM3ZT-M02504501903(EL5) M2.5 0.45 1.9 1.35 50 4 3 5.0 TM3ZT-M02504501903(EL7.5) M2.5 0.45 1.9 1.35 50 4 3 7.5 TM3ZT-M03005002303(EL6) M3 0.5 2.3 1.50 50 4 3 6.0 TM3ZT-M03005002303(EL9) M3 0.5 2.3 1.50 50 4 3 9.0 TM3ZT-M04007003103(EL8) M4 0.7 3.1 2.10 50 4 3 8.0 TM3ZT-M04007003103(EL12) M4 0.7 3.1 2.10 50 4 3 12.0 TM3ZT-M05008003803(EL10) M5 0.8 3.8 2.40 50 4 3 10.0 TM3ZT-M05008003803(EL15) M5 0.8 3.8 2.40 50 4 3 15.0 TM3ZT-M06010004504(EL12) M6 1 4.5 3.00 50 6 4 12.0 TM3ZT-M06010004504(EL18) M6 1 4.5 3.00 50 6 4 18.0 TM3ZT-M08012506004(EL16) M8 1.25 6 3.75 60 6 4 16.0 TM3ZT-M08012506004(EL24) M8 1.25 6 3.75 60 6 4 24.0 TM3ZT-M10015007504(EL20) M10 1.5 7.5 4.50 60 8 4 20.0 TM3ZT-M10015007504(EL30) M10 1.5 7.5 4.50 60 8 4 30.0 TM3ZT-M12017509504(EL24) M12 1.75 9.5 5.25 75 10 4 24.0 TM3ZT-M12017509504(EL36) M12 1.75 9.5 5.25 100 10 4 36.0 -
-
