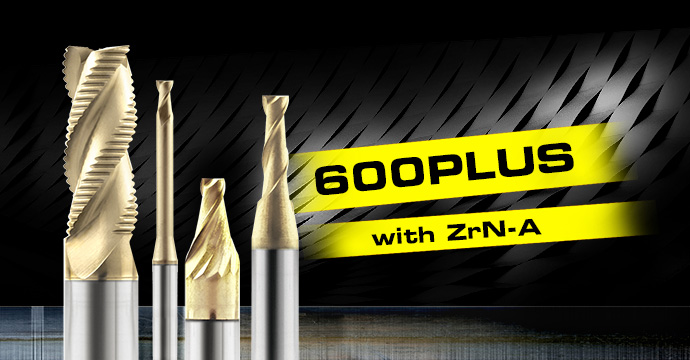

600PLUS - Economy Series, with ZrN-A coating
Product Number：Square, Ball Nose, Corner Radius, Miniature, Long Flute, Long Neck, Long Shank, Taper Flute, Pencil Neck
█Feature: ①Speed Tiger End Mills Type: Square, Ball Nose, Corner Radius, Miniature, Long Flute, Long Neck, Long Shank, Taper Flute, Pencil Neck, Finishing, Roughing...②HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide that is very tough, resists wear and offers high cutting performance ③HIGH-QUALITY - Flutes ground by a world-class ISO-9001 Factory; Great performance at a competitive price ④ZrN-A coating passed through the NANO level, can increase the hardness and wear-resisting, also effectively segregate the stick between the work piece and cutting tool.

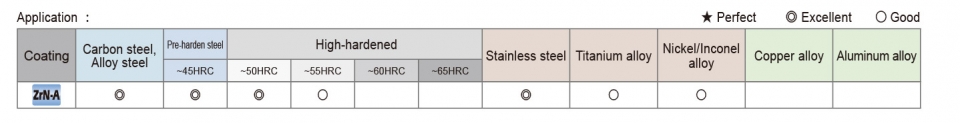

█Application: GENERAL APPLICATION CUTTER - Speed Tiger 600PLUS carbide tools excel at working carbon steels (~HB225), alloy steels (HB225~325), pre-hardened steels (up to HRC45), hardened Steels (HRC40~45), stainless stool.
-
Features
- Maximized rigidity, and chip removals are greatly improved due to special geometric design and reinforced design in cutting edges against chipping at corners.
- Excellent performance of anti-vibration and noise.
- High hardness-used coating, effectively improves tool life and finishes.
Cutting Performance

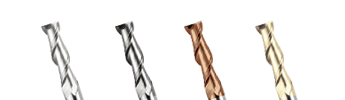

Coating Options
Speed Tiger is not only the largest cutting tools manufacturer, but also the first one that combined milling cutter coating technology in Taiwan. We provide a variety of coating types for different application, you could easily choose the most suitable coating for your work. For detailed coating information, please refer to next tab.
Package & Shipping
Delivery :
Generally, it is 5-7 days if the goods are in stock.
It is 15-20 days if the goods are not in stock, it is according to quantity.
https://www.speedtigertools.com/contact/ -
ZrN-A Coating
Block resistance- Suitable for High Speed machining with both dry and wet cutting way.
- Hardness 2800~3000 HV
- Coefficient of friction: 0.3
- Oxidation Temp: 800~900°C
- High performance coating(Light golden)

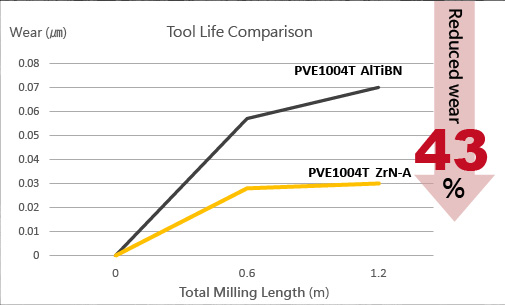

Measured comparison-SUS316
Before the tool is used
Parameter Tool(Coating) PVE 1004 ZrN-A Cutting Material SUS316 Rotation Speed (S) 2644 rpm Milling Speed (Vc) 100 m/min Feed Rate (F) 646 mm/min Depth of cut ap=10mm / ae=10mm (Fz) Feed of teeth 0.062 Machine YCM FV102A Holder BT40 Shrink fit holder The length of Tool Extend 37mm Cooling Way Water
Parameter Tool(Coating) PVE 1004 ZrN-A Cutting Material SUS316 Rotation Speed (S) 2644 rpm Milling Speed (Vc) 100 m/min Feed Rate (F) 646 mm/min Depth of cut ap=10mm / ae=10mm (Fz) Feed of teeth 0.062 Machine YCM FV102A Holder BT40 Shrink fit holder The length of Tool Extend 37mm Cooling Way Water
Coating Total Milling Length (m) 0.6m 1.2m ALTIBN 0.057µm 0.07µm ZrN-A 0.0µm 0.03µm
-
Type Mode Flutes Diameter Photo Dimension Cutting Condition Miniature Square P-MIE 2 0.2mm~3mm
Download Square (35°) P-SSE,P-MSE,P-SE 2 / 4 1mm~20mm
2Flutes-Download
4Flutes-DownloadDownload Square (45°) P-MPE,P-PE 3 / 4 1mm~20mm
3Flutes-Download
4Flutes-DownloadDownload Long Shank Square P-SLE, P-MLE 2/4 6mm~12mm
2Flutes-Download
4Flutes-DownloadDownload Long Flute Square P-LET 2/4 1mm~20mm
2Flutes-Download
4Flutes-DownloadDownload Long Neck Square P-LNT 2 0.5mm~4mm
Download Download Roughing Square P-NTA 3/4 4mm~20mm
3Flutes-Download
4Flutes-DownloadDownload Roughing Square P-XTA 3/4 4mm~20mm
3Flutes-Download
4Flutes-DownloadDownload Taper Square P-TTA 2 0.5mm~10mm
Download Download Taper Long Flute Square P-LTTA 2 1mm~6mm
Download Download Miniature Ball Nose P-MIB 2 0.15R~3R
Download Download Ball Nose P-SSB,P-MSB,P-SB 2 /4 0.5R~10R
2Flutes-Download
4Flutes-DownloadDownload Long Shank Ball Nose P-SL,P-MLB,P-LLB,P-XLB 2 0.5R~8R
Download Download Long Neck Ball Nose P-LNBT 2 0.25R~2R
Download Download Pencil Neck Ball Nose P-PBTA 2 0.5R~4R
Download Download Taper Ball Nose P-TBTA 2 0.5R~1.5R
Download Download Corner Radius P-RTA 2 /4 1mm~12mm
2Flutes-Download
4Flutes-DownloadDownload Long Shank Corner Radius P-LRTA 2 /4 3mm~12mm
2Flutes-Download
4Flutes-DownloadDownload -
