PRODUCTS
RS Series
Product Number：SUMIE, SUPE, SULPE. SULET, SULNT, SUNTA, SUXTA, SUMIB, SUBT, SULBT, SULNBT, SURTA.
█Advantage of RS: ①Improve the tooling and mold life. ②Improve productivity and product quality ③Better surface finish ④Mold release forces ⑤Improved cutting condition. █Application: Dry Cutting, Wet Cutting, General Cutting, and High Speed Cutting Work materials: Cast Iron, Stainless, Titanium Alloy, Carbon Steel, etc.
-
Features
- From finishing and roughing
- From wet and dry cutting
- From Stainless steels, Titanium, Alloy, Cast iron, Mold steels
✓Get simplification ✓Get universal ✓Get efficiency ✓Get reducing cost

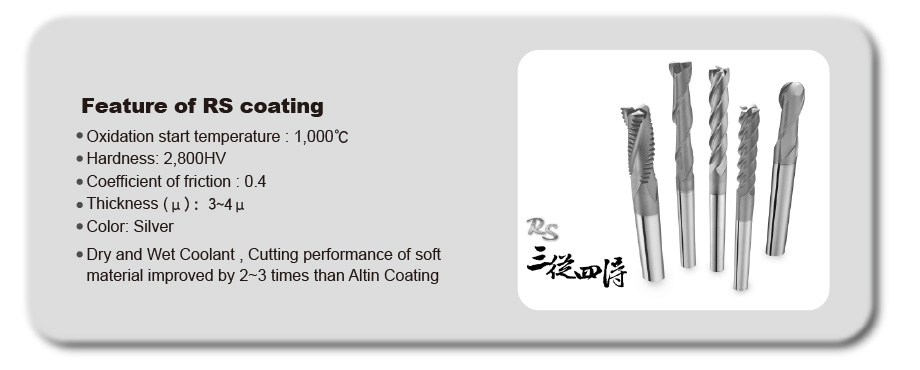

Feature of Rs coating- Oxidation start temperature : 1,000℃Hardness: 2,800HV
- Coefficient of friction : 0.4
- Thickness (µ) ：3~4µ
- Color: Silver
- Dry and Wet Coolant , Cutting performance of soft material improved by 2~3 times than Altin Coating

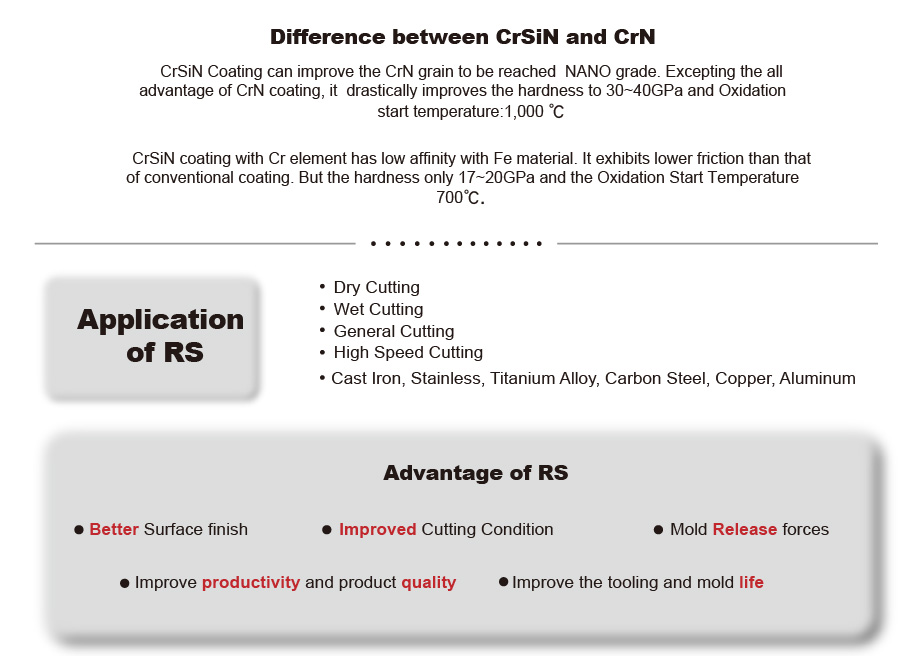

Difference between CrSiN and CrN
CrSiN Coating can improve the CrN grain to be reached NANO grade. Excepting the all advantage of CrN coating, it drastically improves the hardness to 30~40GPa and Oxidation start temperature:1,000 ℃
CrSiN coating with Cr element has low affinity with Fe material. It exhibits lower friction than that
of conventional coating. But the hardness only 17~20GPa and the Oxidation Start Temperature
700℃.
Application of RS- Dry Cutting
- Wet Cutting
- General Cutting
- High Speed Cutting
- Cast Iron, Stainless, Titanium Alloy, Carbon Steel, Copper, Aluminum
- Better Surface finish
- Improved Cutting Condition
- Mold Release forces
- Improve productivity and product quality
- Improve the tooling and mold life
-
-

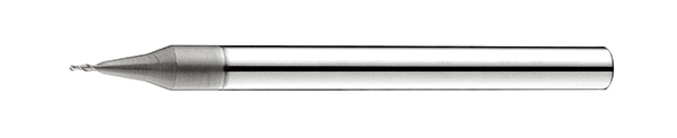

Type Mode Flutes Diameter Photo Dimension Cutting Condition Miniature
Square TypeSUMIE 2 0.2mm~20mm

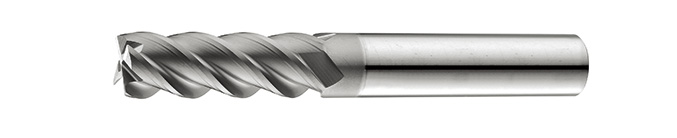

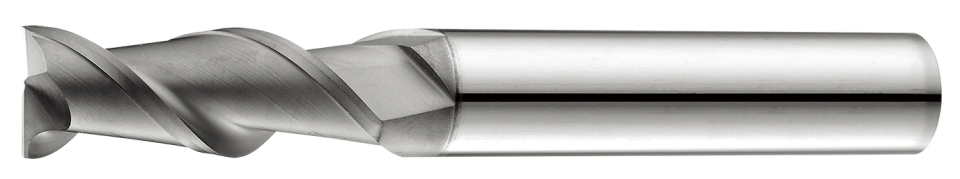

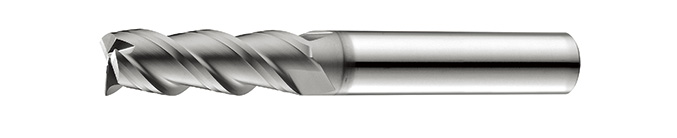

Download Download Square Type SUPE 2 / 3 / 4 1mm~20mm
2Flutes-Download
3Flutes-Download
4Flutes-Download2Flutes-Download
3Flutes-Download

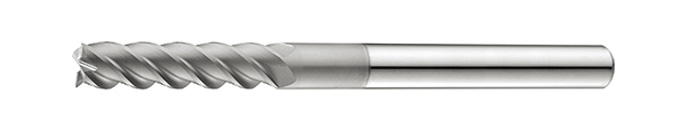

4Flutes-DownloadLong Flute

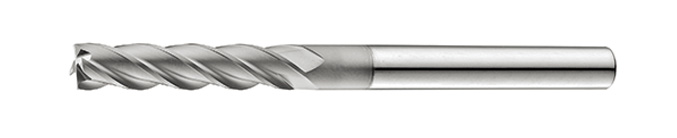

Square TypeSULPE
(45°)4 1mm~20mm

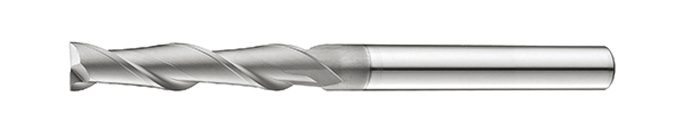

Download Download Long Flute
Square TypeSULET
(35°)2 / 4 1mm~20mm
2Flutes-Download
4Flutes-Download2Flutes-Download

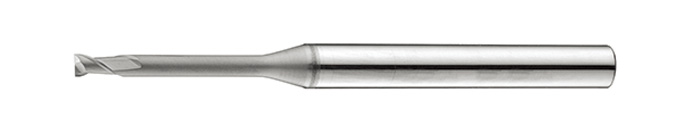

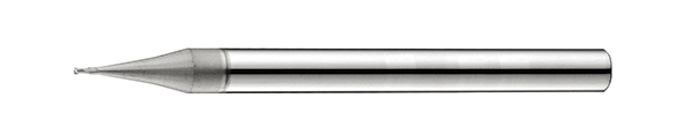

4Flutes-DownloadLong Neck
Square TypeSULNT 2 0.5mm~4mm

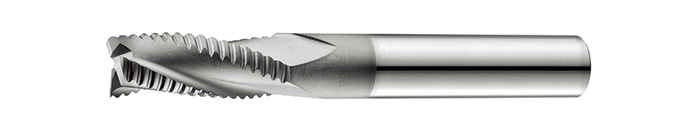

Download Download Fine Pitch

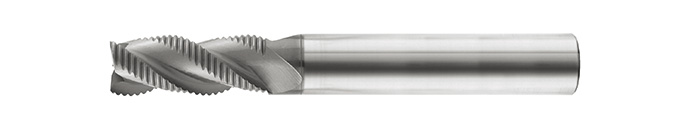

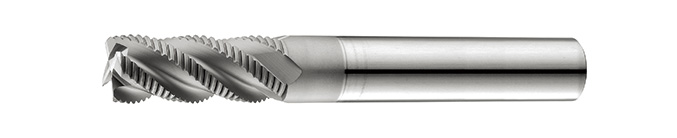

Roughing TypeSUNTA 3 / 4 4mm~20mm
3Flutes-Download
4Flutes-Download3Flutes-Download

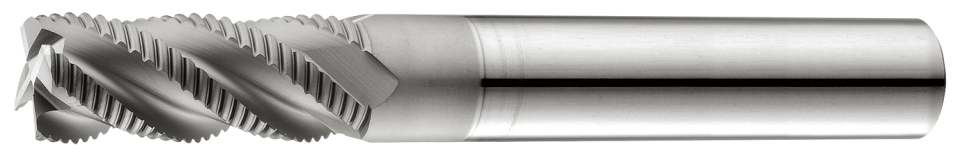

4Flutes-DownloadRoughing Type SUXTA 3 / 4 4mm~20mm
3Flutes-Download
4Flutes-Download3Flutes-Download
4Flutes-DownloadMiniature Ball
Nose TypeSUMIB 2 0.3mm~3mm

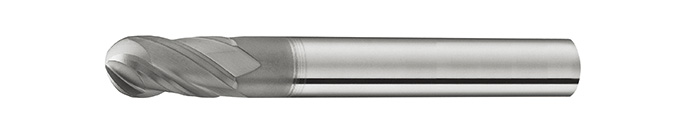

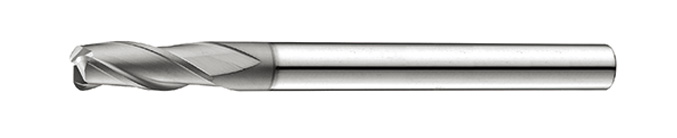

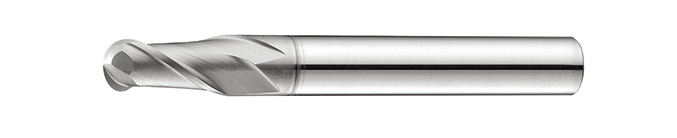

Download Download Ball Nose Type SUBT 2 / 4 1mm~20mm
2Flutes-Download
4Flutes-Download2Flutes-Download

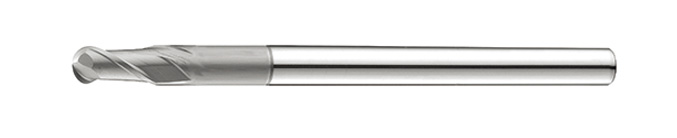

4Flutes-DownloadLong Shank
Ball Nose TypeSULBT 2 1mm~16mm

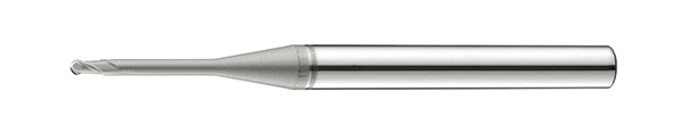

Download Download Long Neck
Ball Nose TypeSULNBT 2 0.5mm~4mm
Download Download Corner Radius Type SURTA 3 2mm~12mm
Download Download -
-
