AeroSpace High Speed Series for Aluminum

Product Number：S-AUE, AAS,AA, AAL,CMF,CA-AA,CR-AA

█Features: ①HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide that is very tough, resists wear and offers high cutting performance ②HIGH-QUALITY - Flutes ground by a world-class ISO-9001 Factory ③ DLC Coating: longer tool life. █Application: Copper Alloy / Aluminum / Plastic / Wood

Add Inquiry

Features Coating Specification Cutting Video Contact Us

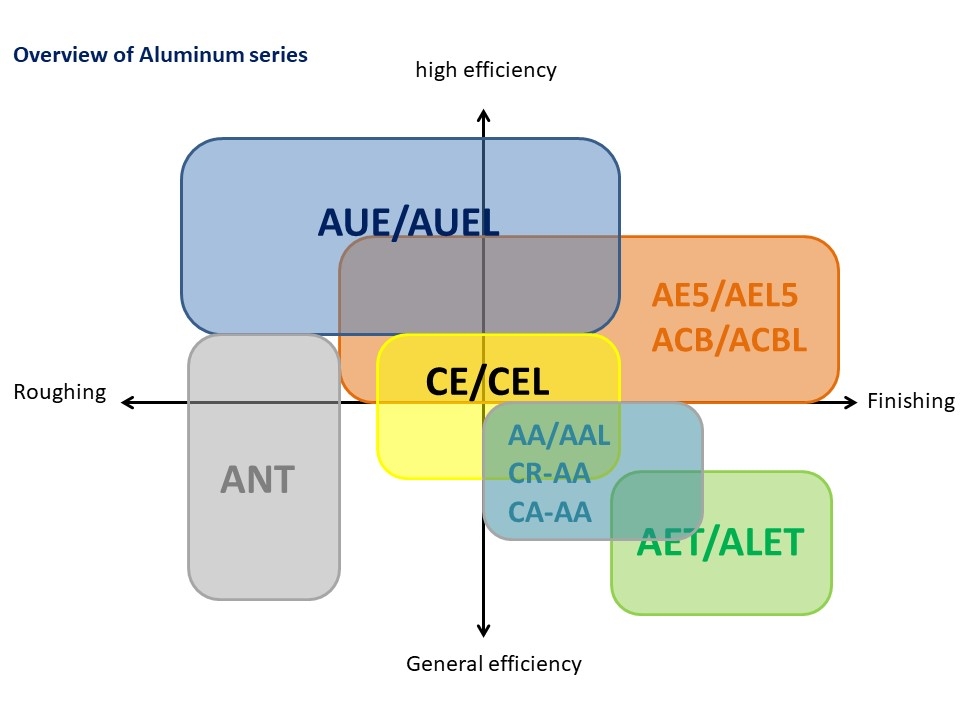

Overview of Non-ferrous series

For detailed tool types, please refer to "Specification".

S-AUE

1. With Speed Tiger exclusive TB Tetrabonf Diamond Coating. Super High lubrication, super low friction coefficient, and longer tool life.
2. Special U-Type design: Material removal rate (MRR) and surface finishes are greatly improved due to effective chip removal at high rate.
3. Strong tooth with double relief angles: Excellent production rates become 100% possible due to the improvement of tooth hardness.
4. Sharp aluminum alloy tooth design applicable for roughing and finishing, dry and cutting.

Package & Shipping

Delivery :
Generally, it is 5-7 days if the goods are in stock.
It is 15-20 days if the goods are not in stock, it is according to quantity.

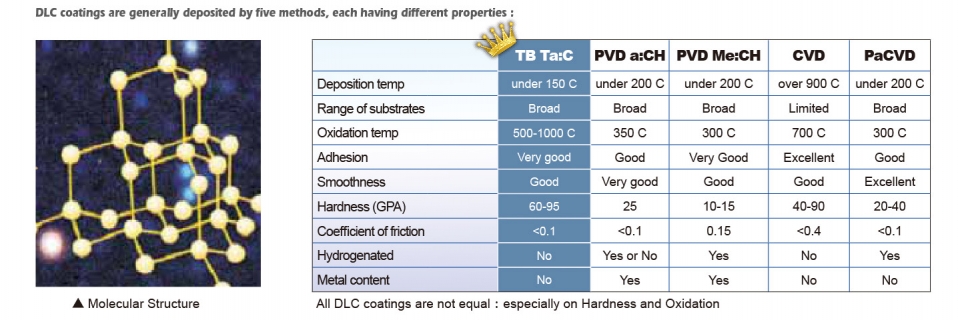

TB Coating (DLC)
Super high lubrication & Super low friction coefficient
New PVD Nano Technology

The tool is long life to be surprised because TB hardness to near the nature diamond coating
Swiss & Speed Tiger Technological Cooperation.
- Nano-composite coating which is improved the lubricative property without making the abrasive property lower by new coating material of nano-crystal.
- Excellent cutting is reached in machining non-ferrous materials, especially in aluminumwith over six multiple in machining eﬃciency. Long tool life and precision machining in PCB boards, Brass, Titanium, Ceramics, Fiberglass etc.
- Dry cutting applicable, because of less cutting heat by improving friction property very much and wet cutting applicable.
TETRABOND reduces manufacturing cost through:

Higher Speeds & Feeds ➜ Improve productivity
Reduced Tool Inventory ➜ Tool cost savings
Longer Tool Life ➜ Reduced downtime
Improved Part Quality ➜ Less scrap

TETRABOND is an excellent choice for machining non-ferrous materials such as:

High silicon content aluminium alloys
Aluminium magnesium matrix materials
Titanium 6Al4V
Epoxy resins
Fibreglass and composites
Plastic
Graphite
Brass and bronze
Ceramics

TETRABOND Advantages.
- No substrate preparation required
- Suitable for HSS and carbide cutter
- Able to strip and recoat without damaging the substrate
- Thin coating maintains sharp edges

Type	Mode	Flutes	Diameter	Dimension	Cutting Condition
High Feed U-Type-Aluminum-For Slotting	S-AUE	3	6mm~12mm	Download	Download
High Speed Square Type For Aluminum	AA,AAS	3	2mm~20mm	Download	Download
Long Neck-Square Type	AAL	3	2mm~20mm	Download	Download
Corner Radius Type	CMF	2	2mm~20mm	Download	Download
Corner Radius Type	CA-AA	3	3mm~20mm	Download	Download
Corner Radius Type	CR-AA	3	3mm~10mm	Download	Download

AUE PLUS
