PRODUCTS
Titanium Nickel Alloy
Product Number：PVE, PVES, PVEM, PVEL, PVEC, PVB, PVBSX, PVR

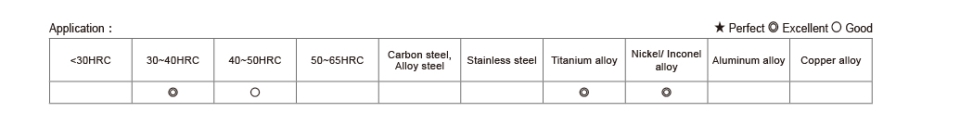

█Features: ①UNEQUAL FLUTE SPACING AND HELIX DESIGN - Anti-Vibration, Improves Chip Disposal, Prevents Burr, Excellent Surface. ②HIGH PERFORMANCE FOR HARD MATERIALS - Micro Grain Carbide that is very tough, resists wear, and is good for cutting. ③AlTiBN COATING - Titanium aluminum boron nitride (AlTiBN) coating lubricates the end mill for stability at high temperature and superior wear resistance at high cutting speeds, offering better heat resistance than TiAlN, TiN or TiCN coatings. ④HIGH QUALITY - Flutes ground by a world-class ISO-9001 Factory; Great performance at a competitive price. █Application: Titanium alloy.
-
Features
- Strong edge to prevent chipping at corners.
- Unequal Flute Spacing,A≠B Irregular Helix Flutes, α≠β Ensures stable machining of difficult-to-cut-materials, and achieve high efficient performance.
- Tool diameter tolerance 0~-0.02mm.
- Special flute geometry to improve chip disposal.
- Superior wear and chipping resistance due to optimally matched coating and carbide material.
✓ Less chatter and high effieciency finishing.
✓ Reduce metal burr when machining.

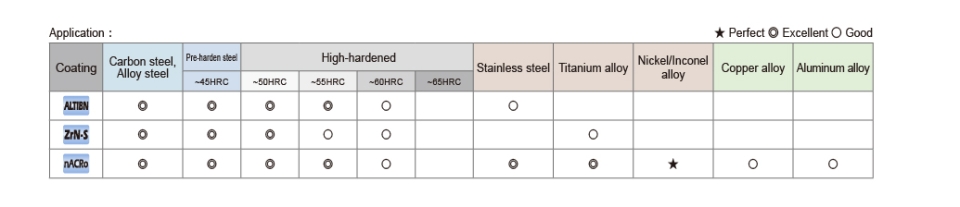

Coating Options
Standard Type
High-Performance Type
-
Standard Type
Type Mode Flutes Diameter Photo Dimension Cutting Condition Square Type PVE 4 3mm~25mm
Download Download Square Type-Short Flute/Medium Flute/Long Flute PVES,PVEM,PVEL 4 6mm~20mm
Download Download Square Type-Heavy Duty PVEC 4 6mm~20mm

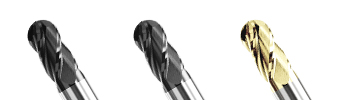

Download Download Ball Nose Type / Long Flute & Neck PVB,PVBSX 4 6mm~16mm
Download Download Corner Radius Type PVR 4 3mm~25mm
Download Download High-Performance Type
TypeMode Flutes Diameter Photo Dimension Cutting Condition Square Type / Long Flute PVE1T,PLVE1T 4 4mm~20mm
Download Download Square Type-Efficient Length PNVE1T 4 4mm~16mm
Download Square Type-Finishing PVE1TF 4 4mm~20mm
Download Corner Radius PVR1T 4 4mm~20mm
Download -
-
-
