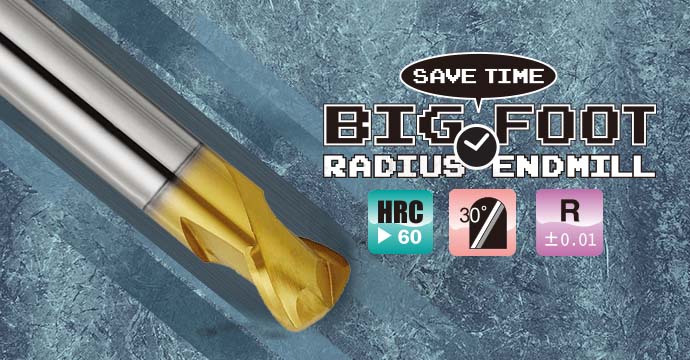

BFR Double Removal Rate-Corner Radius End Mill - 2 Flutes
Product Number：BFR
█Features: ① Time-saving in procession High efficiency is equal to one size larger ball. ②High efficiency ③High accuracy ④A powerful roughing is available. ⑤Highly accurate finish cutting is possible. ⑥Developed Nano SH Coating of high adhesion and high hardness is adopted. █Application: ~HRC60/ Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel
-
Features
Super High Hardness & Super High Speed Cutting End Mills Series
Application: ~HRC60/ Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel
- Smooth radiul relief
- Superior wear and chipping resistance due to optimally matched coating and carbide material
- High efficient
- High accuracy
- Tool diameter tolerance
- 0~-0.02mm for all size
- Long tool life
- A new SH AlTin coating
High Efficiency and precision in machining
Shorten by 20 to 50 % of time
High energy efficiency in machining
Ellipse shaped, increase the cutting’s contact area
Cutting Data
Method 1
Super smooth finished surface
Method 2
High efficiency milling by oval nose instead of ball end mill
Method 3
The efficiency is equal to one size larger ball
By inputting radius mill approximate corner R,insert R cutting remains processing as shownright is possible for roughing procedures. -
SH Coating
Coating Material System Application Typical Thickness (µm) Hardness （HV） Oxidation Temp. (°C) Coefficient of Friction Color AlTiN SH Multilayer Nano High speed machining, High Hardness 2~4 3600 1200 0.34 Golden AlTiN SS Multilayer Nano High speed machining, dry or wet cutting, soft steel 2~4 3300 900 0.30 Silver
Why do we coat “Super Hard Altin”? We called SH Altin!BFR demand coatings SH because SH coatings:
Reduce customers costs- Longer tool life
- Less manufacturing down time
- Tools work faster / more production per hour
- Reduced tool inventories
- Reduction or elimination of coolants / release agents
Improve quality- Less scrap
-
Spec. Download
Cutting Condition Download

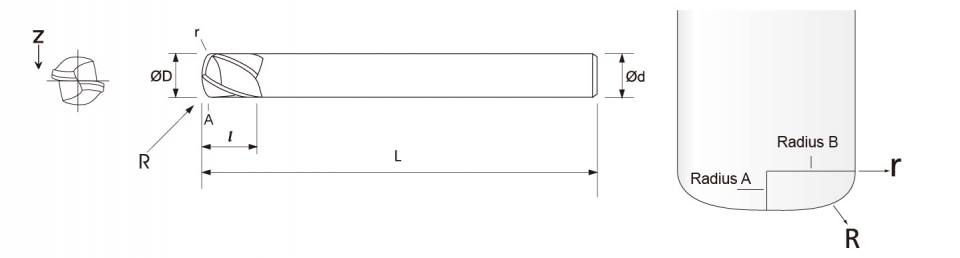

MODE Diameter Corner Radius Radius A Radius B Corner(r) Flute
LengthFull
LengthShank
DiameterFlutes BFR06050 6 5 0.66 3 2 7 60 6 2 BFR06051 6 5 0.66 3 2 7 100 6 2 BFR06060 6 6 0.66 3 1.5 7 60 6 2 BFR06061 6 6 0.66 3 1.5 7 100 6 2 BFR08080 8 8 0.88 4 2 9 60 8 2 BFR08081 8 8 0.88 4 2 9 100 8 2 BFR10100 10 10 0.9 5 3 11 75 10 2 BFR10101 10 10 0.9 5 3 11 100 10 2 BFR12120 12 12 1.6 6 3 13 75 12 2 BFR12121 12 12 1.6 6 3 13 100 12 2 BFR12150 12 15 0.91 6 3 15 75 12 2 BFR12151 12 15 0.91 6 3 15 100 12 2 BFR16160 16 16 1.77 8 4 18 150 16 2 BFR16200 16 20 1.5 8 3 22 150 16 2 -
