IPVE Carbide Square End Mill for Stainless Steel
Product Number：IPVE
█Feature: ①Ultra Fine Micro Grain Carbide raw material with the most suitable flute geometry ensure to improve chip disposal and rigidity.②HIGH PERFORMANCE - Unequal flute spacing and irregular helix flutes ensure stable machining of difficult-to-cut materials and higher efficiency. ③ANTI-VIBRATION, LESS CHATTER, REDUCED BURRING - Vibration absorption provides stability, high-efficiency finishing, and improved chip disposal. █Application: Stainless Steel, ~HRC55/ Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel
-
Features

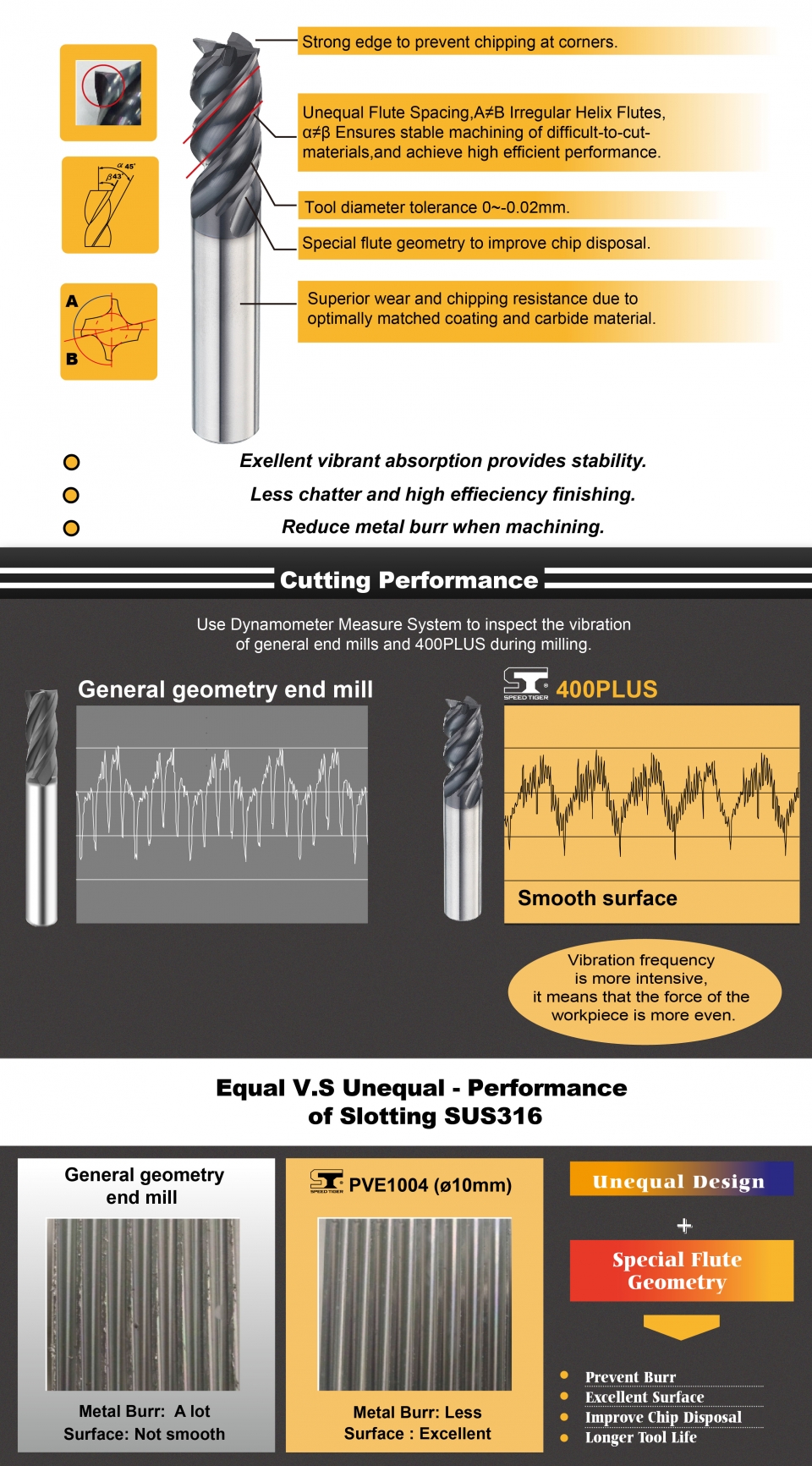

- Strong edge to prevent chipping at corners.
- Unequal Flute Spacing,A≠B Irregular Helix Flutes, α≠β Ensures stable machining of difficult-to-cut-materials, and achieve high efficient performance.
- Tool diameter tolerance 0~-0.02mm.
- Special flute geometry to improve chip disposal.
- Superior wear and chipping resistance due to optimally matched coating and carbide material.
✓ Exellent vibrant absorption provides stability.
✓ Less chatter and high effieciency finishing.
✓ Reduce metal burr when machining.

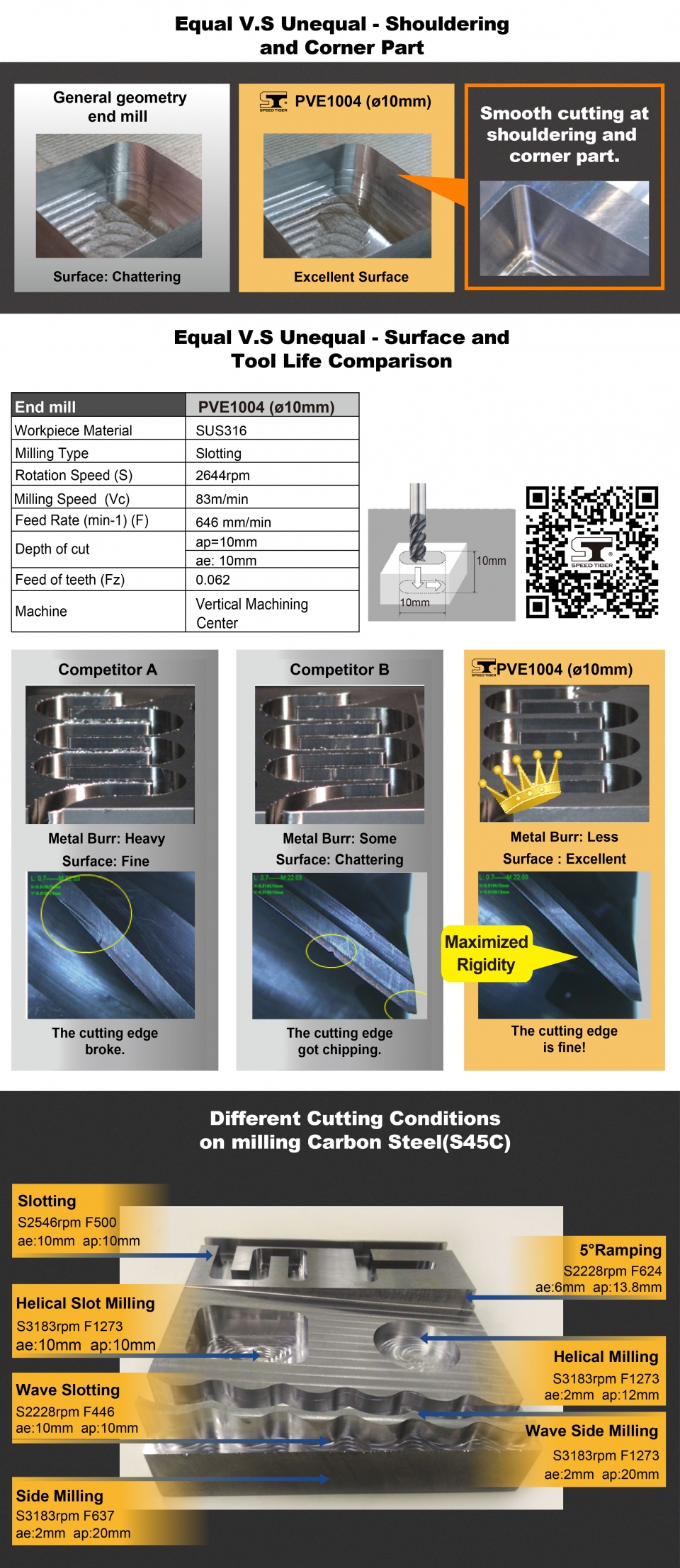

Different Cutting Condition on milling Carbon Seel (S45C)- Slotting
- Helical Slot Milling
- Wave Slotting
- Side Milling
- 5°Ramping
- Helical Milling
- Wave Side Milling

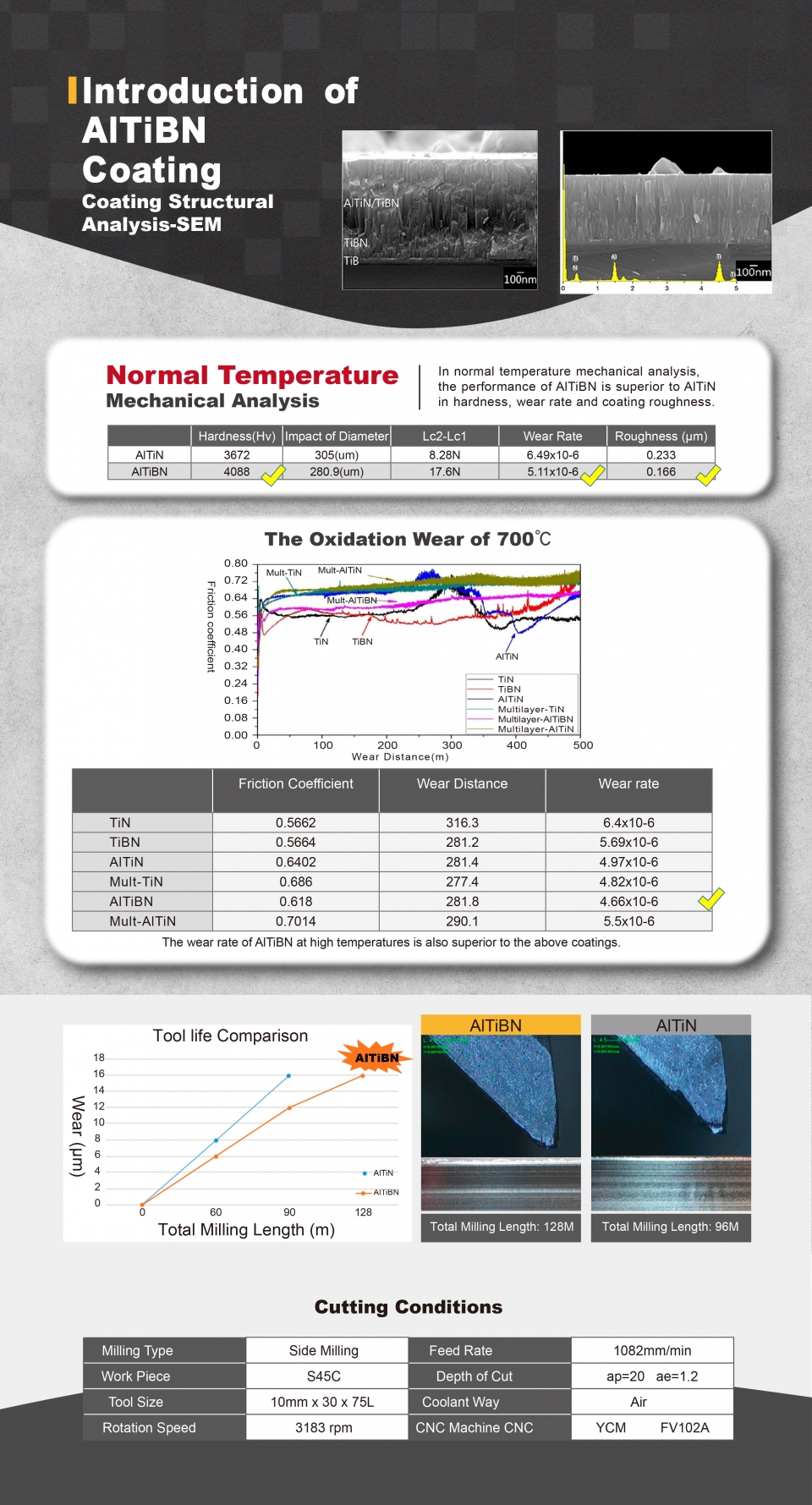

ALTIBN Coating
Coating Structural Analysis-SEM
Normal Temperature Mechanical Analysis
In normal temperature mechanical analysis,the performance of AlTiBN is superior to AlTiN in hardness, wear rate and coating roughness.Hardness (Hv) Impact of Diameter Lc2-Lc1 Wear Rate Roughness (µm) AlTiN 3672 305(um) 8.28N 6.49x10-6 0.233 AlTiBN 4088 280.9(um) 17.6N 5.11x10-6 0.166
The Oxidation Wear of 700°C
Fiction Coefficient Wear Distance Wear rate TiN 0.5662 316.3 6.4x10-6 TiBN 0.5664 281.2 5.69x10-6 AlTiN 0.6402 281.4 4.97x10-6 Multi-TiN 0.686 277.4 4.82x10-6 ALTIBN 0.618 281.8 4.66x10-6 Mult-ALTiN 0.7014 290.1 5.5x10-6
Tool Life Comparison and Cutting Edges
Milling Type Side Milling Feed Rate 1082mm/min Work Piece S45C Depth of Cut ap=20 ae=1.2 Tool Size 10mm x 30 x 75L Coolant Way Air Rotation Speed 3183 rpm CNC Machine CNC YCM FV102A Customer Reviews

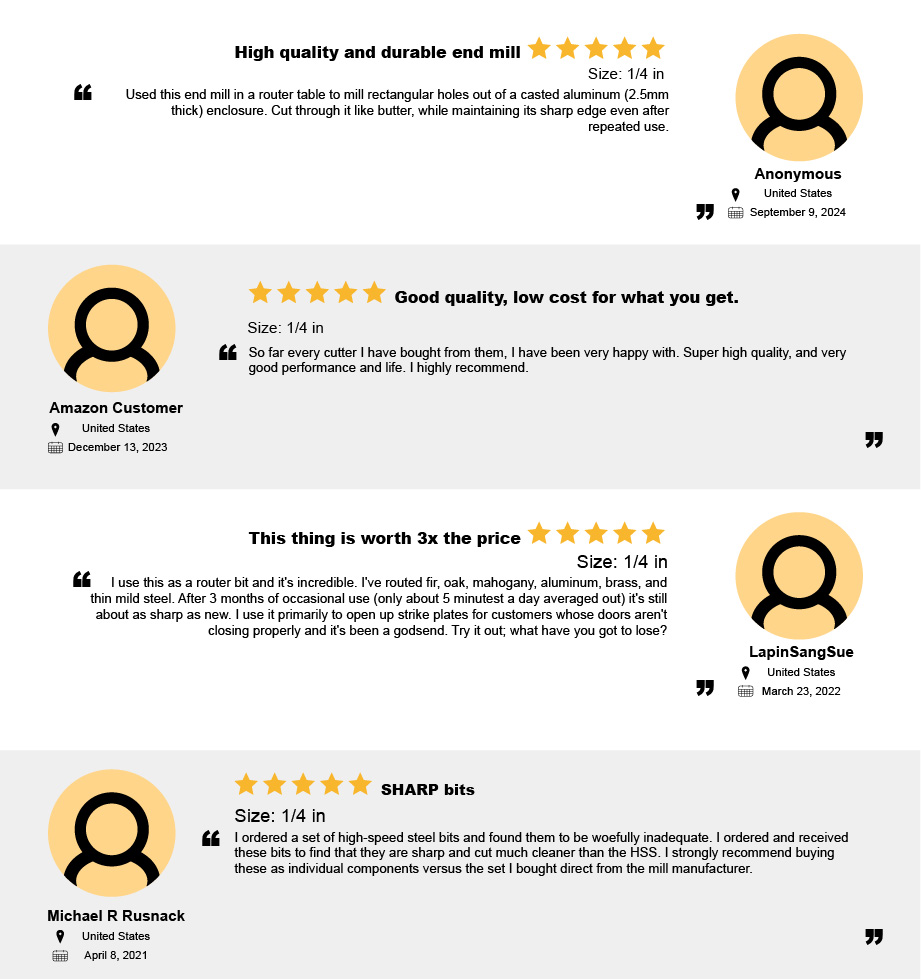

High quality and durable end mill ⭐⭐⭐⭐⭐
Size:1/4 in
"Used this end mill in a router table to mill rectangular holes out of a casted aluminum (2.5mm thick) enclosure. Cut through it like butter, while maintaining its sharp edge even after repeated use."
-----Anonymous from United States on September 9, 2024
Good quality, low cost for what you get. ⭐⭐⭐⭐⭐
Size:1/4 in
"So far every cutter I have bought from them, I have been very happy with. Super high quality, and very good performance and life. I highly recommend."
-----Amazon Customer from United States on December 13, 2023
This thing is worth 3x the price ⭐⭐⭐⭐⭐
Size:1/4 in
"I use this as a router bit and it's incredible. I've routed fir, oak, mahogany, aluminum, brass, and thin mild steel. After 3 months of occasional use (only about 5 minutest a day averaged out) it's still about as sharp as new. I use it primarily to open up strike plates for customers whose doors aren't closing properly and it's been a godsend. Try it out; what have you got to lose?"
-----LapinSangSue from United States on March 23, 2022

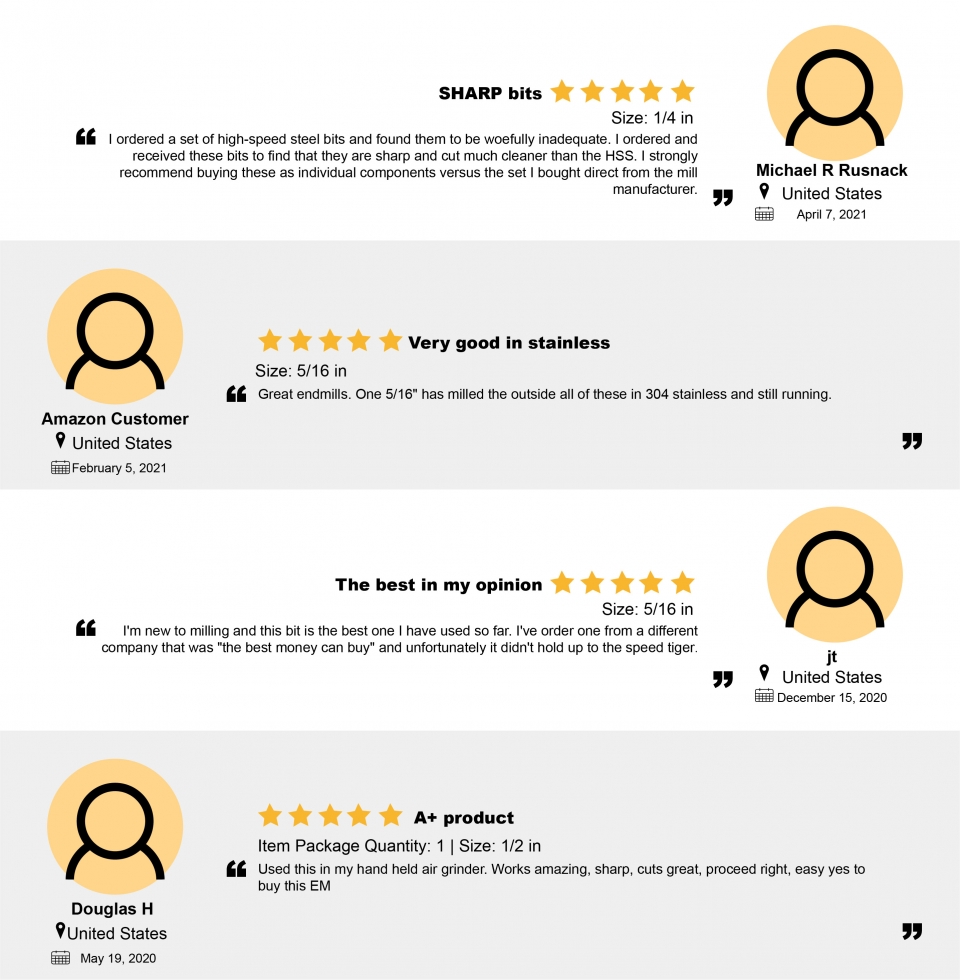

SHARP bits ⭐⭐⭐⭐⭐
Size:1/4 in
"I ordered a set of high-speed steel bits and found them to be woefully inadequate. I ordered and received these bits to find that they are sharp and cut much cleaner than the HSS. I strongly recommend buying these as individual components versus the set I bought direct from the mill manufacturer."
-----Michael R Rusnack from United States on April 8, 2021 -
MODE Diameter Flute
LengthFull
LengthShank
DiameterFlutes Specification
DownloadIPVE1/4"4 1/4'' 1/2'' 2-1/2'' 1/4'' 4 Download
Cutting
Condition
DownloadIPVE5/16"4 5/16'' 13/16'' 2-1/2'' 5/16'' 4 IPVE3/8"4 3/8'' 7/8'' 2-1/2'' 3/8'' 4 IPVE1/2"4 1/2'' 1'' 3'' 1/2'' 4 IPVE5/8"4 5/8'' 1-1/4'' 3-1/2'' 5/8'' 4 -
-
-
