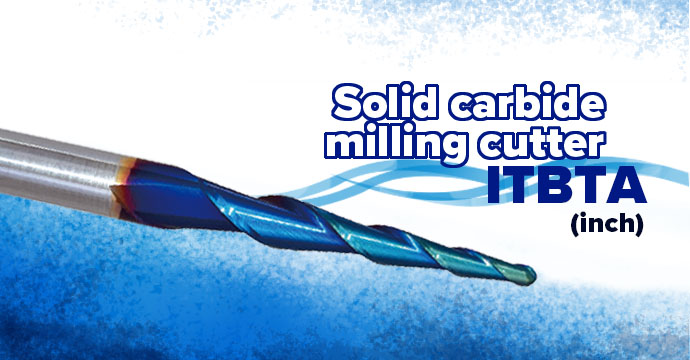

ITBTA Taper Ball Nose End Mill - 2 Flutes
Product Number：ITBTA
█Features: ①HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide that is very tough, resists wear and offers high cutting performance. ②nACo COATING - Titanium aluminum silicon nitride (AlTiSiN) coating lubricates the end mill for stability at high temperature and superior wear resistance at high cutting speeds, offering better heat resistance than TiAlN, TiN or TiCN coatings ③ HIGH-QUALITY - Flutes ground by a world-class ISO-9001 Factory; Great performance at a competitive price. █Application: GENERAL APPLICATION CUTTER - Speed Tiger 600 Nano carbide tools excel at working carbon steels (~HB225), alloy steels (HB225~325), pre-hardened steels (up to HRC45), hardened Steels (HRC40~45), cast iron.
-

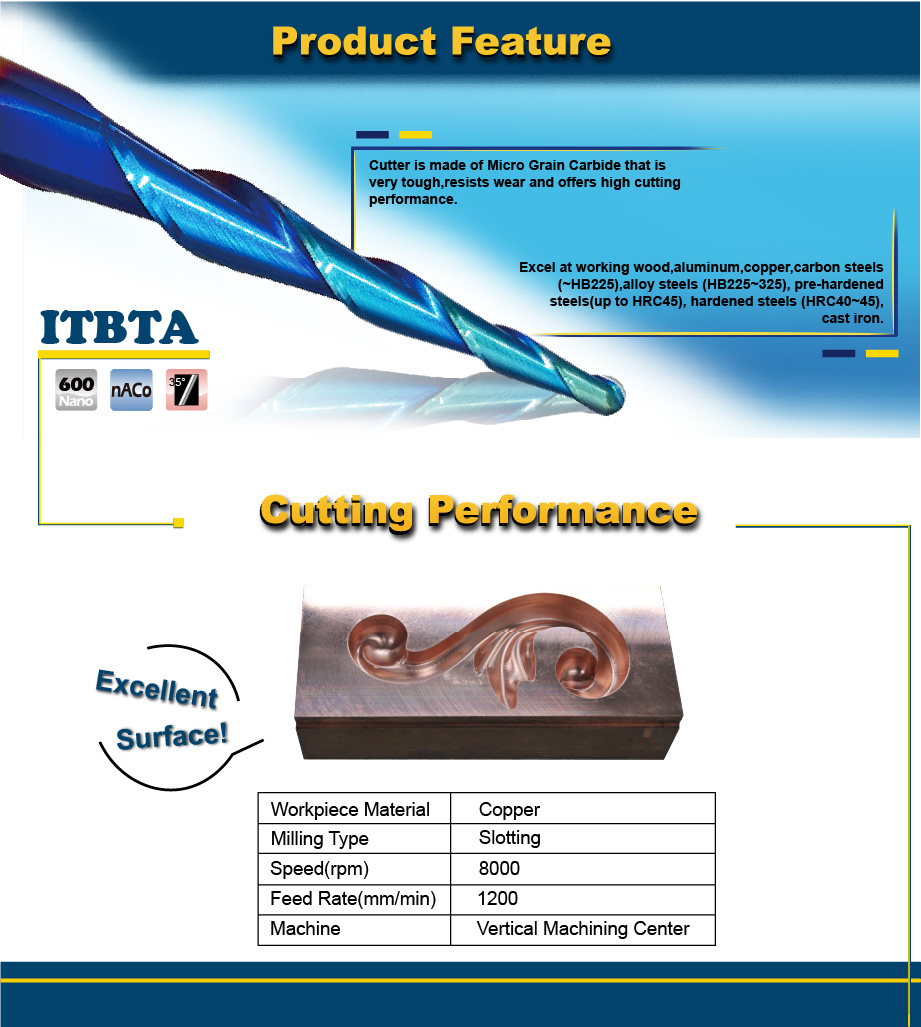

Features
- Excel at working wood,aluminum,copper,carbon steels(~HB225),alloy steels (HB225~325), pre-hardened steels(up to HRC45), hardened steels (HRC40~45),cast iron.
- HIGH PERFORMANCE FOR HARD MATERIALS -Cutter is made of Micro Grain Carbide that is very tough,resists wear and offers high cutting performance
Workpiece Material Copper Milling Type Slotting Speed(rpm) 8000 Feed Rate(mm/min) 1200 Machine Vertical Machining Center -
nACo Coating
nACo Nanocomposite coating process.- Perfect coating structure.
- High hardness.
- High adhesion.
- Adding Si into nACo structure makes atom structuremore completed with high hard-wearing and tools with more longer life.
AlTiN vs nACo comparisonS.T Coating Typical Thickness(£g) Nanohardness up to (GPa) Max Service Temp(¢J) Friction coefficient AlTiN 2~4 35 800 0.6 nACo 2~4 45 1200 0.35
-
Series Catalogue Download
MODE Diameter
(mm)Radius
(mm)Flute Length Full Length Shank
DiameterSingle Side Angel Flutes ITBTA0250526 ALTIBN 0.5 0.25 1-1/4'' 3'' 1/4'' 5.26 2 ITBTA0500482 ALTIBN 1 0.5 1-1/4'' 3'' 1/4'' 4.82 2 ITBTA1000392 ALTIBN 2 1 1-1/4'' 3'' 1/4'' 3.92 2
-
-
