ISE Square End Mill - 4 Flutes
Product Number：ISE 600Nano End Mills General Application, Diameter：1/16

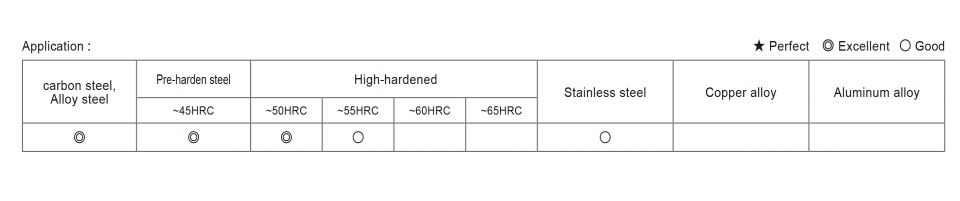

█Features: ①HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide that is very tough, resists wear and offers high cutting performance ②AlTiBN COATING - Titanium aluminum boron nitride (AlTiBN) coating lubricates the end mill for stability at high temperature and superior wear resistance at high cutting speeds, offering better heat resistance than TiAlN, TiN or TiCN coatings ③HIGH-QUALITY - Flutes ground by a world-class ISO-9001 Factory; Great performance at a competitive price █Application: GENERAL APPLICATION CUTTER - Speed Tiger 600 Nano carbide tools excel at working carbon steels (~HB225), alloy steels (HB225~325), pre-hardened steels (up to HRC45), hardened Steels (HRC40~45), cast iron
-

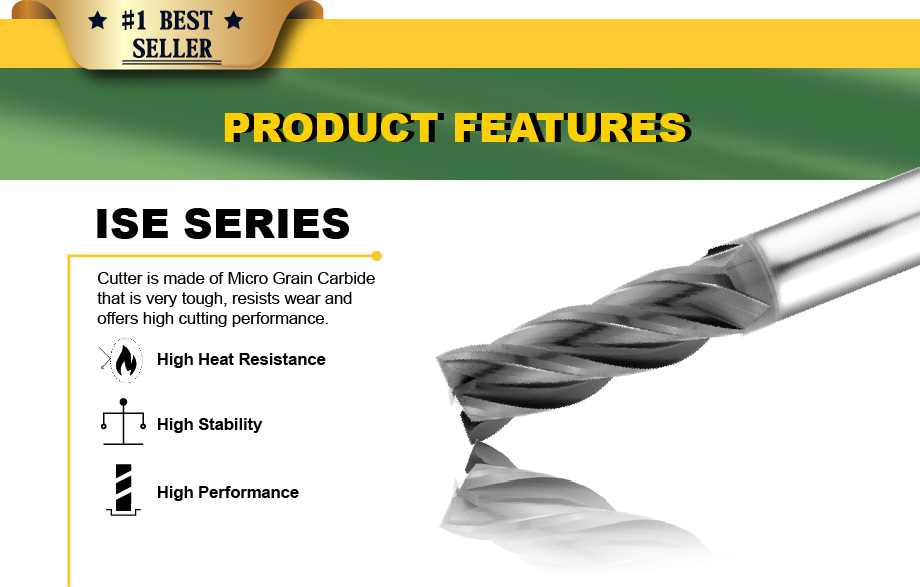

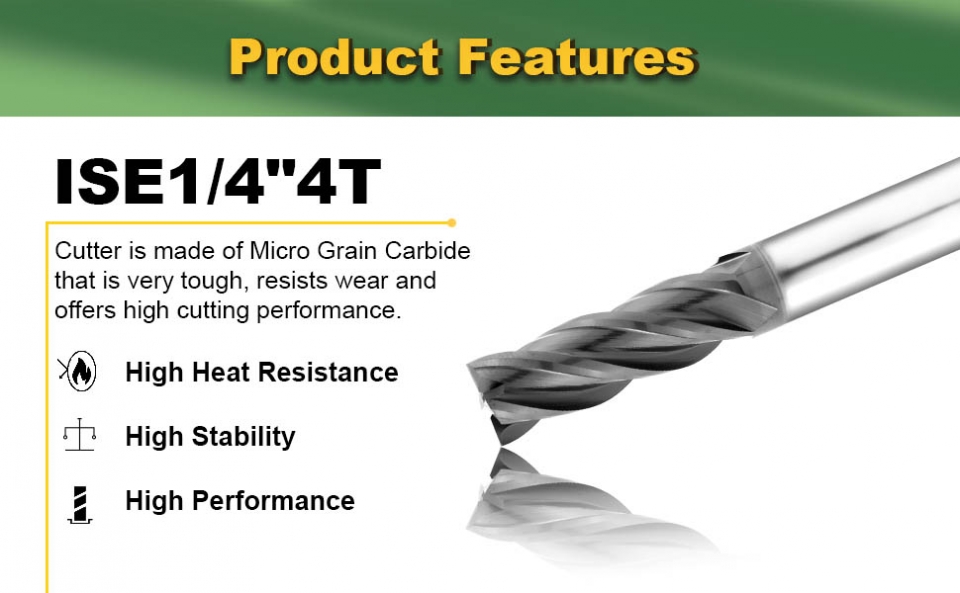

Cutter is made of Micro Grain Carbide that is very tough, resists wear and offers high cutting performance.- High Heat Resistance
- High Stability
- High Performance

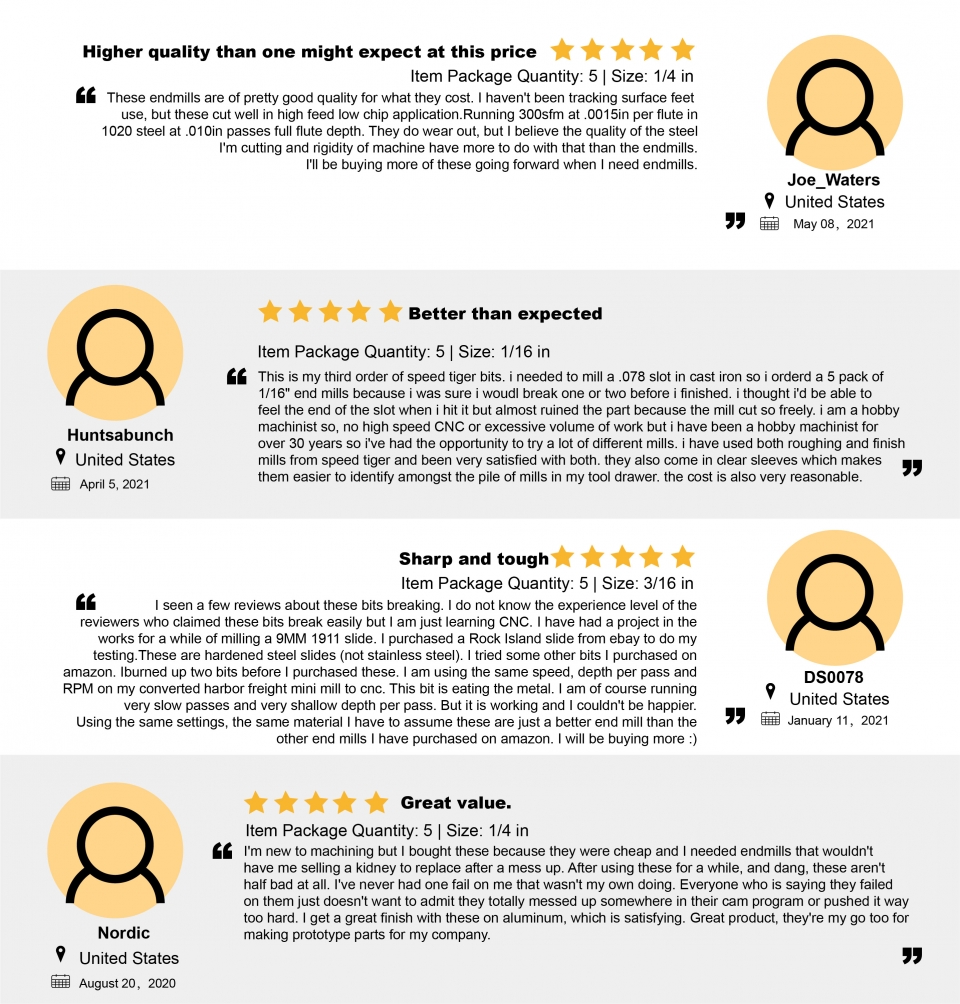

Customer Reviews
Higher quality than one might expect at this price ⭐⭐⭐⭐⭐
Item Package Quantity: 5 | Size:1/4 in
''These endmills are of pretty good quality for what they cost. I haven't been tracking surface teet use, but these cut well in high feed low chip application. Running 300sfm al 0015in per fute in 1020 steel at 010in passes ful flute depth. They do wear out, but I believe the qualty of the steel I'm cutting and rigidity of machine have more to do with that than the endmils. It be buying more of these going forward when I need endmils.''
-----Joe_Waters from United States on May 08, 2021
Better than expected ⭐⭐⭐⭐⭐
Item Package Quantity: 5 | Size:1/16 in
''This is my third order of speed tiger bits. i needed to mill a 078 siot in cast iron so i orderd a 5 peck of 1/16 end mills because i was sure i woudl break one or two before i finished, i thought id be atla to feel the end of the slot when i hit al but almost ruined the part because the mill cut so freely, i am a hobby machinist so, no high speed CNC or excessive volume of work but I have been a hobby machinist for over 30 years so tve had the opportunity to try a lot of different mills. I have used bot roughing and finish mills from speed tiger and been very satisfied with both, they also come in clear sleeves which makes . them easier to identify amongst the pile of mils in my tool drawer, the cost is also very reasonable.''
-----Huntsabunch from United States on April 5, 2021
Sharp and tough ⭐⭐⭐⭐⭐
Item Package Quantity: 5 | Size:3/16 in
''I seen a few reviews about these bits treeking. I do not know the experience level of the
reviewers who claimed these bts break easily but I am just leaming CNC. I have had a project in the works for a while of milling a 9MM 1911 side, 1 purchased a Rock Island slide from ebay to do my lesting.These are hardened steel slides (not stainless steel). I tried some other bes i purchased on amazon, Ibumed up two bits before I purchased these. I am using the same speed, depth per pass and RPM on my converted harbor freight mini mill to cric. This bit is eating the metal. I am of course running very slow passes and very shallow depth per pass. But it is working and I couldnt be happier. Using the same setings, the same material I have to assume these are just a better end mill than the other and mills I have purchased on amazon. I wil be buying more :)''
-----DS0078 from United States on January 11, 2021
Great value. ⭐⭐⭐⭐⭐
Item Package Quantity: 5 | Size:1/4 in
''I'm new to machining but I bought these because they were cheap and I needed endmills that wouldnt. have me selling a kidney to replace after a mess up. After using these for a while, and dang, these aren't half bad at all. I've never had one fall on me that washt my own doing. Everyohe who is saying they faled on them just doesn't want to admit they totally messed up somewhere in their cam program or pushed it way too hard. I get a great finish with these on aluminum, which is satsfying. Great product, they're my go too for making protolype parts for my company.''
-----Nordic from United States on August 20, 2020
Best Value For Carbide End Mill on Amazon
-
ALTIBN Coating
Coating Structural Analysis-SEM
Normal Temperature Mechanical Analysis
In normal temperature mechanical analysis,the performance of AlTiBN is superior to AlTiN in hardness, wear rate and coating roughness.Hardness (Hv) Impact of Diameter Lc2-Lc1 Wear Rate Roughness (µm) AlTiN 3672 305(um) 8.28N 6.49x10-6 0.233 AlTiBN 4088 280.9(um) 17.6N 5.11x10-6 0.166
The Oxidation Wear of 700°C
Fiction Coefficient Wear Distance Wear rate TiN 0.5662 316.3 6.4x10-6 TiBN 0.5664 281.2 5.69x10-6 AlTiN 0.6402 281.4 4.97x10-6 Multi-TiN 0.686 277.4 4.82x10-6 ALTIBN 0.618 281.8 4.66x10-6 Mult-ALTiN 0.7014 290.1 5.5x10-6
Tool Life Comparison and Cutting Edges
Milling Type Side Milling Feed Rate 1082mm/min Work Piece S45C Depth of Cut ap=20 ae=1.2 Tool Size 10mm x 30 x 75L Coolant Way Air Rotation Speed 3183 rpm CNC Machine CNC YCM FV102A -
MODE Diameter Flute
LengthFull
LengthShank
DiameterFlutes Specification
DownloadISE1/16"4T 1/16 3/16 1-1/2 1/8 4 Download
Cutting
Condition
DownloadISE5/64"4T 5/64 3/16 1-1/2 1/8 4 ISE3/32"4T 3/32 9/32 1-1/2 1/8 4 ISE7/64"4T 7/64 3/8 1-1/2 1/8 4 ISE1/8"4T 1/8 3/8 1-1/2 1/8 4 ISE3/16"4T 3/16 5/8 2 3/16 4 ISE1/4"4T 1/4 3/4 2-1/2 1/4 4 ISE5/16"4T 5/16 13/16 2-1/2 5/16 4 ISE3/8"4T 3/8 1 2-1/2 3/8 4 SE1/2"4T 1/2 1 3 1/2 4 ISE5/8"4T 5/8 1-1/4 3-1/2 5/8 4 -
-
