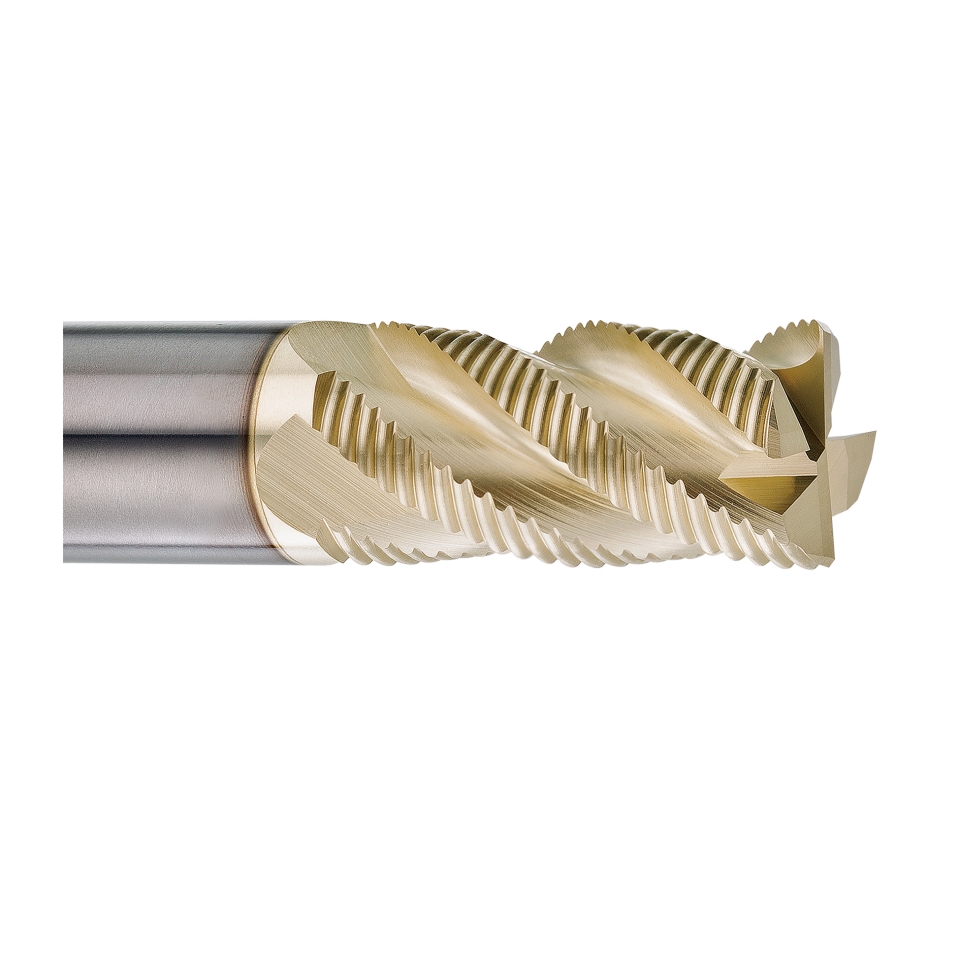

INTA Carbide Spiral CNC Router Bits - Rougher
Product Number：INTA
█Feature: ①HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide which is very tough, resists wear and offers high cutting performance.②HIGH-QUALITY - Flutes are grounded in a world-class ISO-9001 Factory; Great performance at a competitive price.
█Application:Composite Materials - Speed Tiger carbide tools excel at working wood, MFC, MDF, Plywood, Hardwoods, and Softwoods.
-
Features

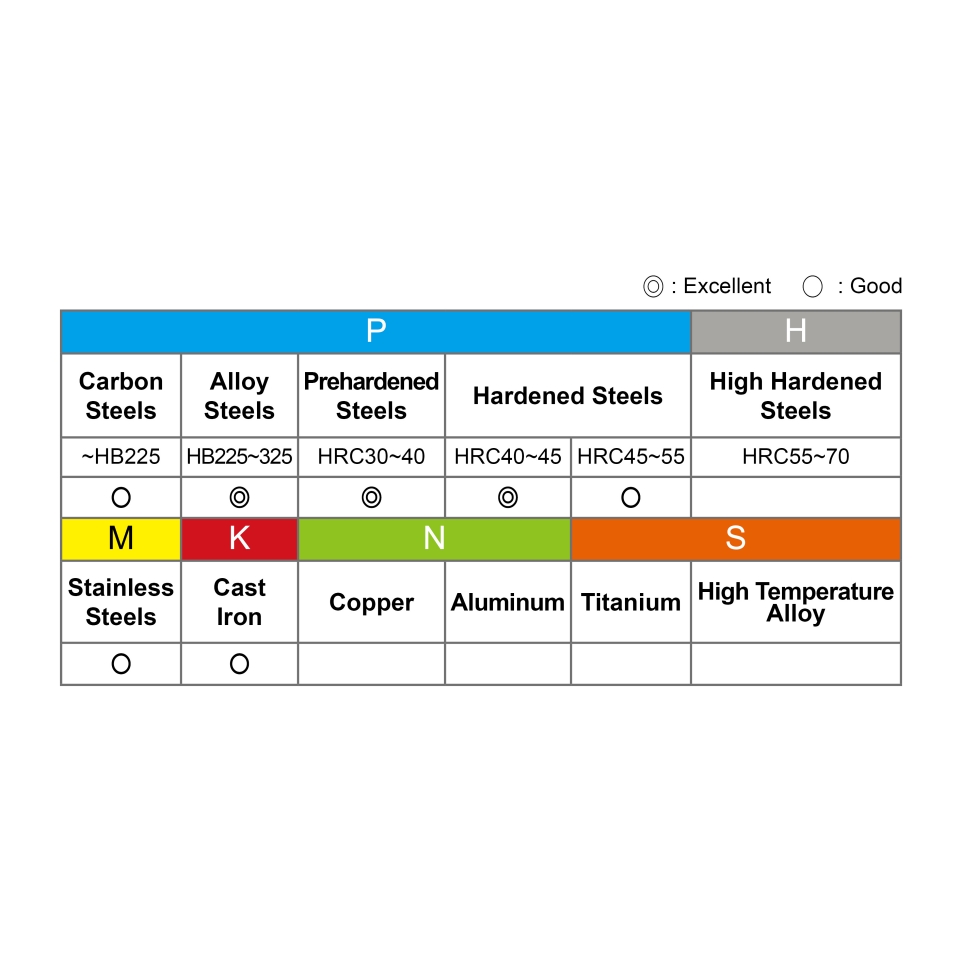

- GENERAL ROUGHING CUTTER - Speed Tiger 600 Nano carbide tools excel at working carbon steels (~HB225), alloy steels (HB225~325), pre-hardened steels (up to HRC45), hardened Steels (HRC40~45), cast iron
- ZrN-A COATING - Zirconium nitride (ZrN) +Titanium aluminum boron nitride (AlTiBN) coating lubricates the end mill for stability at high temperature and superior wear resistance at high cutting speeds, offering better heat resistance than TiAlN, TiN or TiCN coatings
- HIGH PERFORMANCE FOR HARD MATERIALS -Cutter is made of Micro Grain Carbide that is very tough,resists wear and offers high cutting performance
Cutting performanceWorkpiece Material Copper Milling Type Slotting Speed(rpm) 8000 Feed Rate(mm/min) 1200 Machine Vertical Machining Center Customer Reviews
Carbide End Mill ⭐⭐⭐⭐⭐
"I bought this to machine a hardened engine component, and it performed perfectly. After machining several holes, the Mill still looks new. Great piece ,"
-----Russ from United States on August 12, 2024
Impressive - Exceeded expectations ⭐⭐⭐⭐⭐
''I have a Desktop 3020 ProMax v2, with trim router spindle upgrade. I never expected to be able to mill steel, but took a chance on this bit given the positive reviews of Speedtiger. Not only was I able to slot a piece of mild steel bar, but it left a really nice finish despite being sold as a roughing bit. More than pleased with purchase.''
-----AK from United States on February 23, 2024
BUTTERY SMOOTH. Love it ⭐⭐⭐⭐⭐
''I was cutting 80crv2 for a knife project and was pleasantly surprised how well this cut. It’s buttery smooth compared to my other endmills at that depth of cut. I think I did around 7thou depth as that’s all I needed but can probably handle even deeper cuts just as well. It’s well worth the money''
-----Chandre from United States on November 6, 2023
Love this tool! ⭐⭐⭐⭐⭐
''Perfect tool for roughing steel and stainless. I have used chipbreakers on aluminum before but never on stainless. It chewed through 17-4ph like butter and no chip build up of course. Love it especially for the price. Ran it conservatively at .25in doc 40ipm .025 step over but I could tell it could take more.''
-----Luke A from United States on July 18, 2023
https://www.speedtigertools.com/inquiry/
The Basic(But Complete) Guide of CNC Router Bits -
ZrN-A Coating
Block resistance- Suitable for High Speed machining with both dry and wet cutting way.
- Hardness 2800~3000 HV
- Coefficient of friction: 0.3
- Oxidation Temp: 800~900°C
- High performance coating(Light golden)
Measured comparison-SUS316
Before the tool is used
Parameter Tool(Coating) PVE 1004 ZrN-A Cutting Material SUS316 Rotation Speed (S) 2644 rpm Milling Speed (Vc) 100 m/min Feed Rate (F) 646 mm/min Depth of cut ap=10mm / ae=10mm (Fz) Feed of teeth 0.062 Machine YCM FV102A Holder BT40 Shrink fit holder The length of Tool Extend 37mm Cooling Way Water
Parameter Tool(Coating) PVE 1004 ZrN-S Cutting Material SUS316 Rotation Speed (S) 2644 rpm Milling Speed (Vc) 100 m/min Feed Rate (F) 646 mm/min Depth of cut ap=10mm / ae=10mm (Fz) Feed of teeth 0.062 Machine YCM FV102A Holder BT40 Shrink fit holder The length of Tool Extend 37mm Cooling Way Water
Coating Total Milling Length (m) 0.6m 1.2m ALTIBN 0.057µm 0.07µm ZrN-S 0.0µm 0.03µm
-

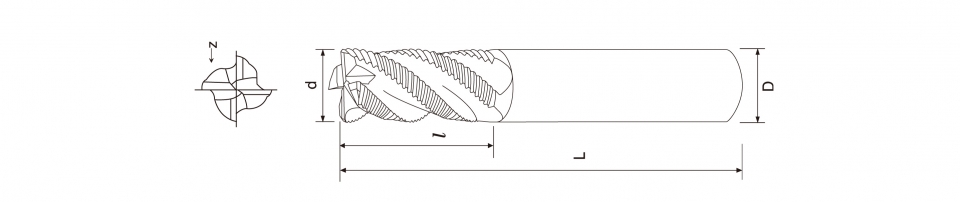

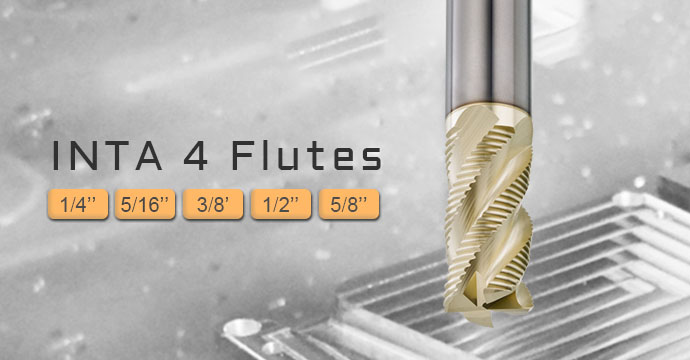

Mode Diameter Flute Length Full Length Shank Diameter Flutes INTA1/4"4 ZrN-A 1/4" 3/4" 2-1/2" 1/4" 4 INTA5/16"4 ZrN-A 5/16" 13/16" 2-1/2" 5/16" 4 INTA3/8"4 ZrN-A 3/8" 7/8" 2-1/2" 3/8" 4 INTA1/2"4 ZrN-A 1/2" 1" 3" 1/2" 4 INTA5/8"4 ZrN-A 5/8" 1-1/4" 3-1/2" 5/8" 4
-
-
