IAP Carbide Spiral CNC Router Bits - O Flute

Product Number：IAP

█Feature: ①HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide which is very tough, resists wear and offers high cutting performance.②HIGH-QUALITY - Flutes are grounded in a world-class ISO-9001 Factory; Great performance at a competitive price. █Application:Composite Materials - Speed Tiger carbide tools excel at working wood, MFC, MDF, Plywood, Hardwoods, and Softwoods.

Add Inquiry

Features ZrN Coating Specification Buy Now Contact Us

Features
1. GENERAL APPLICATION CUTTER - Speed Tiger carbide tools excel at working Wood, Aluminum, Copper, Plastic, Brass, carbon steels (~HB225), alloy steels (HB225~325), pre-hardened steels (up to HRC45)
2. HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide that is very tough, resists wear and offers high cutting performance
3. HIGH-QUALITY - Flutes ground by a world-class ISO-9001 Factory; Great performance at a competitive price.
4. Chip removals are greatly improved by O flute design.
5. Excel at Working Wood, Aluminum, Copper, Plastic, Brass, Carbon Steels (~HB225), Alloy Steels (HB225~325), Pre-hardened steels (up to HRC45)
6. Cutter is made of Micro Grain Carbide that is very tough, resists wear and offers high cutting performance.
Customer reviews

A Definite Difference from my usual cheap 1/8" End Mills.⭐⭐⭐⭐⭐
'' Bought this 1/8" End Mill for cutting parts out of 6061T6 Aluminum on my 3040T CEST CNC Router with an aqueous lubricant mist. First tests(video attached) shows that it seems to work very well with the fairly conservative set of parameters used: RPM 10000, Travel Feedrate 260mm/min, Depth/pass 0.33mm, Plunge Feedrate 30mm/min, Plunge Angle 10 degrees. Top edge of cut was very smooth & finger safe. Bottom of cut was also smooth, so it should do well for pocketing without a lot of finishing work. Hope it wears well and lasts long!!!''
-----Gerald from United States on February 10, 2025

Perfect for plastics⭐⭐⭐⭐⭐
''Clean, razor sharp, full depth cuts on HDPE is a breeze. Super clean bit with great performance.''
-----Andrew J Morton from United States on August 17, 2024

Awesome End Mill!⭐⭐⭐⭐⭐
''After several other mills, this is the first one that does exactly says. Mills aluminum like a hot knife through butter. Well worth the purchase!''
-----Pat from United States on July 3, 2024

Cuts nicely with good life⭐⭐⭐⭐⭐
''Use this on my (relatively) cheap Genmitsu 3020 + Makita router setup. It cuts aluminum as fast as I need it to (F=850mm/m , 100% woc, 1mm doc). It leaves nice looking tool marks on the top surfaces.''
-----customer 5492053 from United States on December 22, 2023

https://www.speedtigertools.com/inquiry/

The Basic(But Complete) Guide of CNC Router Bits

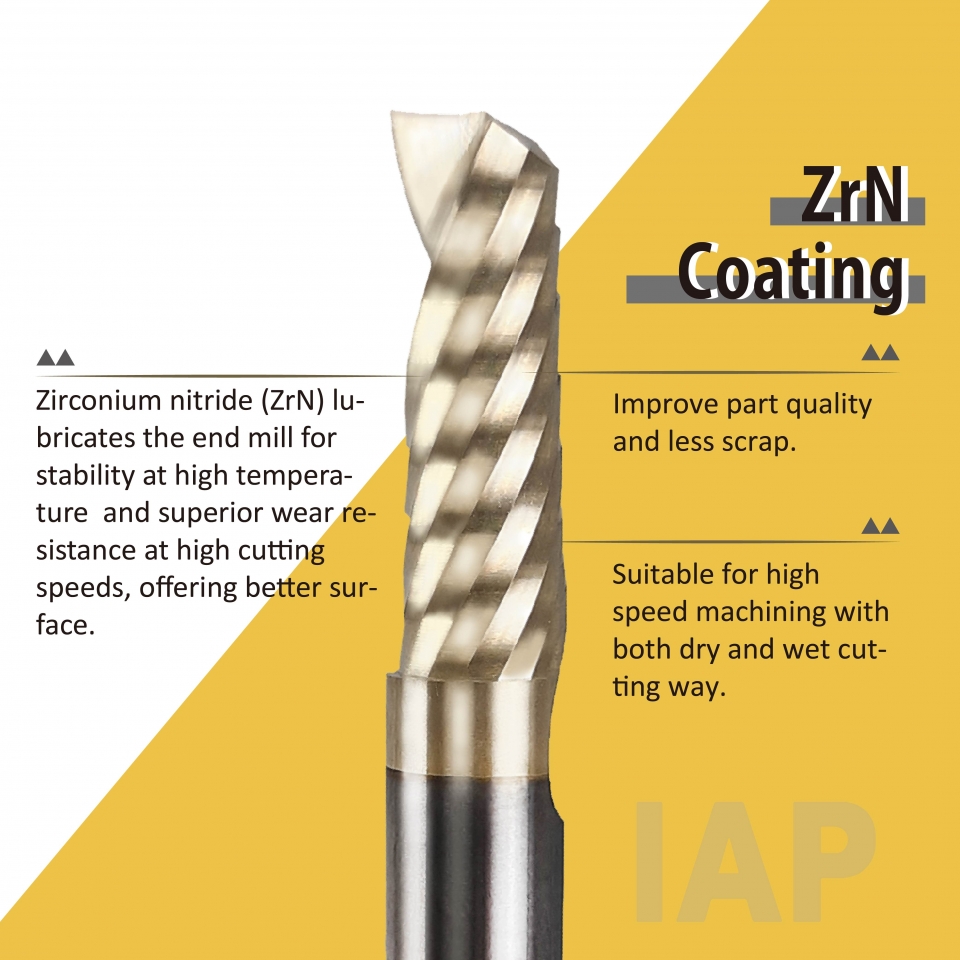

ZrN Coating

ZrN COATING - Zirconium nitride (ZrN) lubricates the end mill for stability at high temperature and superior wear resistance at high cutting speeds, offering better surface.
1. Zirconium nitride (ZrN) lubricates the end mill for stability at high temperature and superior wear resistance at high cutting speeds, offering better sur-face.
2. Improve part quality and less scrap.
3. Suitable for high speed machining with both dry and wet cutting way.

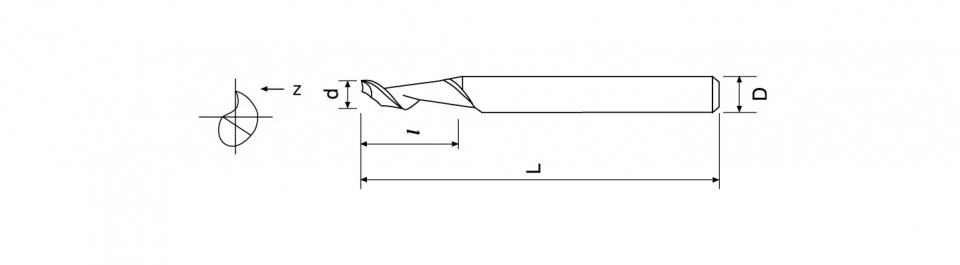

Mode	Diameter	Flute Length	Full Length	Shank Diameter	Flutes
IAP1/8"	1/8"	1/2"	2"	1/4"	1
IAP3/16"1	3/16"	5/8"	2"	1/4"	1
IAP1/4"1	1/4"	3/4"	2"	1/4"	1
IAP5/16"1	5/16"	9/16"	2-1/2"	5/16"	1
IAP3/8"1	3/8"	1"	3"	3/8"	1
IAP1/2"1	1/2"	1-1/8"	3"	1/2"	1
