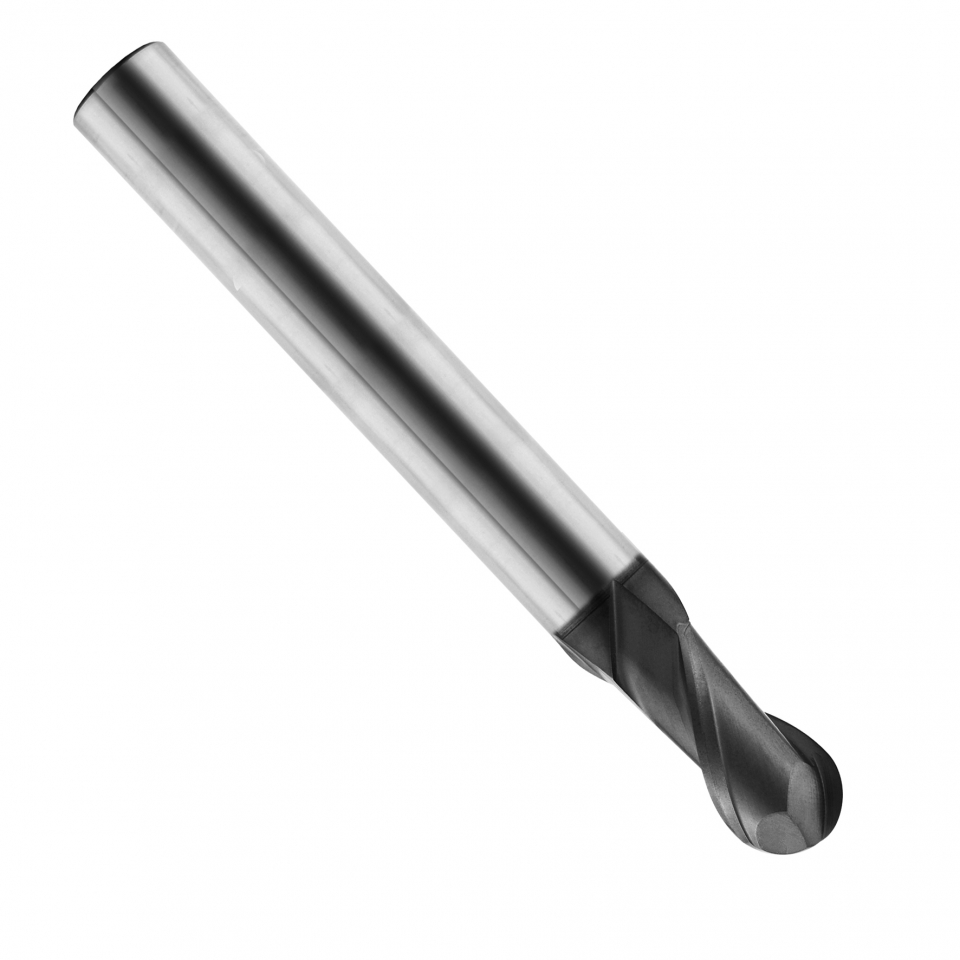

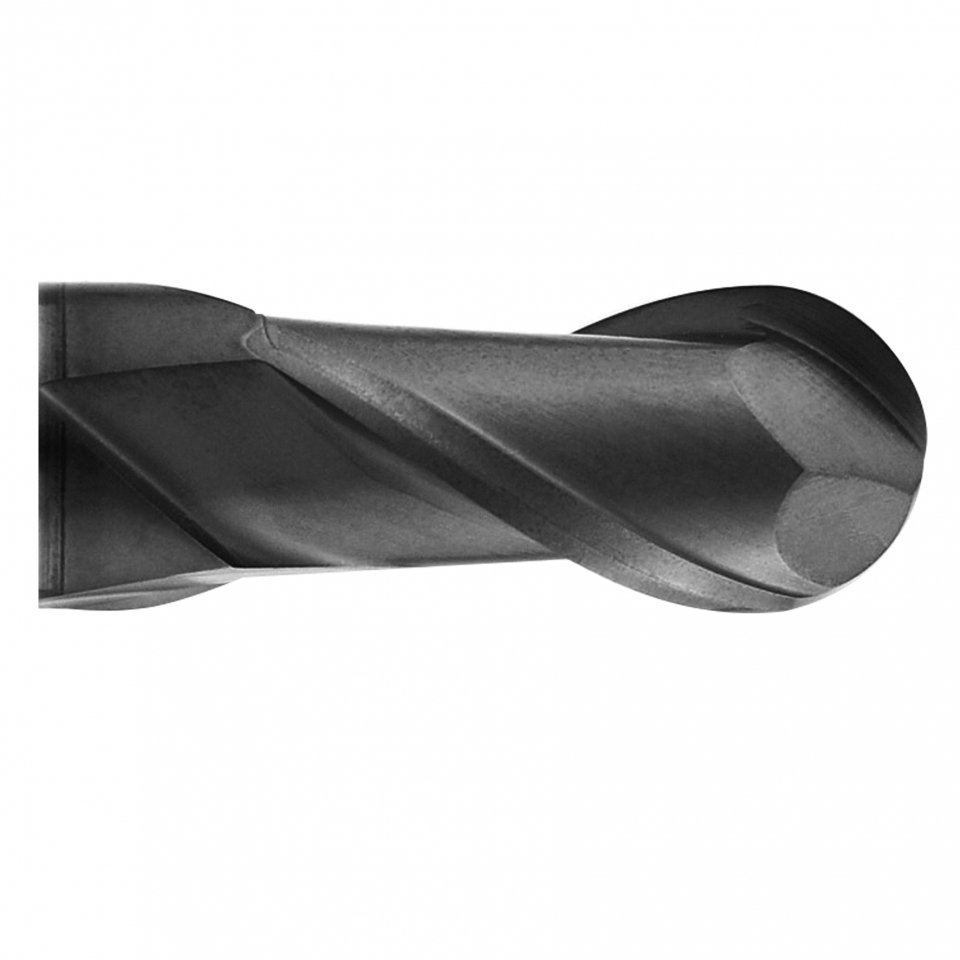

Carbide Spiral CNC Router Bits - Ball Nose Type

Product Number：ISB

█Feature: ①HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide which is very tough, resists wear and offers high cutting performance.②HIGH-QUALITY - Flutes are grounded in a world-class ISO-9001 Factory; Great performance at a competitive price. █Application:Composite Materials - Speed Tiger carbide tools excel at working wood, MFC, MDF, Plywood, Hardwoods, and Softwoods.

Add Inquiry

Features Coating Specification Buy Now Contact Us

Features

1. HIGH PERFORMANCE FOR HARD MATERIALS - Cutter is made of Micro Grain Carbide which is very tough, resists wear and offers high cutting performance.
2. HIGH-QUALITY - Flutes are grounded in a world-class ISO-9001 Factory; Great performance at a competitive price.
3. High hardness-used coating, effectively improves tool life and finishes.
4. GENERAL ROUGHING CUTTER - Speed Tiger 600 Nano carbide tools excel at working carbon steels (~HB225), alloy steels (HB225~325), pre-hardened steels (up to HRC45), hardened Steels (HRC40~45), cast iron

Customer Review

Durable and sharp. ⭐⭐⭐⭐⭐
Item Package Quantity: 5 | Size:1/8 in
''They definitely stay sharp! I have yet to break one. I have been able to utilize these bits multiple times depending on the workpiece i'm producing.''
-----Amazon Customer from United States on December 28, 2020

Perfect Product to remove machine out broken tap ⭐⭐⭐⭐⭐
Item Package Quantity: 5 | Size:1/16 in
''Product worked great! I had broken a small tap #8-40 in the hole and was able to machine out the center of the tap to allow removing it and saving the threads. Ball end mills are great for this and these were perfect for the small hole and tap.''
-----MJT from United States on July 30, 2019

No complaints. ⭐⭐⭐⭐⭐
Item Package Quantity: 5 | Size:3/16 in
''Excellent tool, great price. I purchased the 3/32 2 flute ball nosed endmill 5 pack. I use these to mill jimping on the spine of the folding knives that I make. They hold up to the abuse I put my tools through. Very happy with my purchase.''
-----Sean O from United States on July 05, 2019

https://www.speedtigertools.com/inquiry/

The Basic(But Complete) Guide of CNC Router Bits

ALTIBN Coating

Coating Structural Analysis-SEM
ALIBN_Coating Structural

Normal Temperature Mechanical Analysis
In normal temperature mechanical analysis,the performance of AlTiBN is superior to AlTiN in hardness, wear rate and coating roughness.

Hardness (Hv)

Impact of Diameter

Lc2-Lc1

Wear Rate

Roughness (µm)

AlTiN

3672

305(um)

8.28N

6.49x10-6

0.233

AlTiBN

4088

280.9(um)

17.6N

5.11x10-6

0.166

The Oxidation Wear of 700°C

	Fiction Coefficient	Wear Distance	Wear rate
TiN	0.5662	316.3	6.4x10-6
TiBN	0.5664	281.2	5.69x10-6
AlTiN	0.6402	281.4	4.97x10-6
Multi-TiN	0.686	277.4	4.82x10-6
ALTIBN	0.618	281.8	4.66x10-6
Mult-ALTiN	0.7014	290.1	5.5x10-6

Tool Life Comparison and Cutting Edges
ALIBN_tool life comparison

Milling Type	Side Milling	Feed Rate	1082mm/min
Work Piece	S45C	Depth of Cut	ap=20 ae=1.2
Tool Size	10mm x 30 x 75L	Coolant Way	Air
Rotation Speed	3183 rpm	CNC Machine	CNC YCM FV102A

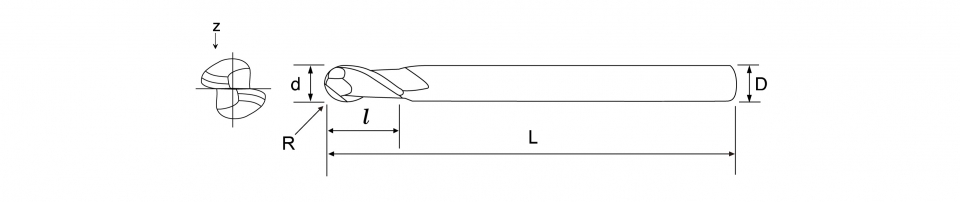

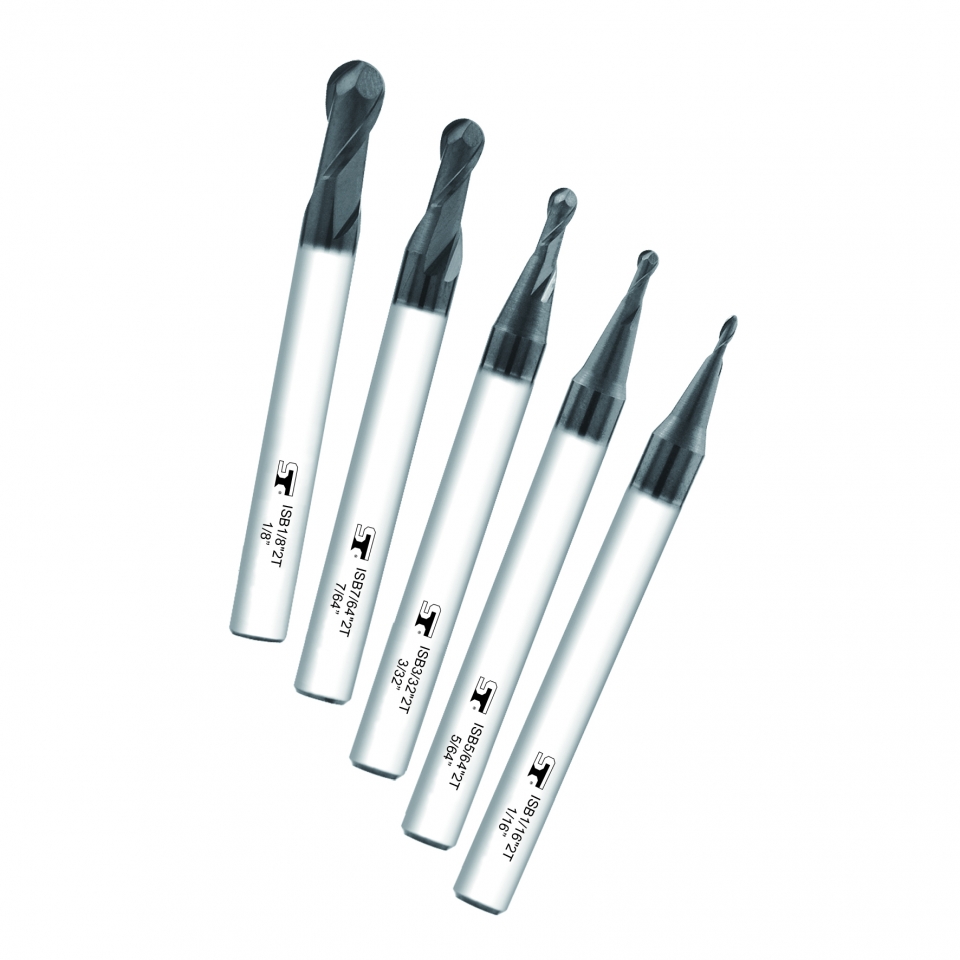

MODE	Diameter	Flute Length	Full Length	Shank Diameter	Flutes
ISB1/16"2T	1/16	3/16	1-1/2	1/8	2
ISB5/64"2T	5/64	3/16	1-1/2	1/8	2
ISB3/32"2T	3/32	9/32	1-1/2	1/8	2
ISB7/64"2T	7/64	3/8	1-1/2	1/8	2
ISB1/8"2T	1/8	3/8	1-1/2	1/8	2
ISB3/16"2T	3/16	5/8	2	3/16	2
ISB1/4"2T	1/4	3/4	2-1/2	1/4	2
ISB5/16"2T	5/16	13/16	2-1/2	5/16	2
ISB3/8"2T	3/8	1	2-1/2	3/8	2
ISB1/2"2T	1/2	1	3	1/2	2
ISB5/8"2T	5/8	1-1/4	3-1/2	5/8	2
