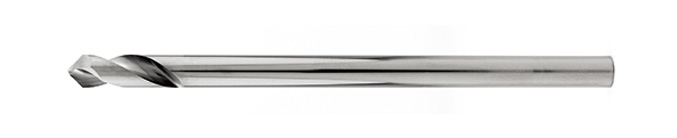

PDST Long Shank Position Drill - 2 Flutes
Product Number：PDST
Position Drill Series // Diameter：4mm~20mm // Coating：Uncoated / ZrN-A
-
Application
◎ Excellent ○ GoodCoating Carbon steel,
Alloy steelPre-harden steel
~45HRHigh-hardened
~50HRCStainless steel Cast iron Cooper alloy Aluminum alloy Titanium alloy Nickel/
Inconel alloyUncoated ○ ◎ ○ ZrN-A ○ ◎ ◎ ○ ○ ○ ○ ○
PVD Coating (ZrN-A)
Block resistance- Suitable for High Speed machining with both dry and wet cutting way.
- Hardness 2800~3000 HV
- Coefficient of friction: 0.3
- Oxidation Temp: 800~900°C
- High performance coating(Light golden)
Measured comparison-SUS316
Before the tool is used
Parameter Tool(Coating) PVE 1004 ZrN-A Cutting Material SUS316 Rotation Speed (S) 2644 rpm Milling Speed (Vc) 100 m/min Feed Rate (F) 646 mm/min Depth of cut ap=10mm / ae=10mm (Fz) Feed of teeth 0.062 Machine YCM FV102A Holder BT40 Shrink fit holder The length of Tool Extend 37mm Cooling Way Water
Parameter Tool(Coating) PVE 1004 ZrN-S Cutting Material SUS316 Rotation Speed (S) 2644 rpm Milling Speed (Vc) 100 m/min Feed Rate (F) 646 mm/min Depth of cut ap=10mm / ae=10mm (Fz) Feed of teeth 0.062 Machine YCM FV102A Holder BT40 Shrink fit holder The length of Tool Extend 37mm Cooling Way Water
Coating Total Milling Length (m) 0.6m 1.2m ALTIBN 0.057µm 0.07µm ZrN-S 0.0µm 0.03µm
Package & Shipping
Delivery :
Generally, it is 5-7 days if the goods are in stock.
It is 15-20 days if the goods are not in stock, it is according to quantity.
https://www.speedtigertools.com/inquiry/
The Guide to Buying Carbide Drill Bits, Choose the right one for your job! -
Mode Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) Tip Angle (A) Coating Download PDST040901 4 12 100 4 90° Uncoated / ZrN-A Download PDST040121 4 12 100 4 120° PDST060901 6 20 100 6 90° PDST060121 6 20 100 6 120° PDST080901 8 25 100 8 90° PDST080121 8 25 100 8 120° PDST100901 10 25 150 10 90° PDST100121 10 25 150 10 120° PDST120901 12 30 150 12 90° PDST120121 12 30 150 12 120° PDST160901 16 35 150 16 90° PDST160121 16 35 150 16 120° PDST200901 20 40 150 20 90° PDST200121 20 40 150 20 120° -
-
-
