Helix 30° End Mill for Compound Lathe - 2 Flutes
Product Number：TSTE / TTE
Diameter: 1-16mm
█ Advantages of special short-flute square end mill for compound lathe.
①Specifically designed for lathe processing.
②Improve cutting quality and processing speed.
③High precision and longer tool life.
④Be stable during the machining process, effectively achieving the anti-vibration effect and increasing the stability of the tool.
-

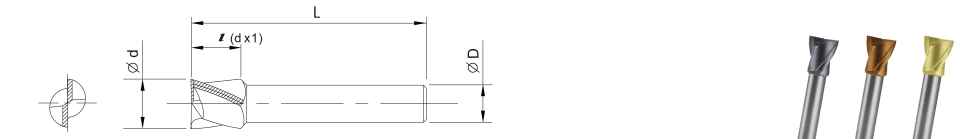

TSTE Specification
MODE Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) No. of
flutes (Z)Coating ALTIBN TISIN ZrN-A TSTE0102 1 1 40 6 2 .01 .02 .03 TSTE0152 1.5 1.5 40 6 2 .01 .02 .03 TSTE0202 2 2 40 6 2 .01 .02 .03 TSTE0252 2.5 2.5 40 6 2 .01 .02 .03 TSTE0302 3 3 40 6 2 .01 .02 .03 TSTE0352 3.5 3.5 40 6 2 .01 .02 .03 TSTE0402 4 4 40 6 2 .01 .02 .03 TSTE0502 5 5 40 6 2 .01 .02 .03 TSTE0602 6 6 40 6 2 .01 .02 .03 TSTE0802 8 8 40 8 2 .01 .02 .03 TSTE1002 10 10 45 10 2 .01 .02 .03 TTE Specification

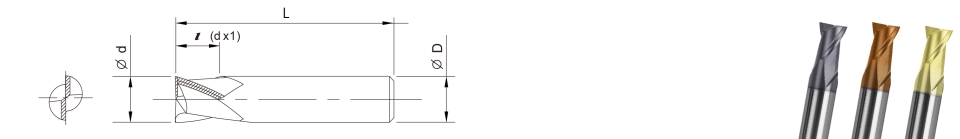

MODE Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) No. of
flutes (Z)Coating ALTIBN TISIN ZrN-A TTE0702 7 7 40 6 2 .01 .02 .03 TTE0802 8 8 40 6 2 .01 .02 .03 TTE1002 10 10 45 6 2 .01 .02 .03 TTE1202 12 12 50 10 2 .01 .02 .03 TTE1602 16 16 60 10 2 .01 .02 .03

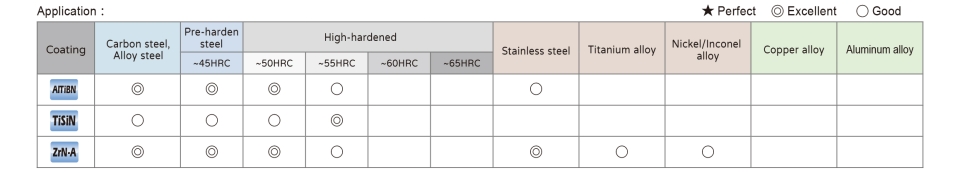

Coating Options

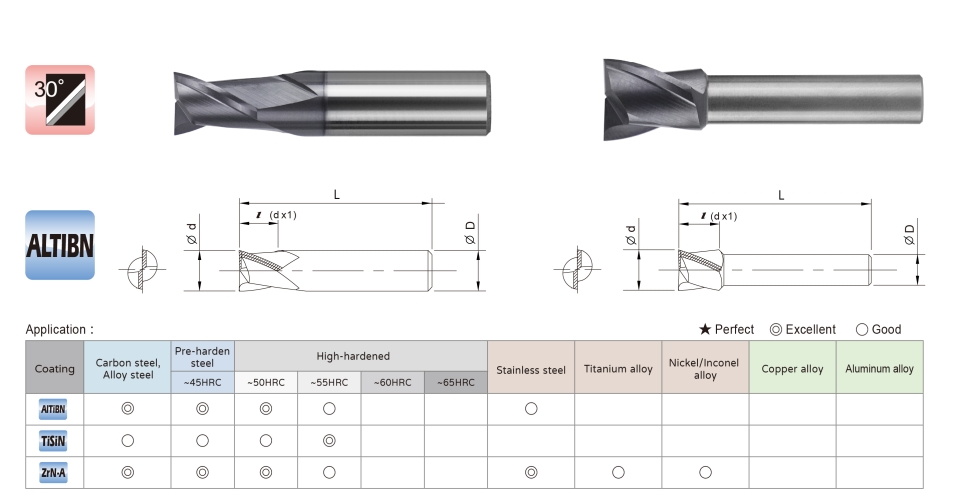

- AlTIBN (.01): for Steel

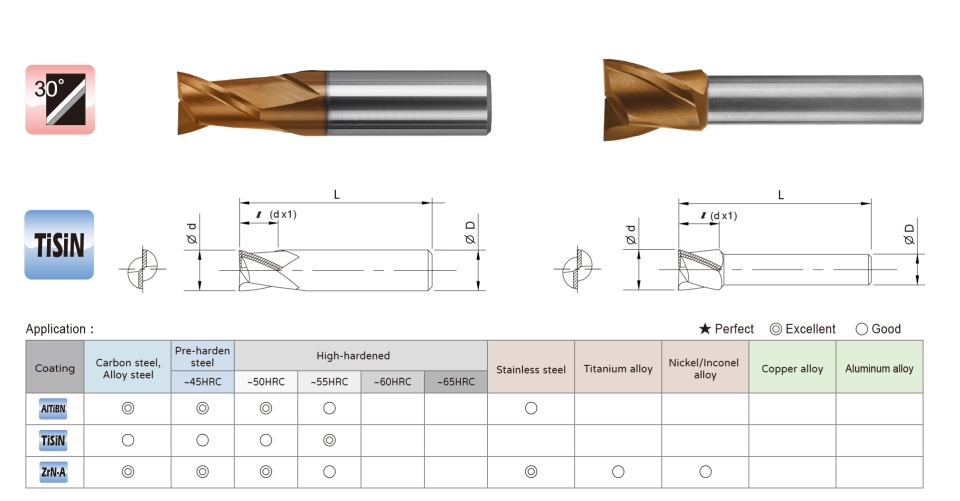

- TiSiN (.02): for High-Hardened Steel

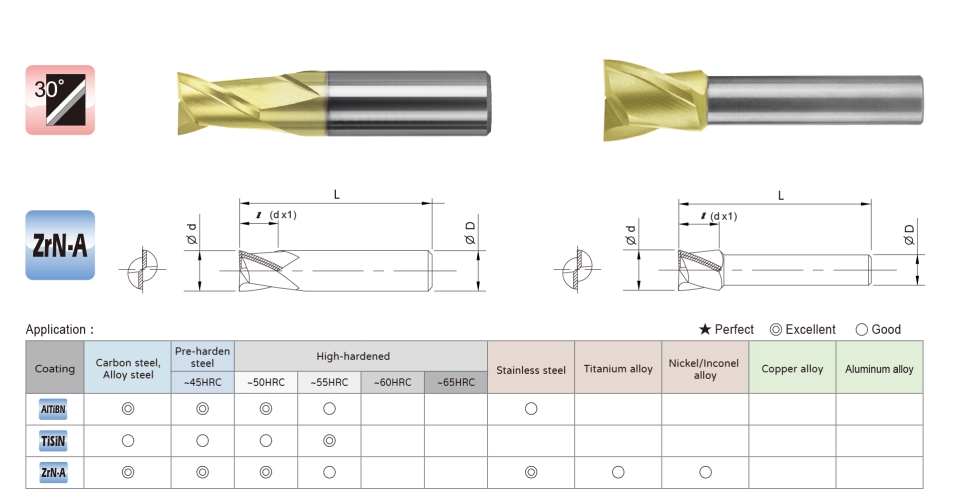

- ZrN-A (.03): for Stainless Steel, Titanium
With different coatings, it can be used on general steel, stainless steel and titanium alloy, etc.
-
-
