Helix 30° End Mill for Compound Lathe - 3 Flutes
Product Number：TSTE / TTE
Diameter: 1-16mm
█ Advantages of special short-flute square end mill for compound lathe.
①Specifically designed for lathe processing.
②Improve cutting quality and processing speed.
③High precision and longer tool life.
④Be stable during the machining process, effectively achieving the anti-vibration effect and increasing the stability of the tool.
-

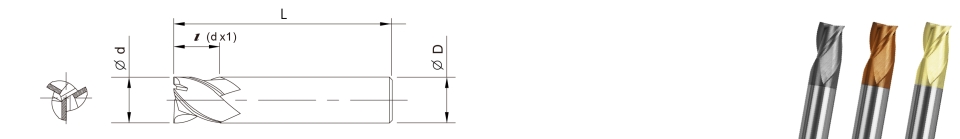

TSTE Specification
MODE Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) No. of
flutes (Z)Coating ALTIBN TISIN ZrN-A TSTE0103 1 1 40 6 3 .01 .02 .03 TSTE0153 1.5 1.5 40 6 3 .01 .02 .03 TSTE0203 2 2 40 6 3 .01 .02 .03 TSTE0253 2.5 2.5 40 6 3 .01 .02 .03 TSTE0303 3 3 40 6 3 .01 .02 .03 TSTE0353 3.5 3.5 40 6 3 .01 .02 .03 TSTE0403 4 4 40 6 3 .01 .02 .03 TSTE0503 5 5 40 6 3 .01 .02 .03 TSTE0603 6 6 40 6 3 .01 .02 .03 TSTE0803 8 8 40 8 3 .01 .02 .03 TSTE1003 10 10 45 10 3 .01 .02 3.03 TTE Specification
MODE Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) No. of
flutes (Z)Coating ALTIBN TISIN ZrN-A TTE0703 7 7 40 6 3 .01 .02 .03 TTE0803 8 8 40 6 3 .01 .02 .03 TTE1003 10 10 45 6 3 .01 .02 .03 TTE1203 12 12 50 10 3 .01 .02 .03 TTE1603 16 16 60 10 3 .01 .02 .03

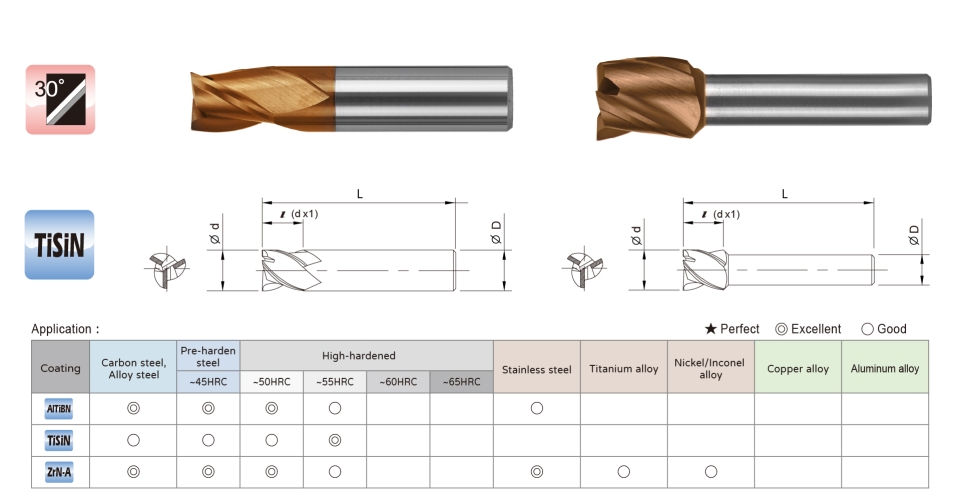

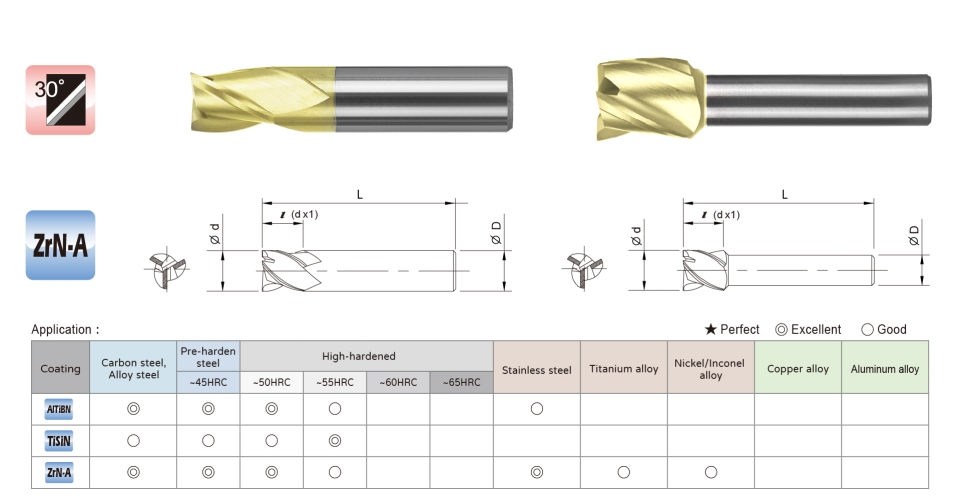

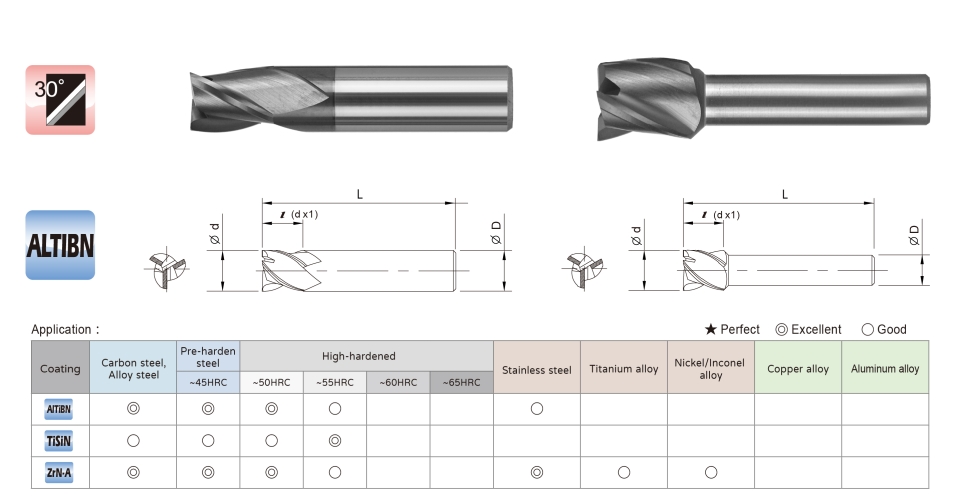

Coating Options
- AlTIBN (.01): for Steel
- TiSiN (.02): for High-Hardened Steel
- ZrN-A (.03): for Stainless Steel, Titanium
With different coatings, it can be used on general steel, stainless steel and titanium alloy, etc.
-
-
