PRODUCTS
High Efficiency End Mill for Compound Lathe - 3 Flutes
Product Number：TSEE / TEE
Diameter: 5-10mm
█ Advantages of special short-flute square end mill for compound lathe.
①Specifically designed for lathe processing.
②Improve cutting quality and processing speed.
③High precision and longer tool life.
④Be stable during the machining process, effectively achieving the anti-vibration effect and increasing the stability of the tool.
-
TSEE Specification - Good at Steel, Stainless Steel, and Titanium, etc.
Anti-Vibration Design: Unequal Helix

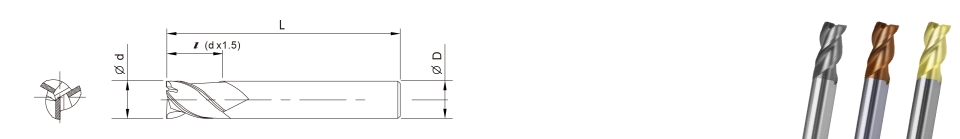

MODE Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) No. of
flutes (Z)Coating ALTIBN TISIN ZrN-A TSEE0503 5 7.5 40 6 3 .01 .02 .03 TSEE0603 6 9 40 6 3 .01 .02 .03 TSEE0703 7 10.5 50 8 3 .01 .02 .03 TSTE0803 8 12 50 8 3 .01 .02 .03 TSTE1003 10 15 50 10 3 .01 .02 .03 TTE Specification

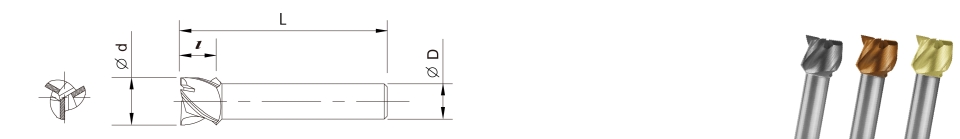

MODE Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) No. of
flutes (Z)Coating ALTIBN TISIN ZrN-A TEE0803 8 6 38 6 3 .01 .02 .03 TEE1003 10 6 40 6 3 .01 .02 .03

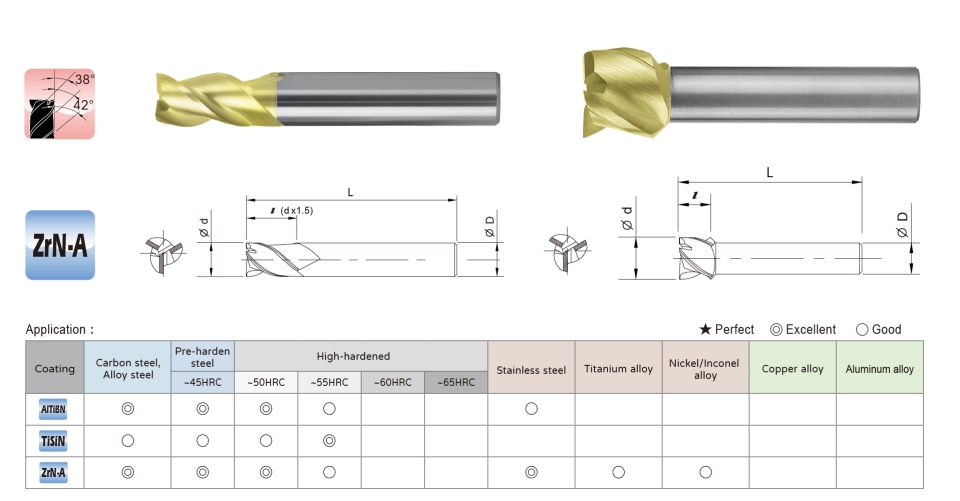

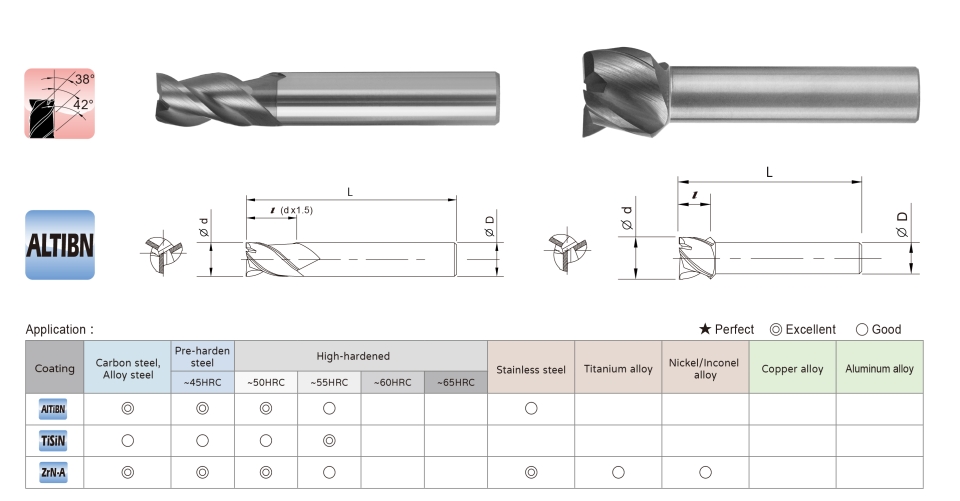

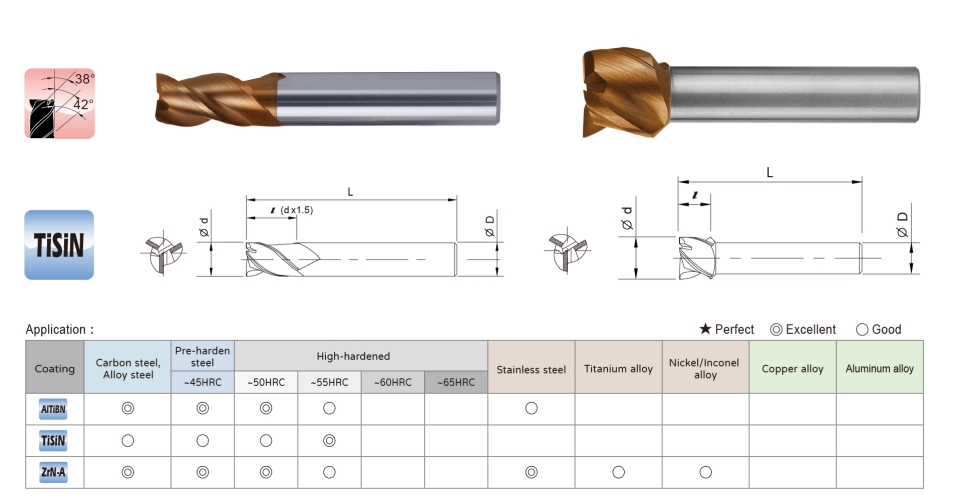

Coating Options
- AlTIBN (.01): for Steel
- TiSiN (.02): for High-Hardened Steel
- ZrN-A (.03): for Stainless Steel, Titanium
With different coatings, it can be used on general steel, stainless steel and titanium alloy, etc.
-
-
