High Efficiency End Mill for Compound Lathe - 4 Flutes

Product Number:TSUE / TUE
Diameter: 5-10mm █ Advantages of special short-flute square end mill for compound lathe. ①Specifically designed for lathe processing. ​②Improve cutting quality and processing speed. ③High precision and longer tool life. ④Be stable during the machining process, effectively achieving the anti-vibration effect and increasing the stability of the tool.
  •

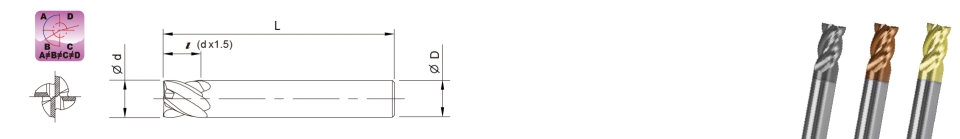

    TSUE Specification - Good at Steel, Stainless Steel, and Titanium, etc.
    Anti-Vibration Design: Unequal Helix & Unequal Flute Spacing


    TSUE 4coating
    MODE Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) No. of
    flutes (Z)
    Coating
    ALTIBN TISIN ZrN-A
    TSUE0504 5 7.5 40 6 4 .01 .02 .03
    TSUE0604 6 9 40 6 4 .01 .02 .03
    TSUE0704 7 10.5 50 8 4 .01 .02 .03
    TSUE0804 8 12 50 8 4 .01 .02 .03
    TSUE1004 10 15 50 10 4 .01 .02 .03

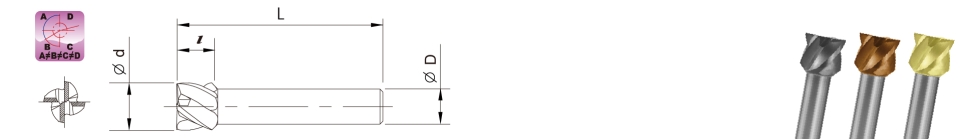

    TUE Specification




    TUE 4 coating
    MODE Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) No. of
    flutes (Z)
    Coating
    ALTIBN TISIN ZrN-A
    TUE0804 8 6 38 6 4 .01 .02 .03
    TUE1004 10 6 40 6 4 .01 .02 .03



    TUE 4 application

    Coating Options

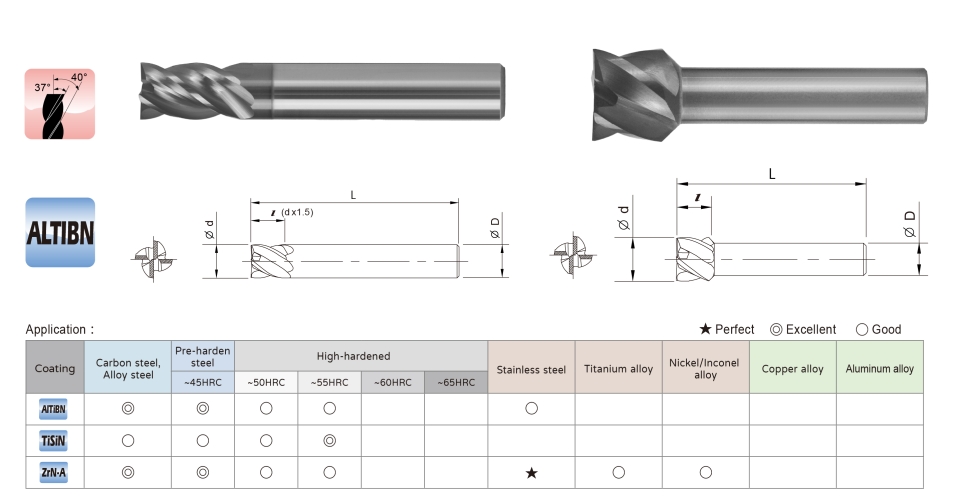

    - AlTIBN (.01): for Steel

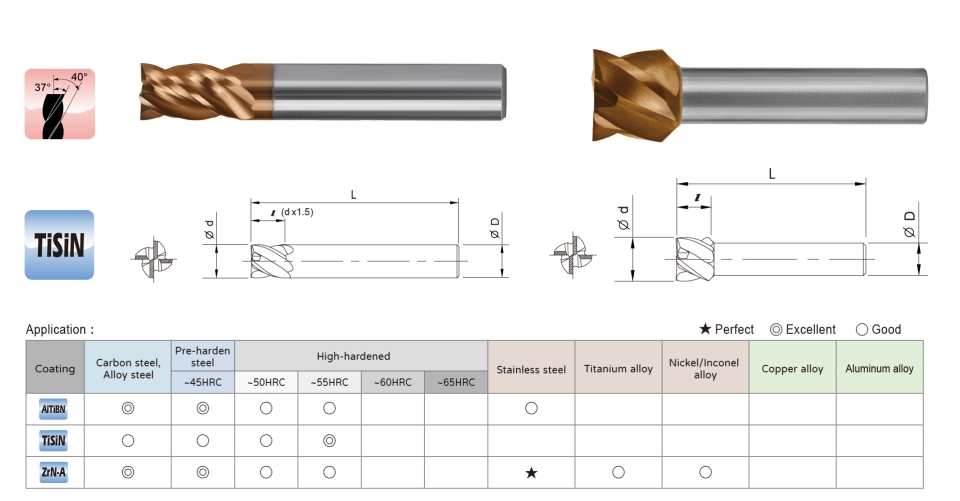

    - TiSiN (.02): for High-Hardened Steel

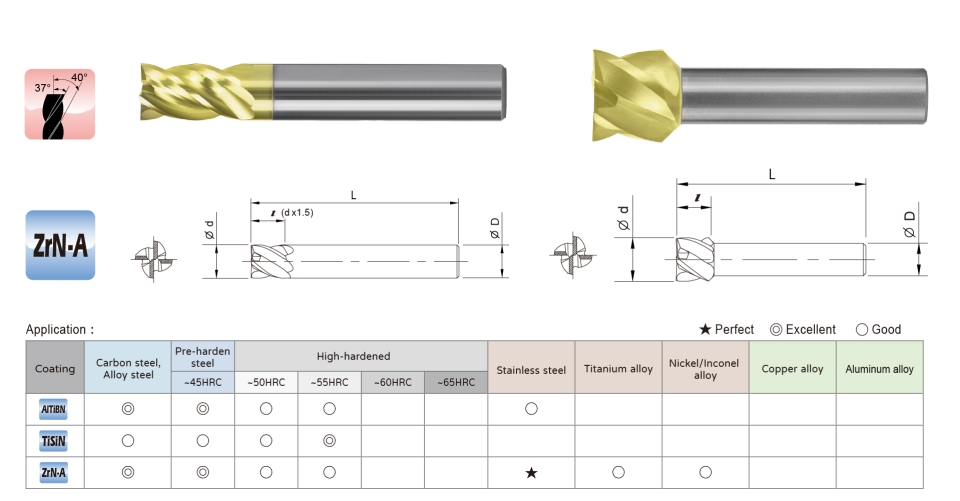

    - ZrN-A (.03): for Stainless Steel, Titanium
    With different coatings, it can be used on general steel, stainless steel and titanium alloy, etc.

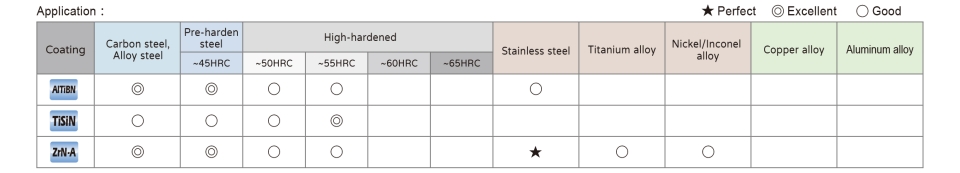

    Application
