High Efficiency End Mill for Compound Lathe - 5 Flutes

Product Number:TSEE / TEE
Diameter: 5-10mm █ Advantages of special short-flute square end mill for compound lathe. ①Specifically designed for lathe processing. ​②Improve cutting quality and processing speed. ③High precision and longer tool life. ④Be stable during the machining process, effectively achieving the anti-vibration effect and increasing the stability of the tool.
  •

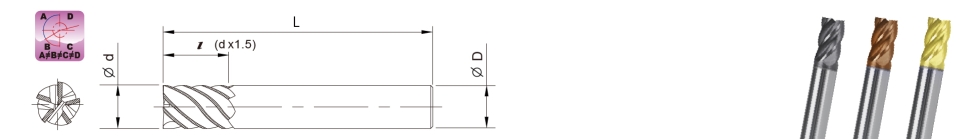

    TSEE Specification - Good at Steel, Stainless Steel, and Titanium, etc.
    Anti-Vibration Design: Unequal Flute Spacing


    TSEE 5 coating
    MODE Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) No. of
    flutes (Z)
    Coating
    ALTIBN TISIN ZrN-A
    TSEE0505 5 7.5 40 6 5 .01 .02 .03
    TSEE0605 6 9 40 6 5 .01 .02 .03
    TSEE0705 7 10.5 50 8 5 .01 .02 .03
    TSTE0805 8 12 50 8 5 .01 .02 .03
    TSTE1005 10 15 50 10 5 .01 .02 .03

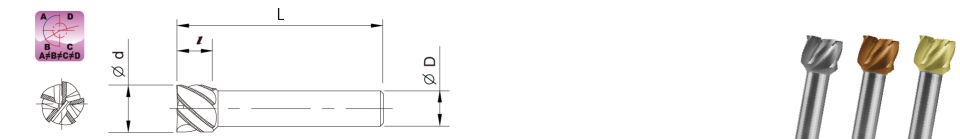

    TTE Specification




    TEE 5 coating
    MODE Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) No. of
    flutes (Z)
    Coating
    ALTIBN TISIN ZrN-A
    TEE0805 8 6 38 6 5 .01 .02 .03
    TEE1005 10 6 40 6 5 .01 .02 .03

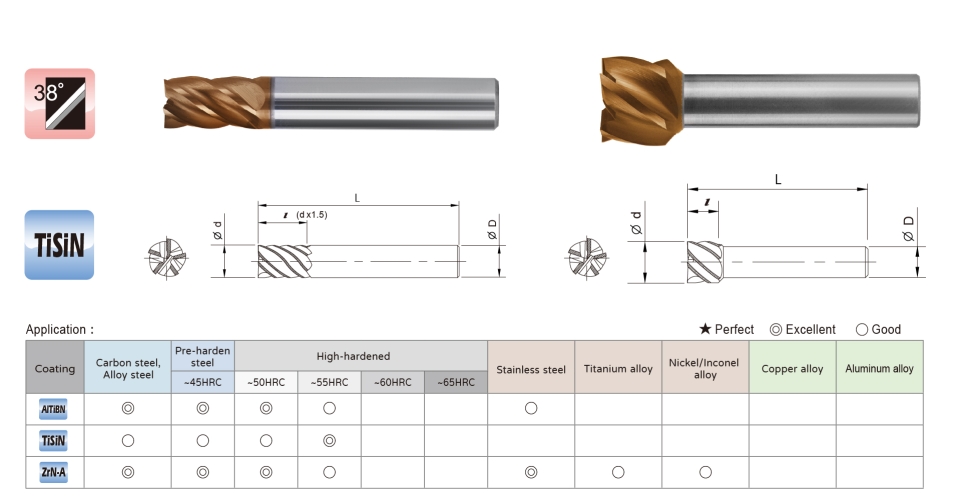

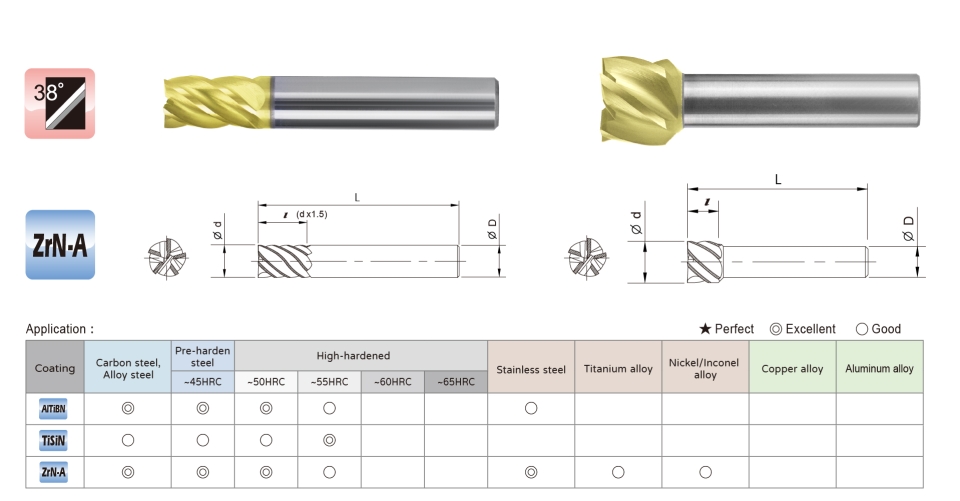

    TTE application

    Coating Options
    - AlTIBN (.01): for Steel
    - TiSiN (.02): for High-Hardened Steel
    - ZrN-A (.03): for Stainless Steel, Titanium
    With different coatings, it can be used on general steel, stainless steel and titanium alloy, etc.

    Application



    Full Length (L)
