High Efficiency End Mill for Compound Lathe - 6 Flutes
Product Number：TVE
Diameter: 6-12mm
█ Advantages of special short-flute square end mill for compound lathe.
①Specifically designed for lathe processing.
②Improve cutting quality and processing speed.
③High precision and longer tool life.
④Be stable during the machining process, effectively achieving the anti-vibration effect and increasing the stability of the tool.
-
TVE Specification - Good at Steel with Fine Surface

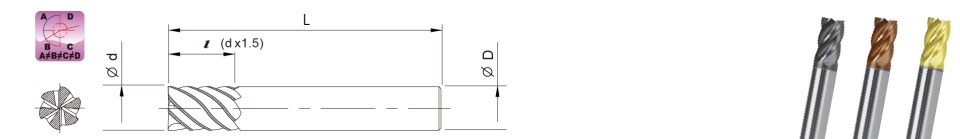

Anti-Vibration Design: Unequal Helix & Unequal Flute Spacing
MODE Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) No. of
flutes (Z)Coating ALTIBN TISIN ZrN-A TVE0606 6 9 40 6 6 .01 .02 .03 TVE0806 8 12 50 8 6 .01 .02 .03 TVE1006 10 15 60 10 6 .01 .02 .03 TVE1206 12 18 60 12 6 .01 .02 .03

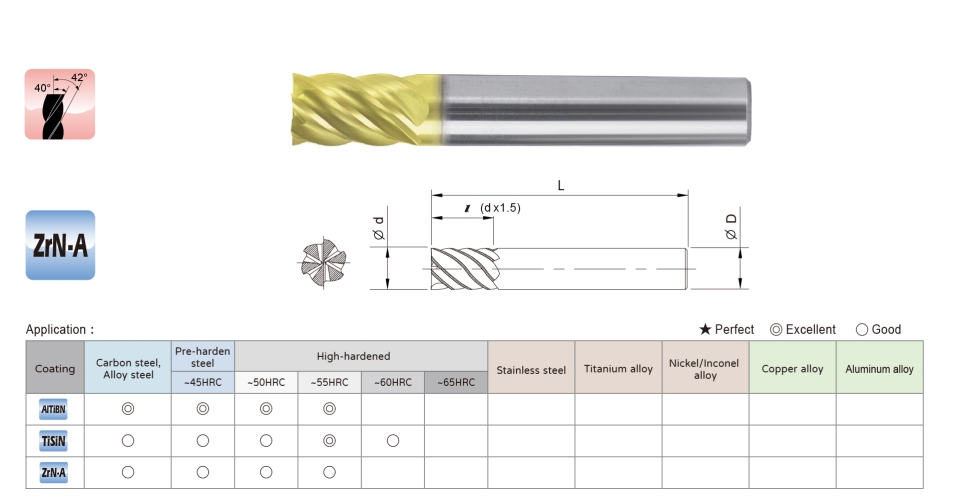

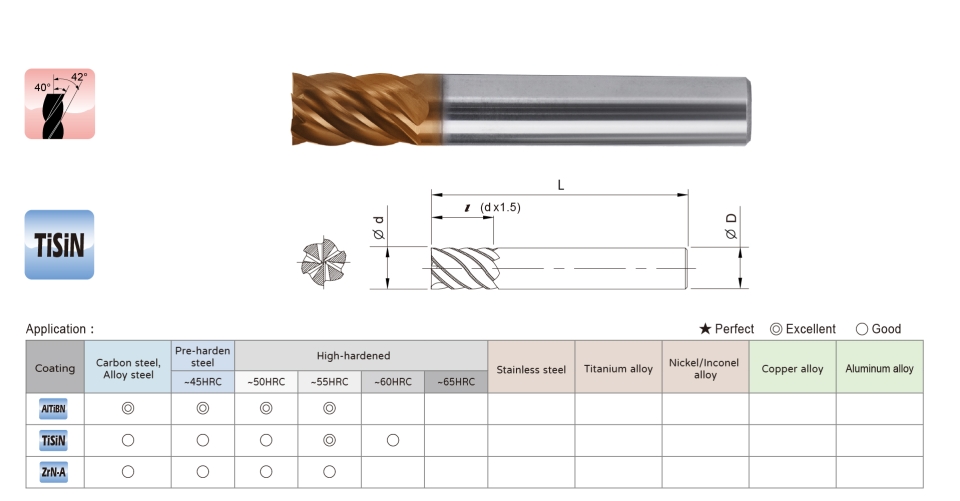

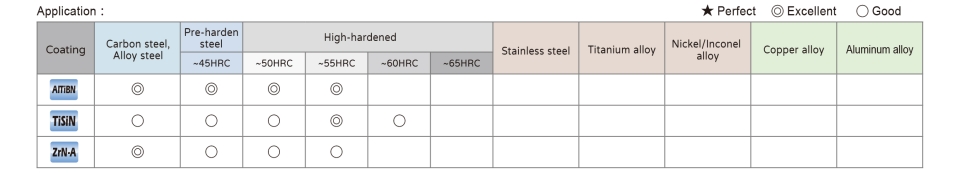

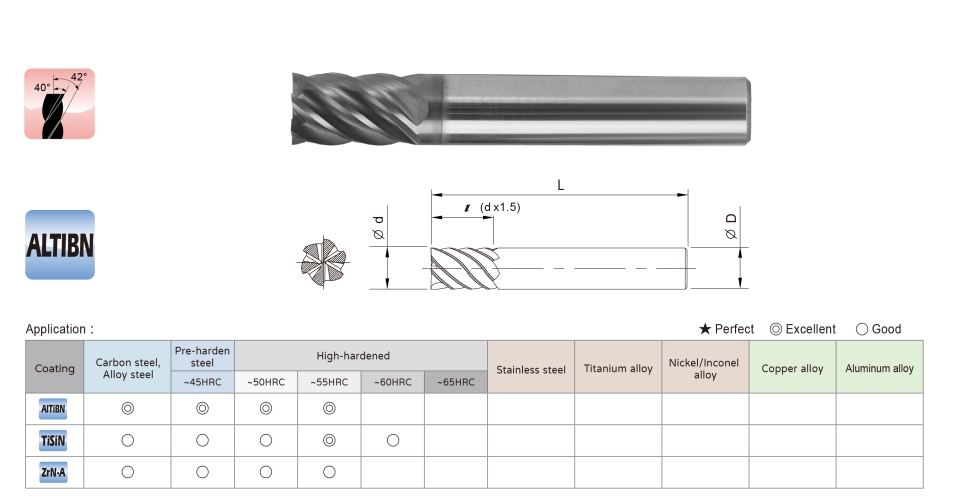

Coating Options
- AlTIBN (.01): for Steel
- TiSiN (.02): for High-Hardened Steel
- ZrN-A (.03): for Stainless Steel, Titanium
With different coatings, it can be used on general steel, stainless steel and titanium alloy, etc.
-
-
