PRODUCTS
Aluminum End Mill for Compound Lathe - 2 Flutes
Product Number：TSAE / TAE
Diameter: 2-16mm
█ Advantages of special short-flute square end mill for compound lathe.
①Specifically designed for lathe processing.
②Improve cutting quality and processing speed.
③High precision and longer tool life.
④Be stable during the machining process, effectively achieving the anti-vibration effect and increasing the stability of the tool.
-

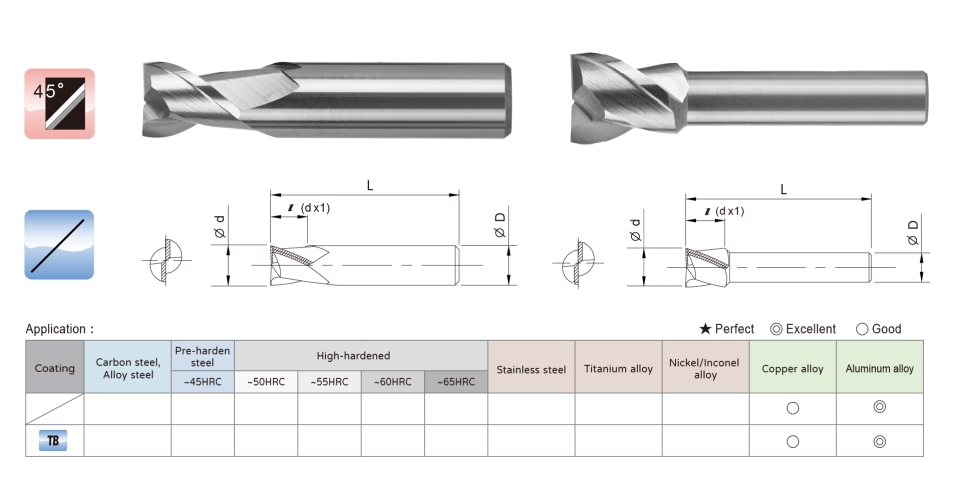

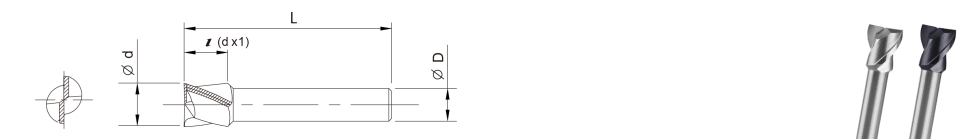

TSAE Specification
MODE Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) No. of
flutes (Z)Coating / TB TSAE0202 2 2 40 6 2 .00 TB TSAE0252 2.5 2.5 40 6 2 .00 TB TSAE0302 3 3 40 6 2 .00 TB TSAE0402 4 4 40 6 2 .00 TB TSAE0502 5 5 40 6 2 .00 TB TSAE0602 6 6 40 6 2 .00 TB TSAE0802 8 8 40 8 2 .00 TB TSAE1002 10 10 45 10 2 .00 TB TAE Specification

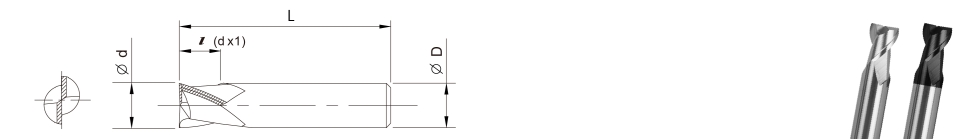

MODE Diameter (d) Flute Length (l) Full Length (L) Shank Diameter (D) No. of
flutes (Z)Coating
/ TB TAE0702 7 7 40 6 2 .00 TB TAE0802 8 8 40 6 2 .00 TB TAE1002 10 10 45 6 2 .00 TB TAE1202 12 12 50 10 2 .00 TB TAE1602 16 16 60 10 2 .00 TB

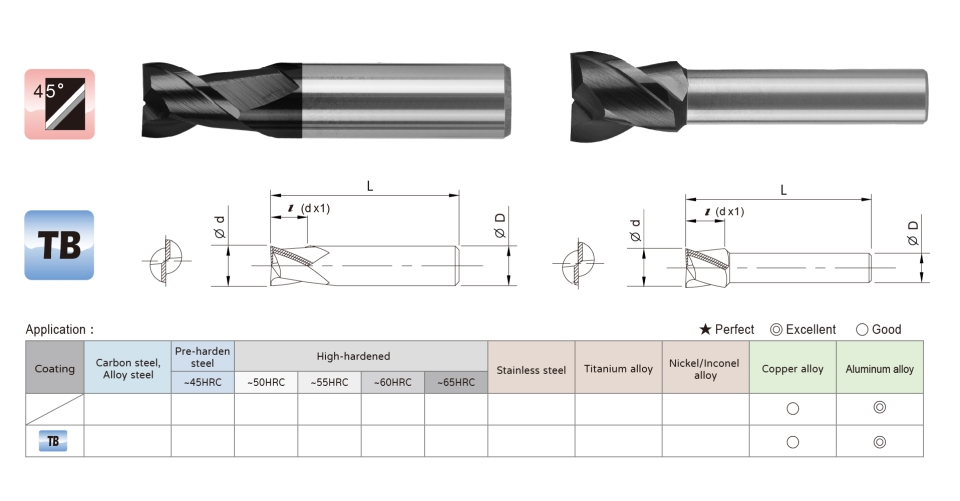

Coating Options
- AlTIBN (.01): for Steel
- TiSiN (.02): for High-Hardened Steel
- ZrN-A (.03): for Stainless Steel, Titanium
With different coatings, it can be used on general steel, stainless steel and titanium alloy, etc.
-
-
