Multi-funtional Chamfer Mill - 4 Flutes

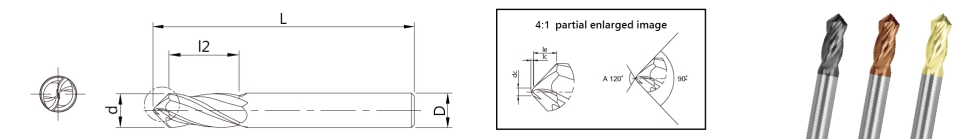

SCDM 4 - Flute Specification / Helix 27°-30°

Mode	Diameter	A Angle	120°		90°		Full Length (L)	No. of flutes (Z)	Coating
			dc	lc	le	L2			ALTIBN	TISIN	ZrN-A
SCDM0604-90	6	120°-90°	1.04	0.3	2.48	12	50	2	.01	.02	.03
SCDM0804-90	8		1.39	0.4	3.31	16	60	2	.01	.02	.03
SCDM1004-90	10		1.73	0.5	4.13	20	75	2	.01	.02	.03
SCDM1204-90	12		2.08	0.6	4.96	24	75	2	.01	.02	.03


Coating Options

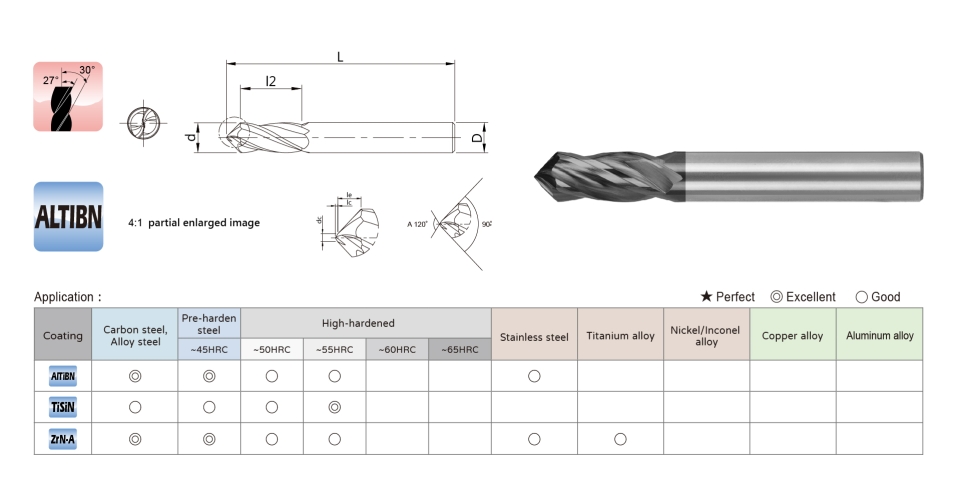

- AlTIBN (.01): for Steel

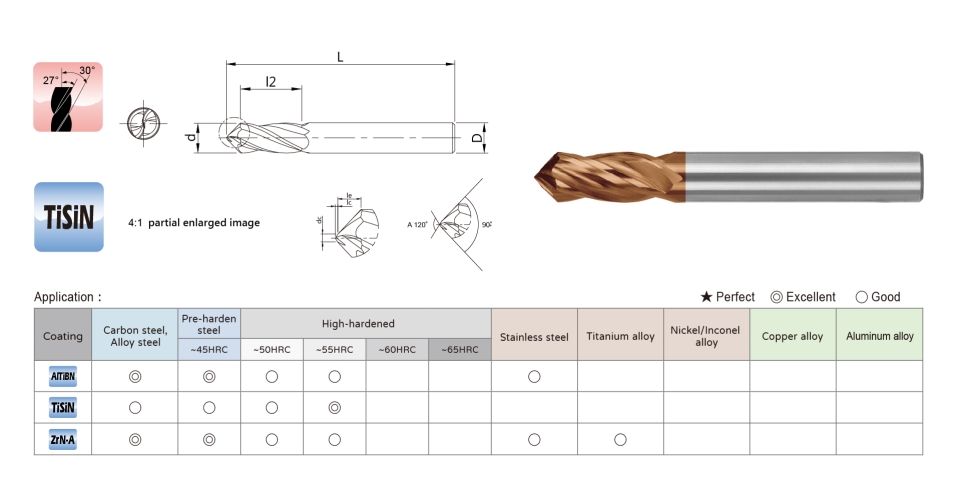

- TiSiN (.02): for High-Hardened Steel

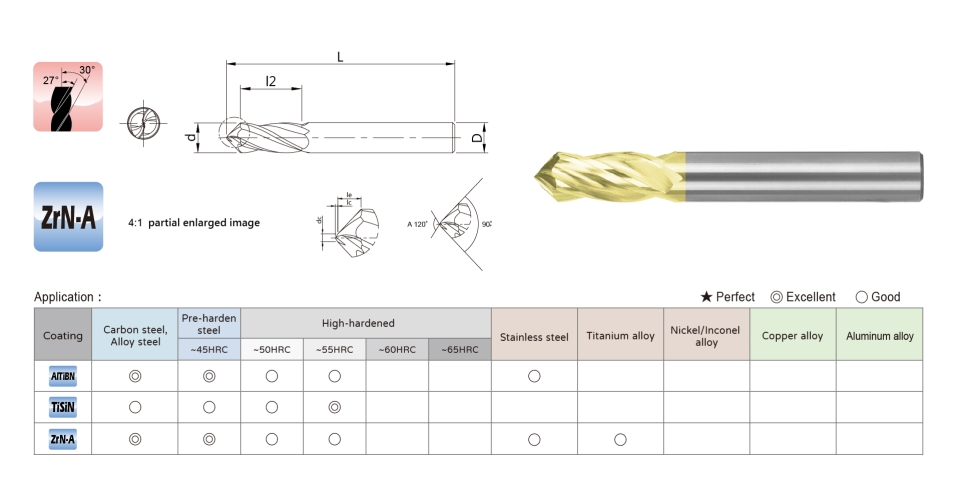

- ZrN-A (.03): for Stainless Steel, Titanium

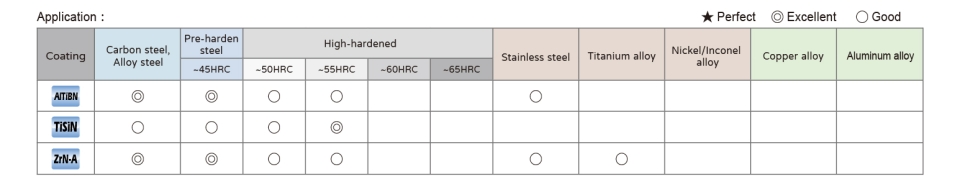

With different coatings, it can be used on general steel, stainless steel and titanium alloy, etc.

Specification & Cutting Condition  Download



What is the use of chamfer mills?

Chamfer Mills are designed for deburring, beveling, countersinking, and chamfering in machining operations. They also enhance tool life and finishing for profiling. Many machining operations leave a burr or sharp edge on the workpiece, making chamfer mills one of the common tools for addressing this issue. They are used for standard chamfering operations, deburring, chamfering in small grooves and holes, and can be employed on CNC or manual milling machines.

Purchase 45°, 60°, 90°, 120° angle Chamfer Mills from Speed Tiger, one of the leading carbide end mill manufacturers in Taiwan. Our Chamfer Mills series products all offer ALTIBN and AlTiSiN Coating, designed to improve wear and heat resistance.
