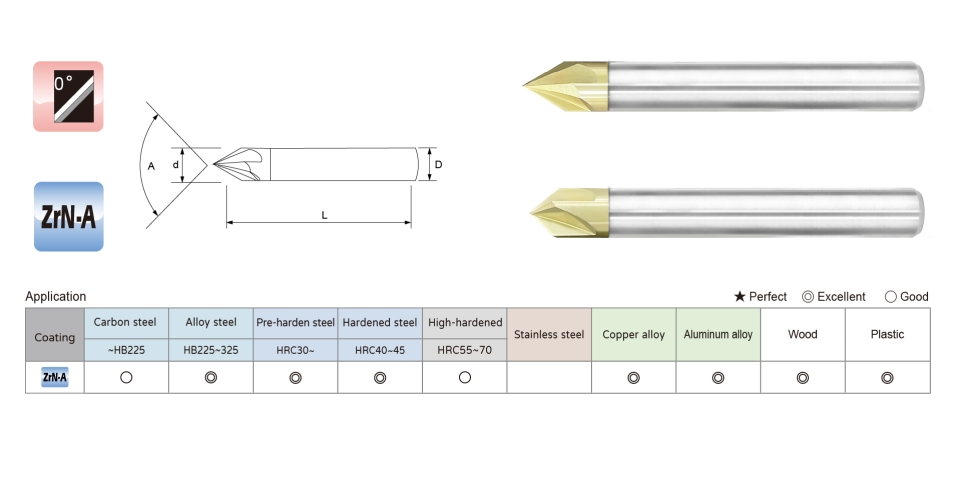

Straight Flute Chamfer Mill - 4 Flutes



CSM 60° 4 - Flute Specification / Helix 0°

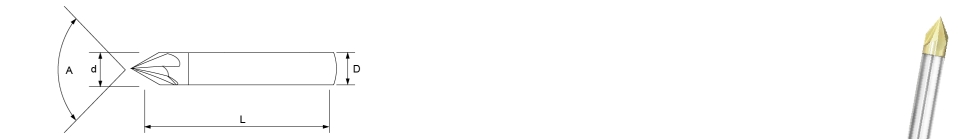

MODE	Diameter (d)	A Angle	Shank Diameter (D)	Full Length (L)	No. of flutes (Z)	Coating
						ZrN-A
CSM0600404	4	60°	4	50	4	.03
CSM0600604	6		6	50	4	.03
CSM0600804	8		8	60	4	.03
CSM0601004	10		10	75	4	.03



CSM 90° 4 - Flute Specification / Helix 0°

MODE	Diameter (d)	A Angle	Shank Diameter (D)	Full Length (L)	No. of flutes (Z)	Coating
						ZrN-A
CSM0900404	4	90°	4	50	4	.03
CSM0900604	6		6	50	4	.03
CSM0900804	8		8	60	4	.03
CSM0901004	10		10	75	4	.03

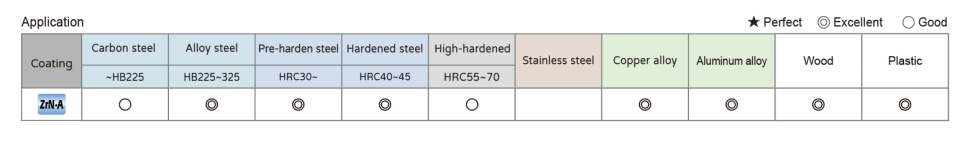

Coating Options
- ZrN-A (.03): for Stainless Steel, Titanium
With different coatings, it can be used on general steel, stainless steel and titanium alloy, etc.

Specification & Cutting Condition  Download



What is the use of chamfer mills?

Chamfer Mills are designed for deburring, beveling, countersinking, and chamfering in machining operations. They also enhance tool life and finishing for profiling. Many machining operations leave a burr or sharp edge on the workpiece, making chamfer mills one of the common tools for addressing this issue. They are used for standard chamfering operations, deburring, chamfering in small grooves and holes, and can be employed on CNC or manual milling machines.

Purchase 45°, 60°, 90°, 120° angle Chamfer Mills from Speed Tiger, one of the leading carbide end mill manufacturers in Taiwan. Our Chamfer Mills series products all offer ALTIBN and AlTiSiN Coating, designed to improve wear and heat resistance.





Chamfer Mills are designed for deburring, beveling, countersinking, and chamfering in machining operations. They also enhance tool life and finishing for profiling. Many machining operations leave a burr or sharp edge on the workpiece, making chamfer mills one of the common tools for addressing this issue. They are used for standard chamfering operations, deburring, chamfering in small grooves and holes, and can be employed on CNC or manual milling machines.
