Multi Flutes High Efficiency End Mill
Product Number：KKH, KKM,KKF, KKR
█Features: ①The characteristic of KK endmill is 2 flutes with 4, 3 flutes with 6 teeth, 4 flutes with 8 teeth, 5 flutes with 10 teeth. Geometric appearance of endmill creates longer tooling life, low vibration, high feed rate, and smooth surface. ②Low vibration and cutting flute sharpness with more lasting edge make a
contribution to improvement of surface accuracy. ③High performance, High efficient, double tooling life, saving time and cost.
█Application: ~HRC60/ Iron, Carbon steel, Cast Iron, Alloy Steel, Tool Steel, Heat treatment Steel, Welding Steel
-
Features
Patent of Germany No:Nr.20 2006 014 089.1
Apply in the multinational patent.
Patent of Japan No:Nr.3145278
Apply in the multinational patent.
Patent of China No:ZL 2006 2 0124295.4
Apply in the multinational patent.
Patent of Taiwan No:M 303075
Apply in the multinational patent.

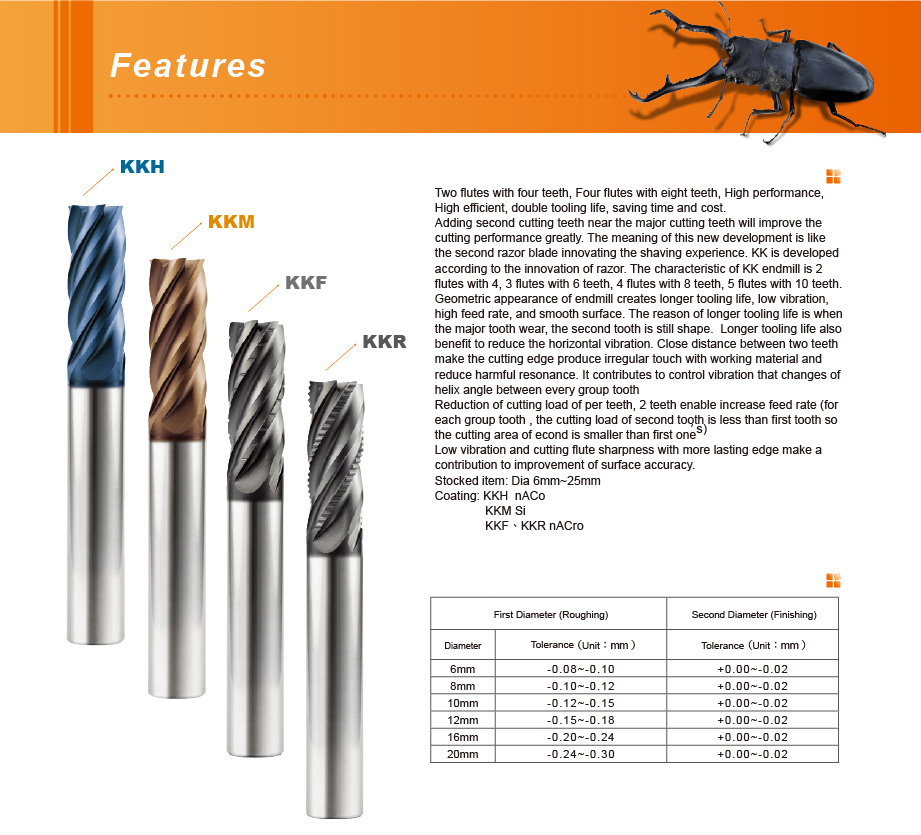

Features
Two flutes with four teeth, Four flutes with eight teeth, High performance, High efficient, double tooling life, saving time and cost. Adding second cutting teeth near the major cutting teeth will improve the cutting performance greatly. The meaning of this new development is like the second razor blade innovating the shaving experience. KK is developed according to the innovation of razor. The characteristic of KK endmill is 2 flutes with 4, 3 flutes with 6 teeth, 4 flutes with 8 teeth, 5 flutes with 10 teeth. Geometric appearance of endmill creates longer tooling life, low vibration, high feed rate, and smooth surface. The reason of longer tooling life is when the major tooth wear, the second tooth is still shape. Longer tooling life also benefit to reduce the horizontal vibration. Close distance between two teeth make the cutting edge produce irregular touch with working material and reduce harmful resonance. It contributes to control vibration that changes of helix angle between every group tooth .
Reduction of cutting load of per teeth, 2 teeth enable increase feed rate (for each group tooth , the cutting load of second tooth is less than first tooth so the cutting area of econd is smaller than first ones)
Low vibration and cutting flute sharpness with more lasting edge make a contribution to improvement of surface accuracy.
Stocked item: Dia 6mm~25mm
Coating:- KKH nACo
- KKM Si
- KKF, KKR nACro
First Diameter (Roughing) Second Diameter (Finishing) Diameter Tolerance (Unit:mm) Tolerance (Unit:mm) 6mm -0.08~-0.10 +0.00~-0.02 8mm -0.10~-0.12 +0.00~-0.02 10mm -0.12~-0.15 +0.00~-0.02 12mm -0.15~-0.18 +0.00~-0.02 16mm -0.20~-0.24 +0.00~-0.02 20mm -0.24~-0.30 +0.00~-0.02
-
Spec. Download
Series Introduction Download
For detailed cutting condition, please contact us, thank you. (sale@speedtiger.com.tw)
Type Mode Flutes Diameter Photo Dimension Cutting Condition Roughing & Finishing Type KKH 2 / 3 / 4 2Flutes-6mm~25mm
3Flutes-6mm~25mm
4Flutes-10mm~25mm

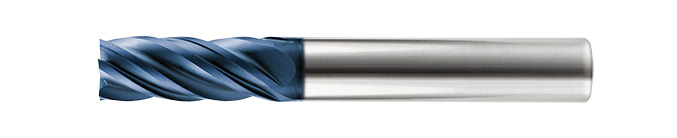

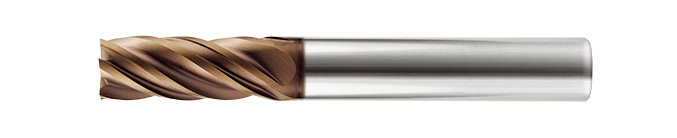

Download Download Roughing & Finishing Type KKM 2 / 3 / 4 2Flutes-6mm~25mm
3Flutes-6mm~25mm
4Flutes-10mm~25mm

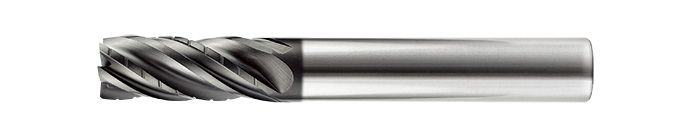

Download Download Roughing & Finishing Type KKF 2 / 3 6mm~20mm
Download Download

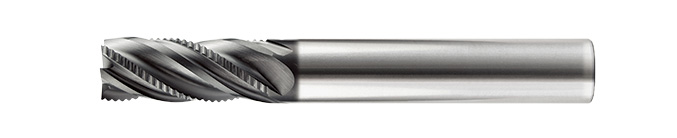

Roughing & Finishing Type KKR 2 / 3 6mm~25mm
Download
Download
-
-
-
