PRODUCTS

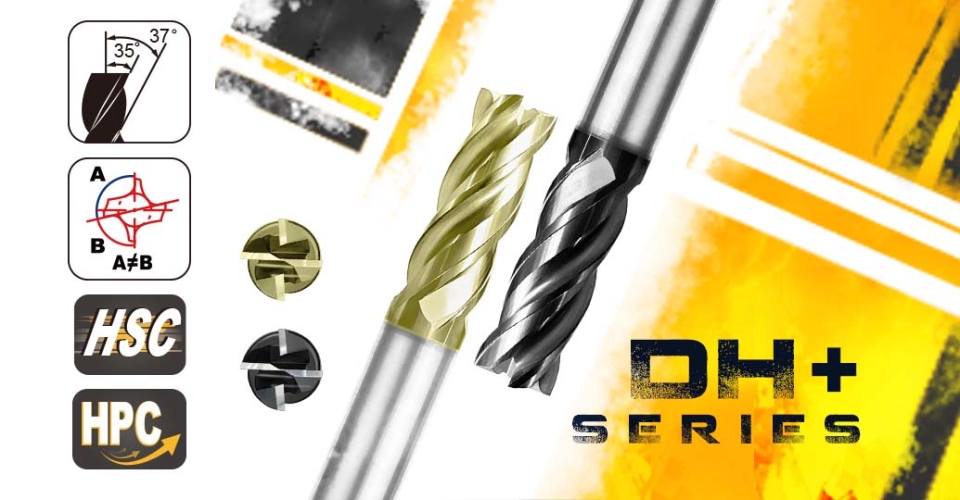

DH+ - Slotting Milling Reinforcement (Hard material)
Product Number:DH+, DHS+
█Features:①The long edge passes through the center edge, the end tooth has a large chip removal space and the geometric design is aimed at slot machining and ramp milling. ②The helix angle ranging from 35/38° is an excellent anti-vibration effect, suitable for high-speed and high-efficiency machining of steel and cast iron. ③Unequal flute spacing design can reduce vibration and prolong life. ④The eccentric relief angle can increase the strength of the blade, stabilize and high-efficiency feed, and life.
█Application: Excel at working carbon steels (~HB225), alloy steels (HB225~325), pre-hardened steels (up to HRC45), hardened Steels (HRC40~45), cast iron, stainless steel.
-
Features
- The long edge passes through the center edge, the end tooth has a large chip removal space and the geometric design is aimed at slot machining and ramp milling.
- The helix angle ranging from 35/38° is an excellent anti-vibration effect, suitable for high-speed and high-efficiency machining of steel and cast iron.
- Unequal flute spacing design can reduce vibration and prolong life.
- The eccentric relief angle can increase the strength of the blade, stabilize and high-efficiency feed, and life.
Coating Options Speed Tiger is not only the largest cutting tools manufacturer, but also the first one that combined milling cutter coating technology in Taiwan. We provide a variety of coating types for different application, you could easily choose the most suitable coating for your work. For detailed coating information, please refer to next tab.
Package & Shipping
Delivery :
Generally, it is 5-7 days if the goods are in stock.
It is 15-20 days if the goods are not in stock, it is according to quantity.
http://www.speedtigertools.com/inquiry/ -

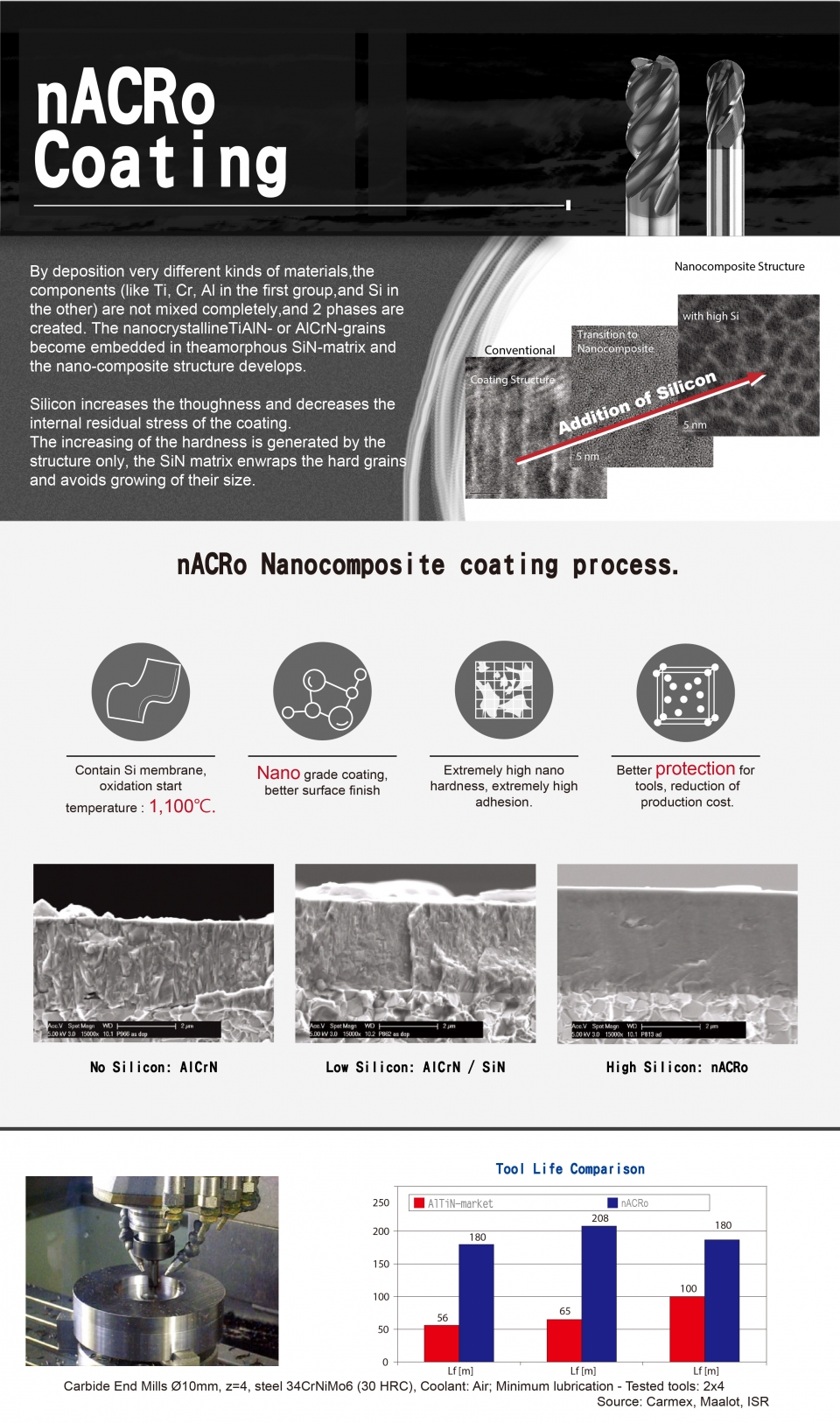

nACRo Coating

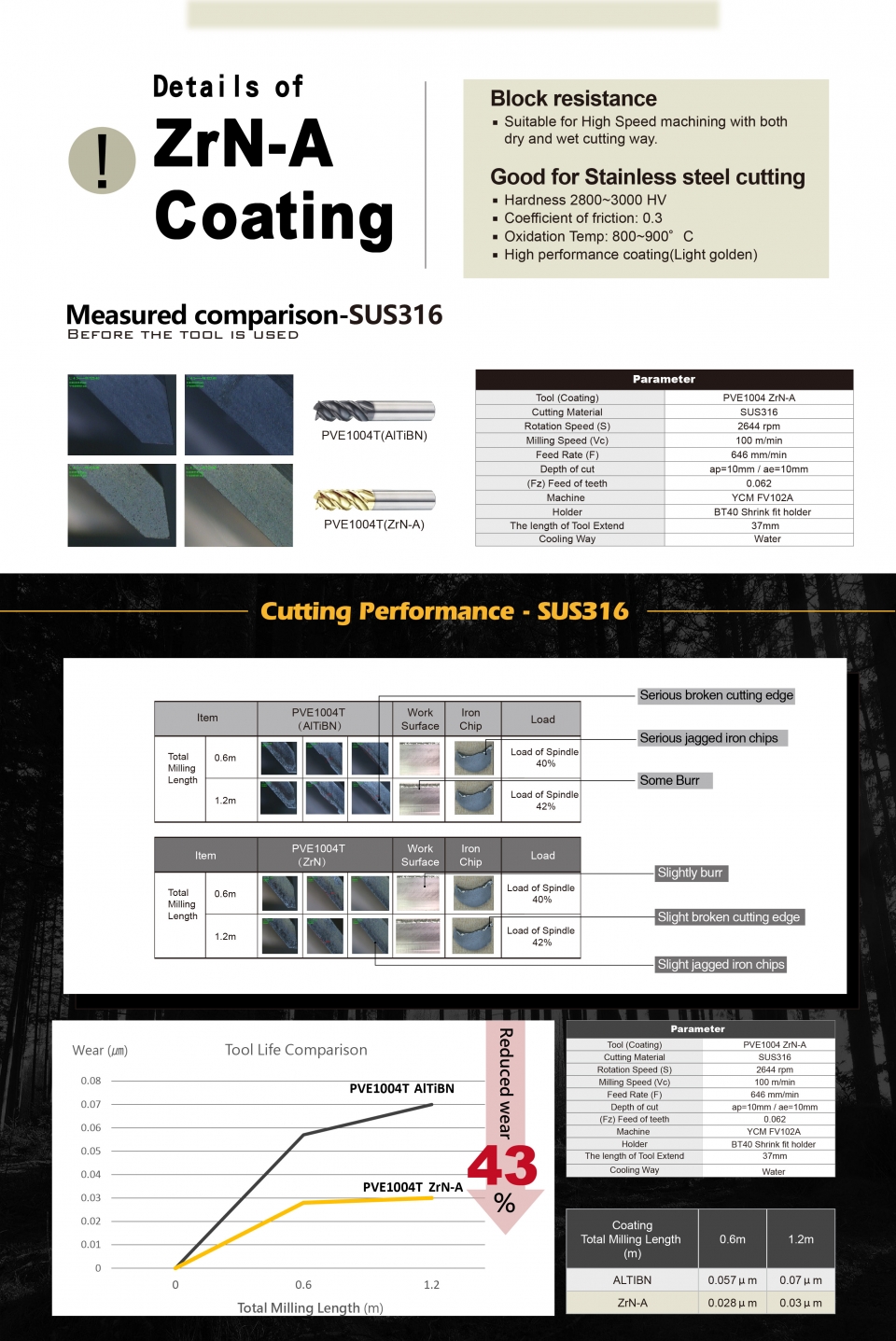

ZrN-A Coating
-
Shape Flute Type Mode Diameter Photo Spec. & Cutting Condition Square 4 dX1.5 DHS+ 3.0mm~20.0mm
DownloadSquare 4 dX2.5 DH+ 4.0mm~20.0mm -
-
