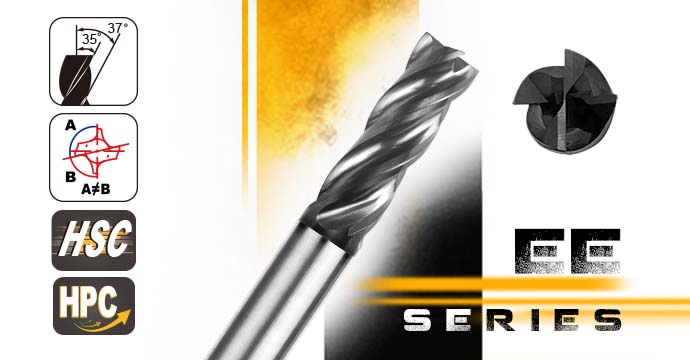

EE - Plunge Milling

Product Number：EES, EE

█Features:①Drill-type Groove & Unequal Helix Angle design have excellent chip removal and anti-vibration effects for high-speed and high-efficiency machining. ②Eccentric Relief Angle improves the strength of the cutting edge, the surface optimization of the cutting edge can stabilize high-efficiency feed and life. ③ Large space for chip removal in the center of the end face and end teeth. Good geometric design can be used for drilling and milling. ④ Unequal Flute Spacing Design can reduce vibration and prolong life. █Application: Excel at working carbon steels (~HB225), alloy steels (HB225~325), pre-hardened steels (up to HRC45), hardened Steels (HRC40~45), stainless steel.

Add Inquiry

Features Coating Specification Cutting Video Contact Us

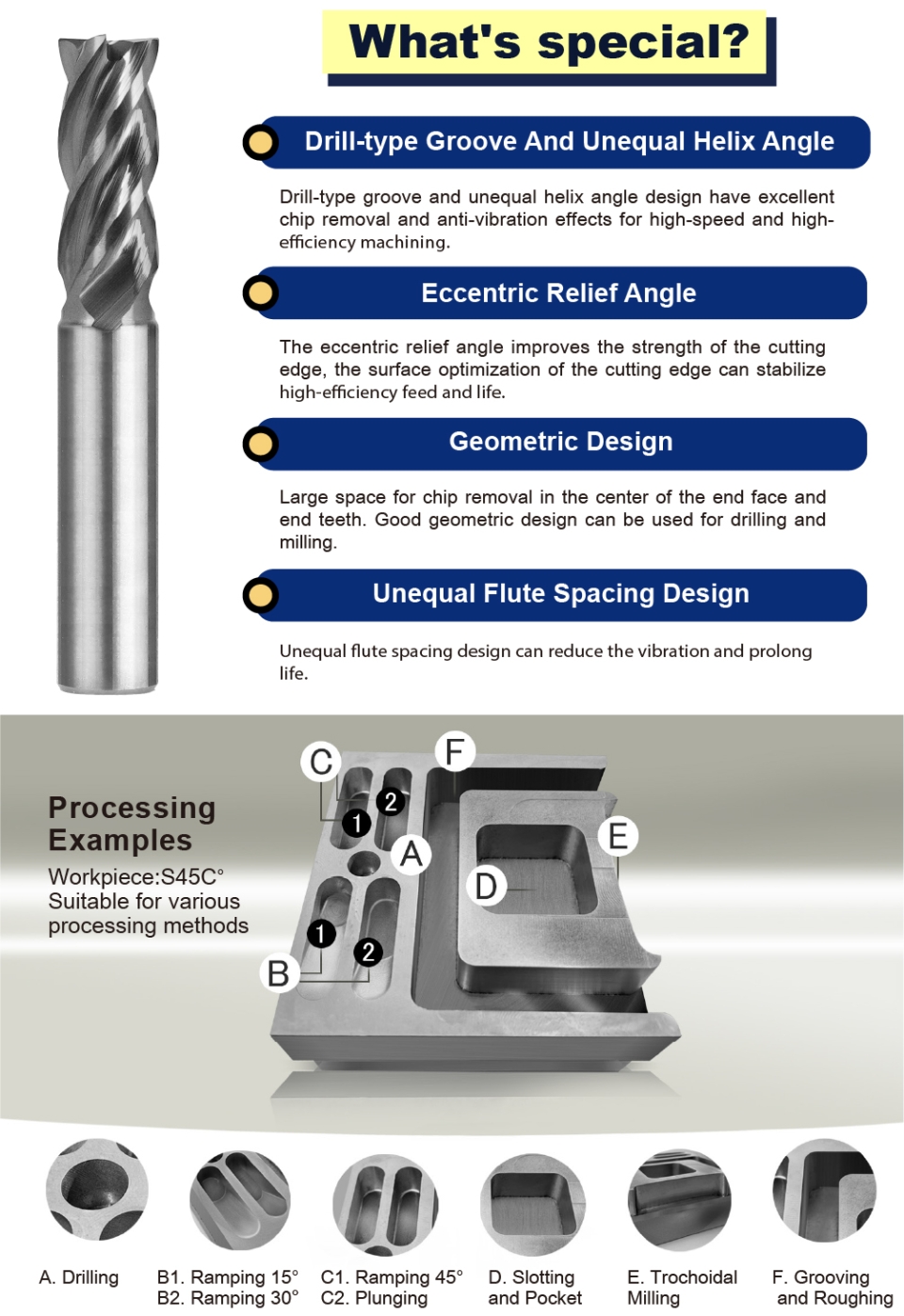

Features

1. Drill-type Groove And Unequal Helix Angle

Drill-type groove and unequal helix angle design have excellent chip removal and anti-vibration effects for high-speed and high-efficiency machining.

2. Eccentric Relief Angle

The eccentric relief angle improves the strength of the cutting edge, the surface optimization of the cutting edge can stabilize high-efficiency feed and life.

3. Geometric Design

Large space for chip removal in the center of the end face and end teeth. Good geometric design can be used for drilling and milling.

4. Unequal Flute Spacing Design

Unequal flute spacing design can reduce vibration and prolong life.

Package & Shipping

Delivery :
Generally, it is 5-7 days if the goods are in stock.
It is 15-20 days if the goods are not in stock, it is according to quantity.

http://www.speedtigertools.com/inquiry/

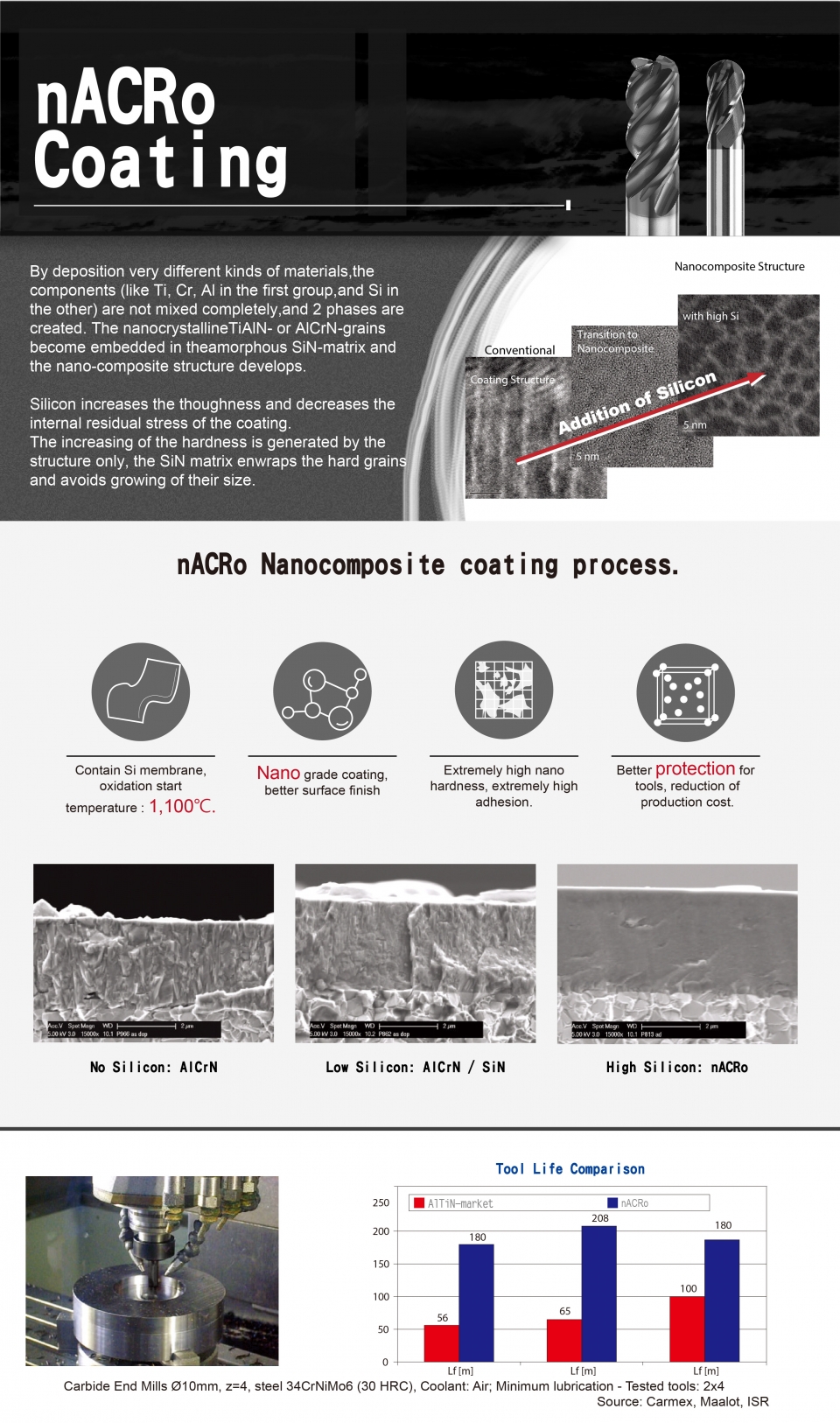

nACRo Coating

nACRo Nanocomposite coating process

By deposition very different kinds of materials,the components (like Ti, Cr, Al in the first group,and Si in the other) are not mixed completely, and 2 phases are created. The nanocrystalline TiAlN- or AlCrN-grains become embedded in theamorphous SiN-matrix and the nano-composite structure develops.
Silicon increases the thoughness and decreases the internal residual stress of the coating. The increasing of the hardness is generated by the structure only, the SiN matrix enwraps the hard grains and avoids growing of their size.
- Contain Si membrane, oxidation start temperature : 1,100℃.
- Nano grade coating, better surface finish
- Extremely high nano hardness, extremely high adhesion.
- Better protection for tools, reduction of production cost.
Carbide End Mills Ø10mm, z=4, steel 34CrNiMo6 (30 HRC), Coolant: Air; Minimum lubrication
- Tested tools: 2x4 - Source: Carmex, Maalot, ISR

Shape	Flute	Type	Mode	Diameter	Photo	Spec. & Cutting Condition
Square	4	dX1.5	EES	3.0mm~12.0mm		Download
Square	4	dX2~2.5	EE	3.0mm~12.0mm		Download
